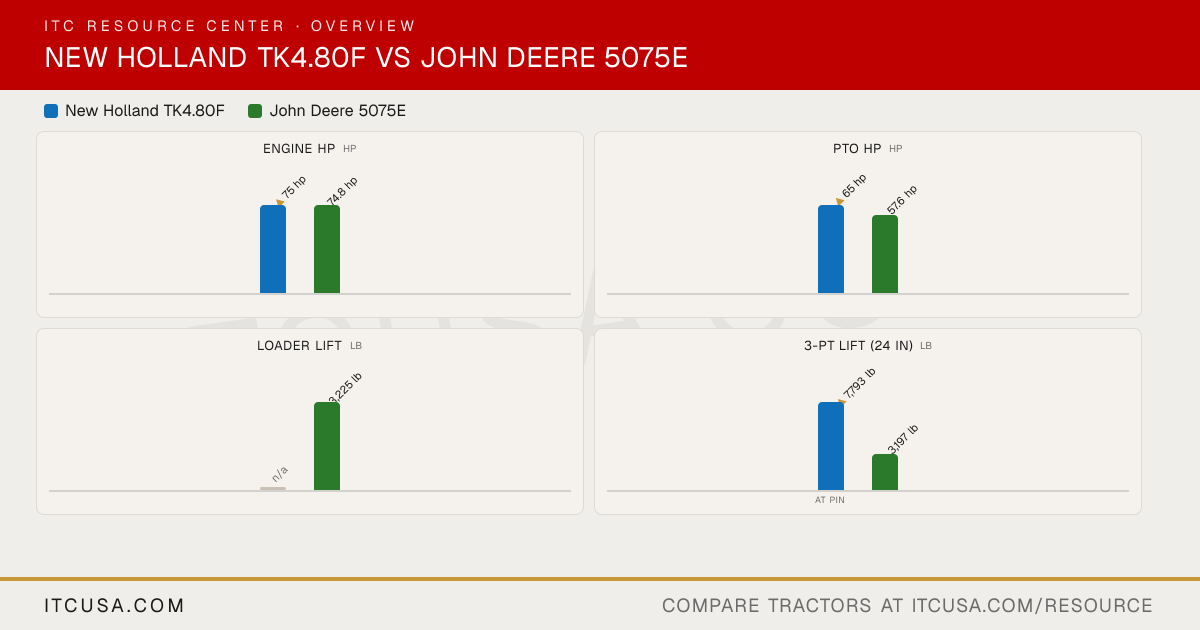

▶ EnginePTO Power 65 hp 57.6 hp Alternator Not Published 60 A, 12 V Air Cleaner Not Published Dry type air cleaner with safety element Engine Type Turbocharged intercooled diesel Diesel, turbocharged and aftercooled Fuel System High pressure Common Rail Electronically controlled, high-pressure common rail Displacement 207 in³ 179 in³ No. of Cylinders 4 3 Rated Engine Speed 2300 rpm 2100 rpm Cooling System Type Liquid-cooled Liquid-cooled Engine Manufacturer FPT Industrial John Deere PowerTech 3029 EWR Engine Power (Gross) 75 hp 74.8 hp @ 100 rpm Engine Emissions Constraints Tier 4A / Stage IIIB CEGR Tier 4 ▶ WeightWeight with ROPS and Loader Not Applicable Not Published Weight with Cab and Loader Not Applicable Not Published ▶ WarrantyWarranty Length & Coverage Not Published 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ HydraulicsPump Type Not Published Tandem gear pump (implement + steering) Steering Flow Not Published 6.8 gpm Implement Flow 9.4 gpm 11.4 gpm Total Hydraulic Flow Not Published 18.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 11.4 gpm at a single rear SCV Overall Hydraulic Pump Flow Not Published 18.2 gpm No. of Optional Remote Valves 4 2 No. of Standard Remote Valves Not Published 1 ▶ PTO & HitchPTO Rear 540/540E (Std); 540/1000 (Opt) 540 @ 2083 engine rpm; 540E @ 1588 engine rpm PTO Type Fully independent Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser) Lift Control Type Lift-O-Matic Position and draft control; adjustable rate of drop Hitch Lift Capacity 7,793 lb 3,968 lb @ hitch points Mid-PTO Availability Not Applicable Not Applicable Category, 3-Point Hitch Not Published Category II; convertible to Category I Hitch Lift Capacity (at 24”) Not Published 3,197 lb @ 24 in behind hitch balls ▶ Tire OptionsR3 Turf - Rear Not Applicable 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) R3 Turf - Front Not Applicable 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) Tire Size & Options Not Applicable R1 Ag / R3 Turf / R4 Industrial / Snow R4 Industrial - Rear Not Applicable 4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 R4 Industrial - Front Not Applicable 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 R1 Agricultural - Rear Not Applicable 14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W R1 Agricultural - Front Not Applicable 9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W ▶ Fluid CapacityCoolant Capacity Not Published Open operator station: 2.85 gal; Cab: 3.08 gal Crankcase Capacity Not Published 9.0 qt (with filter) Fuel Tank Capacity 21.1 gal Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal) Front Axle Fluid Capacity Not Applicable DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side Transmission / Hydraulic System Capacity Not Published 8.36 gal (9x3); 9.46 gal (12x12) ▶ Loader & AttachmentsLoader Lift Height Not Applicable 124 in Loader Breakout Force Not Applicable 4,354 lb (measured at pivot) Quick Attach Loader System Not Applicable Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes) Loader Lift Capacity (Full Height) Not Applicable 3,225 lb (measured at pivot) ▶ Transmission & DrivetrainClutch Not Published Dual clutch, 11 in (PowrReverser) No. of Speeds 8F/8R 9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser) Transmission Type Mechanical forward-reverse shuttle SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional) Max Travel Speed (Forward) 6.8 mph 15.5 mph (SyncShuttle); 20.5 mph (PowrReverser) Max Travel Speed (Reverse) 6.8 mph 14.2 mph (SyncShuttle); 22.3 mph (PowrReverser) Differential Lock & Limited Slip Options Not Applicable Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsBrakes Not Published Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting) Steering Steering-O-Matic; Steering-O-Matic Plus (optional) Hydrostatic power steering Frame Type Not Published Not Published Front Axle Type Not Applicable 2WD (standard) or MFWD (optional) Drawbar Capacity 1,323 lb vertical load 1,675 lb (fully extended); 2,470 lb (short position) Front Axle Rating Not Applicable Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire) Seat Suspension & Adjustability Air suspended seat (optional) Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment ▶ Dimensions & ManeuverabilityWheelbase 52.8 in 80.7 in Overall Width 55.1-57.1 in (1400-57.1 in) Not Published Ground Clearance Not Published Not Published Height to Top of ROPS 94.1 in Not Published Height to Top of Cab Model Not Applicable Not Published Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published 137.8 in (2WD); 183.1 in (4WD) Overall Length with 3-Point Hitch 137.6 in 143.3 in
