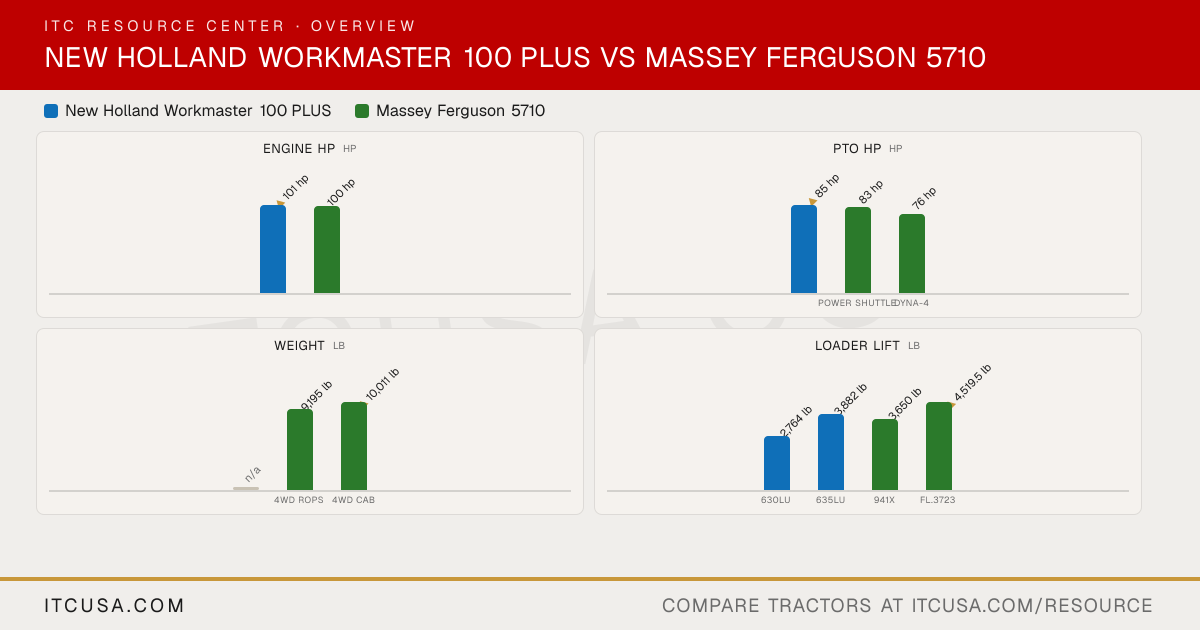

▶ EngineEngine Manufacturer FPT AGCO Power Engine Model F36 44 AWFC Engine Type 4-cylinder 4-cylinder, intercooled turbocharged, liquid-cooled diesel No. of Cylinders 4 4 Displacement Not Published 268.5 in³ Rated Engine Speed Not Published 2200 rpm Engine Power (Gross) 101 hp 100 hp PTO Power 85 hp Power Shuttle: 83 hp; Dyna-4: 76 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid cooled Air Cleaner Not Published Not Published Fuel System Not Published High-pressure common-rail direct injection (HPCR) Alternator Not Published 120 A, 12 V ▶ HydraulicsPump Type Not Published Two high-pressure gear pumps Implement Flow Not Published 15.1 gpm Steering Flow Not Published Not Published Total Hydraulic Flow 21 gpm 25.9 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published 26 gpm No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 38.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Not Published Independent, electro-hydraulic engagement via switch PTO Rear Not Published 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) Not Published 7,710 lb Lift Control Type Not Published Electronic linkage control (ELC) ▶ Transmission & DrivetrainTransmission Type 12x12 electronic power shuttle Power Shuttle: 12F x 12R, 2-range with electrohydraulic shuttle lever; Dyna-4: 16F x 16R powershift No. of Speeds 12 forward / 12 reverse Power Shuttle: 12 forward, 12 reverse; Dyna-4: 16 forward, 16 reverse Max Travel Speed (Forward) Not Published 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Single-plate wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Not Published Rear differential lock engaged via electrohydraulic rocker switch; Hydra-Lock hydraulic front axle differential lock on 4WD ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power steering; cab: tilt and telescopic column, platform: tilt column Brakes Not Published Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Air ride seat (standard); instructor seat available Cab: air-ride swivel seat; platform: mechanical spring suspension seat with armrests Front Axle Type Class 1.0 HD heavy-duty front axle Heavy-duty 4WD front axle: cast steel, fixed, center drive line, planetary final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published Not Published Overall Width Not Published 64.8 in Wheelbase Not Published 95.7 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Not Published 4WD ROPS: 9,195 lb; 4WD Cab: 10,011 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Rear: 460/85R34 standard radial R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 630LU; 635LU 941X; 946X; FL.3723; FL.3819 Loader Lift Height Not Published 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in Loader Lift Capacity (Full Height) Not Published 941X: 3,650 lb; FL.3723: 4,519.5 lb Loader Breakout Force Not Published FL.3723: 5,818.6 lb; FL.3819: 4,892.9 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
