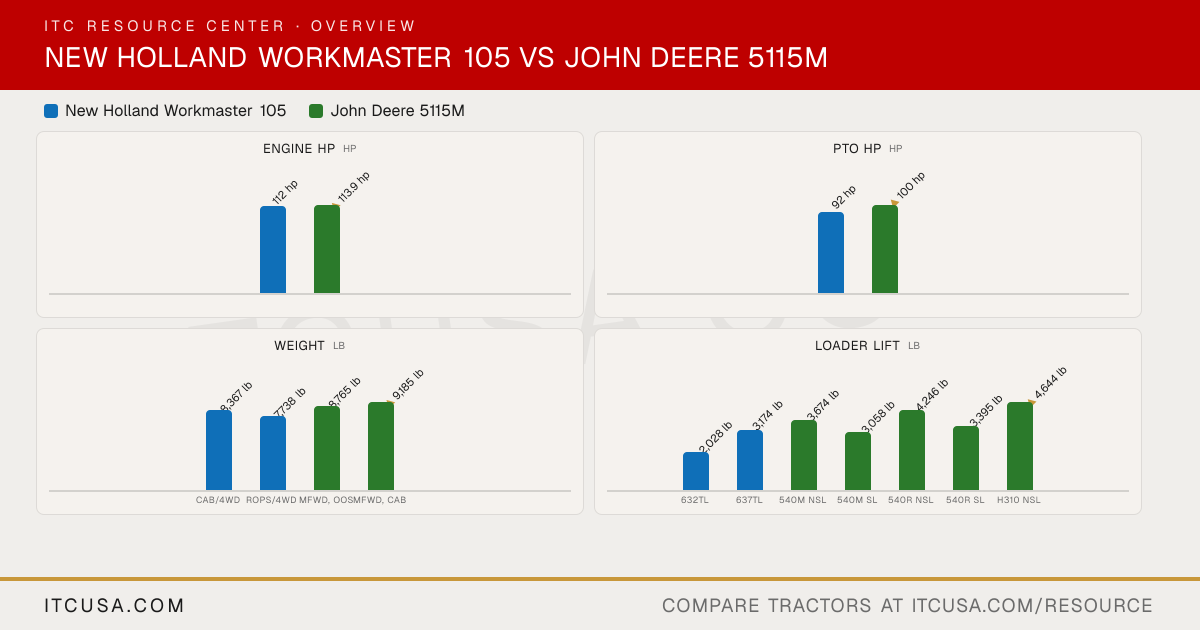

▶ EngineEngine Manufacturer FPT John Deere Engine Model F5 PowerTech 4045 PWL Engine Type Turbocharged 4-cylinder diesel Diesel, turbocharged, air-to-air aftercooled No. of Cylinders 4 4 Displacement 207 in³ 276 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 112 hp 113.9 hp PTO Power 92 hp 100 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled (Cool-Gard II coolant) Air Cleaner Not Published Dry air cleaner, primary and secondary elements Fuel System Not Published High Pressure Common Rail (HPCR) electronic fuel injection Alternator 120 A OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V ▶ HydraulicsPump Type Not Published Tandem gear pump Implement Flow 16.9 gpm (21.6 gpm optional) 18.4 gpm Steering Flow 9.7 gpm 6.3 gpm Total Hydraulic Flow 26.6 gpm (16.9 + 9.7, computed) 24.7 gpm Overall Hydraulic Pump Flow 26.6 gpm (16.9 + 9.7, computed) 24.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 or 3 2 (rear, Dual SCV) No. of Optional Remote Valves Not Published Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions ▶ Fluid CapacityFuel Tank Capacity ROPS: 24 gal; Cab: 29 gal OOS: 37.2 gal; Cab: 44.9 gal Coolant Capacity Not Published OOS: 5.2 gal; Cab: 5.8 gal Crankcase Capacity Not Published 3.4 gal Transmission / Hydraulic System Capacity Not Published 10.4 gal Front Axle Fluid Capacity Not Published Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal ▶ PTO & HitchPTO Type Wet clutch PTO with electro-hydraulic engagement Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional PTO Rear 540 (base); 540/540E or 540/1000 (optional) 540/540E rpm standard; 1000 rpm optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II/I Category II (convertible to I) Hitch Lift Capacity Not Published 5,305 lb standard; 6,114 lb optional Hitch Lift Capacity (at 24”) 3,200 lb (6,200 lb with optional ram) 5,159 lb standard; 5,954 lb optional Lift Control Type Lift-O-Matic 3-point quick raise system Mechanical or electrohydraulic (draft control) ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus No. of Speeds 12F/12R 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) Max Travel Speed (Forward) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Max Travel Speed (Reverse) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Clutch Not Published Wet Differential Lock & Limited Slip Options Not Published Electro-hydraulic rear differential lock, engage on the go ▶ Chassis, Steering & ControlsFrame Type Not Published Cast iron mid-frame Steering Power steering Not Published Brakes Wet disc Not Published Seat Suspension & Adjustability Cab: cloth air-suspension seat with fold-back instructor seat; ROPS: vinyl air-suspension seat OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb Front Axle Type 4WD front axle, electro-hydraulic engagement (standard) MFWD Front Axle Rating Not Published 6,613 lb (MFWD, max permissible front axle load) Drawbar Capacity Not Published Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 161.1 in (4WD) 149.5 in Overall Width Not Published Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Wheelbase Cab: 88.9 in; ROPS: 83.7 in 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 103.0 in 102.1 in Height to Top of ROPS (folded) Low-Profile ROPS: 68.4 in to ROPS pivot (500/60-22.5 R1 tires); 71.9 in (19.5L24 R4 tires) Not Published Height to Top of Cab Model 105.4 in 102.9 in ▶ WeightTractor Weight (Base) Cab/4WD: 8,367 lb; ROPS/4WD: 7,738 lb MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (2WD not offered on 5115M) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 agricultural, R3 turf or R4 industrial Not Published R1 Agricultural - Front 12.4x24 (with 18.4x30 rear); 11.2-24 (with 16.9-30 rear); 11.5/80-18 (with 500/60-22.5 low-profile rear) 12.4R24 (320/85R24) R1W Radial R1 Agricultural - Rear 18.4x30 (standard); 16.9-30 or 500/60-22.5 low-profile (optional) 18.4R30 (460/85R30) R1W Radial R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80-18 Not Published R4 Industrial - Rear 19.5L24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style (84 in bucket standard); Euro-style quick attach available Not Published Loader Model 632TL (NSL); 637TL (MSL) 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Loader Lift Height 632TL: 134.5 in; 637TL: 134.5 in 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Loader Lift Capacity (Full Height) 632TL: 2,028 lb; 637TL: 3,174 lb (at 31.5 in from bucket pivot pin to max height) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Loader Breakout Force Not Published 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published 24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term)
