New Holland Workmaster 120 PLUS vs New Holland TS6.120 | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
2 of 4 selected
n/a
NewHollandWorkmaster120PLUS
n/a
NewHollandTS6.120
Comparison loaded for 2 tractors.

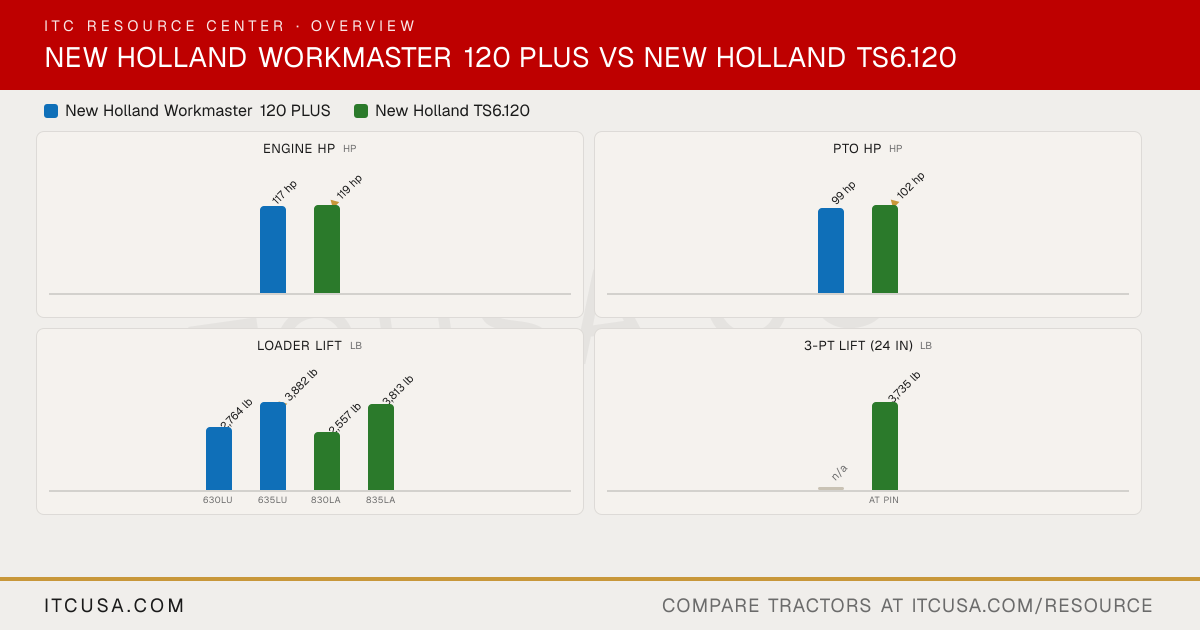

The headline numbers at a glance.
New Holland Workmaster 120 PLUSNew Holland TS6.120
Every published spec, side by side, including the details the graphs above don't chart.
Spec
New HollandWorkmaster 120 PLUS
New HollandTS6.120
Engine Manufacturer
FPT
FPT
Engine Model
F36
NEF
Engine Type
4-cylinder
4-cylinder, 16-valve, turbocharged, air-to-air intercooled diesel with high-pressure common rail
No. of Cylinders
4
4
Displacement
Not Published
274 in³
Rated Engine Speed
Not Published
2200 rpm
Engine Power (Gross)
117 hp
119 hp
PTO Power
99 hp
102 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Not Published
Not Published
Air Cleaner
Not Published
Not Published
Fuel System
Not Published
High-pressure common rail fuel injection
Alternator
Not Published
120 A
Pump Type
Not Published
Fixed displacement pumps (steering, implement, auxiliary) with combining/diverter valve
Implement Flow
Not Published
19 gpm (combined implement and auxiliary pump flow)
Steering Flow
Not Published
9 gpm
Total Hydraulic Flow
21 gpm
28 gpm
Overall Hydraulic Pump Flow
Not Published
28 gpm
Hydraulic System Type
Not Published
Fixed displacement pumps with combining/diverter valve; deluxe closed-center rear remote valves with flow control
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
34.3 gal
57.5 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Not Published
Not Published
PTO Rear
Not Published
540/1000 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Not Published
Category II (flex link ends)
Hitch Lift Capacity
Not Published
3,735 lb (ASAE); 5,499 lb with one optional auxiliary lift cylinder; 7,326 lb with two
Hitch Lift Capacity (at 24”)
Not Published
Not Published
Lift Control Type
Not Published
Not Published
Transmission Type
12x12 electronic power shuttle
8x8 synchronized power shuttle (hydraulic, left-hand) standard; 16x8 Dual Power synchronized hydraulic shuttle with Hi-Lo (premium); 10:1 creeper optional; High-Clearance: 8x8 synchronized with left-hand mechanical shuttle (hydraulic shuttle optional)
No. of Speeds
12 forward / 12 reverse
8F/8R (base); 16F/8R (premium Dual Power with Hi-Lo); High-Clearance: 8F/8R
Max Travel Speed (Forward)
Not Published
19 mph or 25 mph (25 mph 4WD only)
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Not Published
Not Published
Brakes
Not Published
High-Clearance: internal wet brakes (external drop-box final drive rear axle)
Seat Suspension & Adjustability
Air ride seat (standard); instructor seat available
Mechanical suspension seat standard; deluxe air suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab)
Front Axle Type
Class 1.0 HD heavy-duty front axle
4WD heavy-duty front axle, Standard Duty Class 3 (4WD only, cab or ROPS); High-Clearance: 4WD with electro-hydraulic on-the-go engagement, 72 to 84 in adjustable front tread
