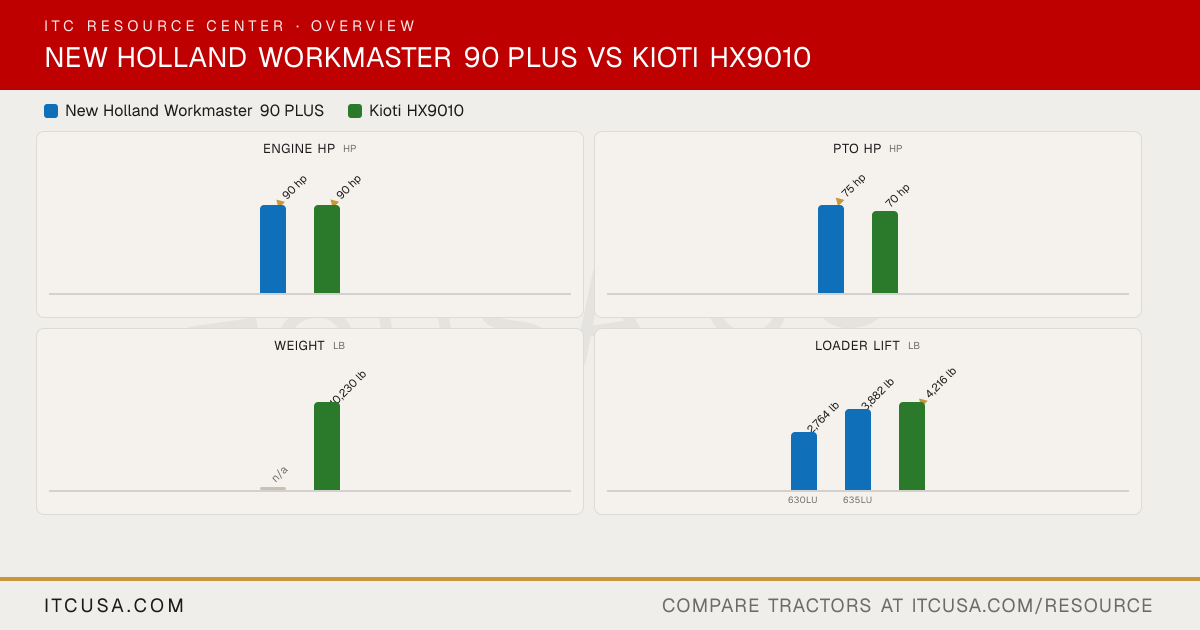

▶ EngineEngine Manufacturer FPT KIOTI (Daedong) Engine Model F36 4J243TA-TP5B Engine Type 4-cylinder In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4J243TA-TP5B) No. of Cylinders 4 4 Displacement Not Published 233.9 in³ Rated Engine Speed Not Published 2200 rpm Engine Power (Gross) 90 hp 90 hp PTO Power 75 hp 70 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Not Published Water-cooled Air Cleaner Not Published Dry element with evacuator valve Fuel System Not Published Common Rail Direct Injection (CRDI) Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Gear Implement Flow Not Published 19.8 gpm Steering Flow Not Published 12.2 gpm Total Hydraulic Flow 21 gpm 32 gpm Overall Hydraulic Pump Flow Not Published 32 gpm Hydraulic System Type Not Published Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 3 No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 47.6 gal Coolant Capacity Not Published 4.6 gal Crankcase Capacity Not Published 3.9 gal Transmission / Hydraulic System Capacity Not Published 20.34 gal Front Axle Fluid Capacity Not Published 2.6 gal ▶ PTO & HitchPTO Type Not Published Independent PTO Rear Not Published 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published 8,079 lb Hitch Lift Capacity (at 24”) Not Published 8,002 lb Lift Control Type Not Published Electronic control ▶ Transmission & DrivetrainTransmission Type 12x12 electronic power shuttle Power Shuttle w/ Hi-Lo Shift No. of Speeds 12 forward / 12 reverse 24 forward / 24 reverse Max Travel Speed (Forward) Not Published 23.83 mph Max Travel Speed (Reverse) Not Published 23.67 mph Clutch Not Published Wet Multi Disc Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock (standard); front limited-slip differential ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Hydrostatic Power Steering Brakes Not Published Wet Multi Disc Seat Suspension & Adjustability Air ride seat (standard); instructor seat available Heated air suspension seat, 20 degree swivel both directions, adjustable fore/aft Front Axle Type Class 1.0 HD heavy-duty front axle 4WD with outboard planetary final drives and limited-slip differential Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Max. Drawbar vertical load: 3,307 lb; Max. Trailer loading weight: 9,921 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 170.8 in Overall Width Not Published 88.6 in Wheelbase Not Published 94.9 in Ground Clearance Not Published 18.9 in Min. Turn Radius without Brakes Not Published 12.7 ft (with brake applied) Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 111.9 in ▶ WeightTractor Weight (Base) Not Published 10,230 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural (bias 13.6-24 / 18.4-34, radial 13.6R-24 / 18.4R-34); R14 radial (340/85R24 / 460/85R34) R1 Agricultural - Front Not Published 13.6-24 R1 Agricultural - Rear Not Published 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published KL1155: quick-attach system with built-in parking stand; single-lever joystick control with float; bucket level indicator Loader Model 630LU; 635LU KL1155 Loader Lift Height 143.9 in (630LU and 635LU) KL1155: 150.6 in (to pivot pin) Loader Lift Capacity (Full Height) 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, 31.5 in forward of the bucket pivot point) KL1155: 4,216 lb (at pivot pins) Loader Breakout Force Not Published KL1155: 8,554 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage Not Published Tractors (Non-Commercial): 24 months parts & labor, unlimited hours, 0% deductible; powertrain (engine and driveline): 48 months unlimited hours on HX Series
