Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

RuralKingRK24

—

BadBoy1025

Comparison loaded for 2 tractors.

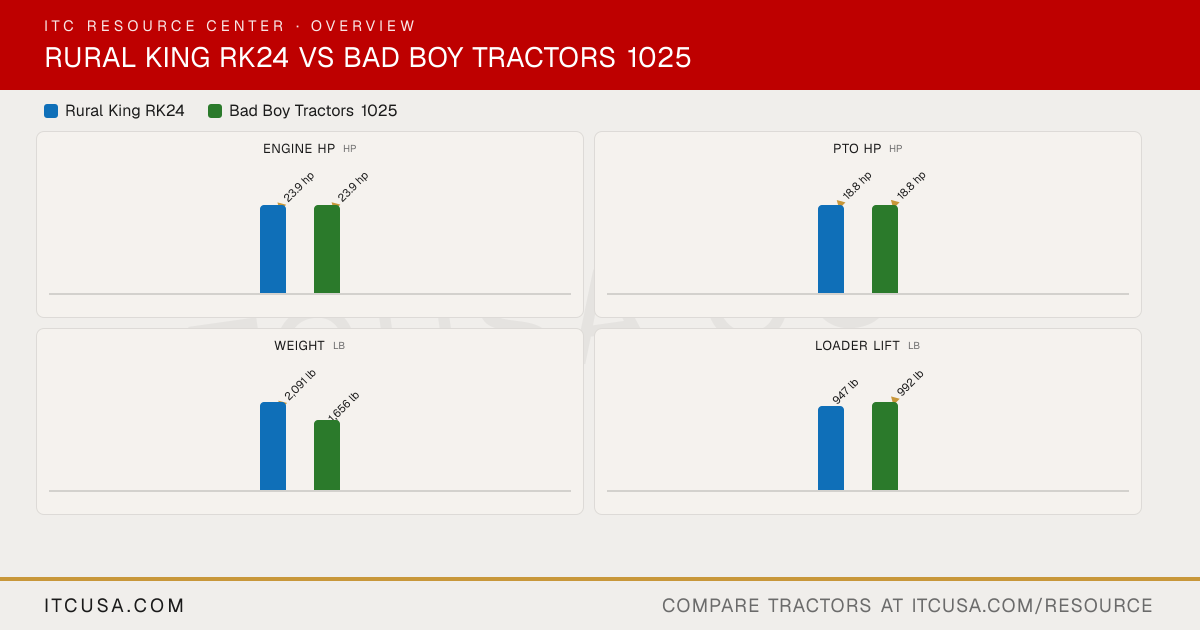

The headline numbers at a glance.

Rural King RK24Bad Boy Tractors 1025

Engine HPhp

▲23.9 hp

PTO HPhp

▲18.8 hp

Weightlb

▲2,091 lb

1,656 lb

Loader Liftlb

947 lb

▲992 lb

3-Pt Lift (24 in)lb

▲1,323 lb

1,101 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Rural KingRK24	Bad Boy Tractors1025


PTO Power	18.8 hp	18.8 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Single element	Dry Element
Engine Type	Water cooled, 4-cycle Diesel	Water cooled 4 cycle, 3 cylinder diesel
Fuel System	Indirect Fuel Injection	Indirect Injection
Displacement	77.3 in³	77.3 in³
Engine Model	3TNV80F-SDKTFF	—
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Water cooled, forced circulation	Water cooled, Forced circulation
Engine Manufacturer	Yanmar	YANMAR
Engine Power (Gross)	23.9 hp	23.9 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	2,091 lb	1,610 lb
Weight with Cab and Loader	Not Published	Not Applicable
Tractor Weight (Base)	—	1,656 lb

Warranty Length & Coverage	Full-machine: 24 months/2,000 hours; Powertrain: 96 months/3,000 hours (whichever comes first)	Engine & Powertrain: 84 months (7 years) or 2,000 hours

Pump Type	Gear Pump	Gear pump
Steering Flow	Not Published	2.8 gpm
Implement Flow	Not Published	4.2 gpm
Total Hydraulic Flow	6.95 gpm	7.0 gpm
Hydraulic System Type	Hydrostatic	Power Assisted Hydro-Static
Rear Remote Hydraulic Flow	Not Published	Not Applicable
Overall Hydraulic Pump Flow	26.3 lpm (6.95 US gpm)	6.95 gpm
No. of Optional Remote Valves	NOT FOUND — no source explicitly states the number of optional remote valves available for the RK24. Sources confirm 1 standard rear remote set is included, but do not specify optional add-on valve counts.	Not Published
No. of Standard Remote Valves	1	Not Applicable
System Operating Pressure	—	341.7 lbf/cm2

PTO Rear	540 rpm	540 rpm @ 2,893 engine rpm
PTO Type	Independent PTO	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,323 lb	1,323 lb
Mid-PTO Availability	Standard, 2,000 rpm @ 2,875 rpm	Yes (2,000 rpm @ 2,875 engine rpm)
Category, 3-Point Hitch	Category I	Category I (N)
Hitch Lift Capacity (at 24”)	Not Published	1,101 lb @ 24 in behind lift point

R3 Turf - Rear	29X12.5-15	29X12.5-15
R3 Turf - Front	20X8-10	20X8-10
Tire Size & Options	R4 Industrial (Std), R3 Turf (Opt) R1 Ag (Opt), Goodyear R14 (Opt)	R1 (Ag) / R3 (Turf) / R4 (Industrial)
R4 Industrial - Rear	27X12.5-15	27X12-16.5
R4 Industrial - Front	20X8-10	23X8.5-12
R1 Agricultural - Rear	9.5-16	9.5-16
R1 Agricultural - Front	6-12	6-12

Coolant Capacity	3.6 ℓ (0.96US gal)	3.8 ℓ (1 US gal)
Crankcase Capacity	2.7 ℓ ( 0.71 US gal)	2.7 ℓ (0.71 US gal)
Fuel Tank Capacity	5.81 gal	22 ℓ (5.81 US gal)
Front Axle Fluid Capacity	3.2ℓ (0.85 US gal)	0.85 gal
Transmission / Hydraulic System Capacity	14.5ℓ (3.83 US gal)	3.83 gal

Loader Lift Height	75.3	75.5 in (pivot pin)
Loader Breakout Force	1,680 lb	1,531 lb (pivot pin, ground level)
Quick Attach Loader System	Skid-Steer Compatible Quick-Attach	SSQA
Loader Lift Capacity (Full Height)	947 lb	992 lb (pivot pin)

Clutch	Not Published	No
No. of Speeds	2 Range (High/Low)	2 range (Low/High)
Transmission Type	Hydraulic + Mechanical H/L with constant-mesh	Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD)
Max Travel Speed (Forward)	10.5 mph	10.5 mph (H range, Ag tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock (bevel gears with diff-lock)	Differential lock

Brakes	Wet Disc, Foot operated, independent with provision of inter lock for simultaneous operation	Wet disc, foot-operated
Steering	Hydrostatic Power steering system	Power steering (hydrostatic)
Frame Type	Not Published	Sub-compact tractor; selectable 4WD
Front Axle Type	Center-pivot, reverse Eliot type	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	57.5 in	66.1 in
Overall Width	45.8 in	50.8 in
Ground Clearance	9.4 in	8.2 in
Height to Top of ROPS	91.3 in	89.7 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	100.5 in	104.0 in
Overall Length	—	92.5 in

Accessories that fit	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $250.00	None tagged yet
