Bad Boy Tractors 1025 vs Rural King RK24

Across 9 measurable specs, the Bad Boy Tractors 1025 leads 6 categories to 2 (1 tied). Machine pages: Bad Boy Tractors 1025 and Rural King RK24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

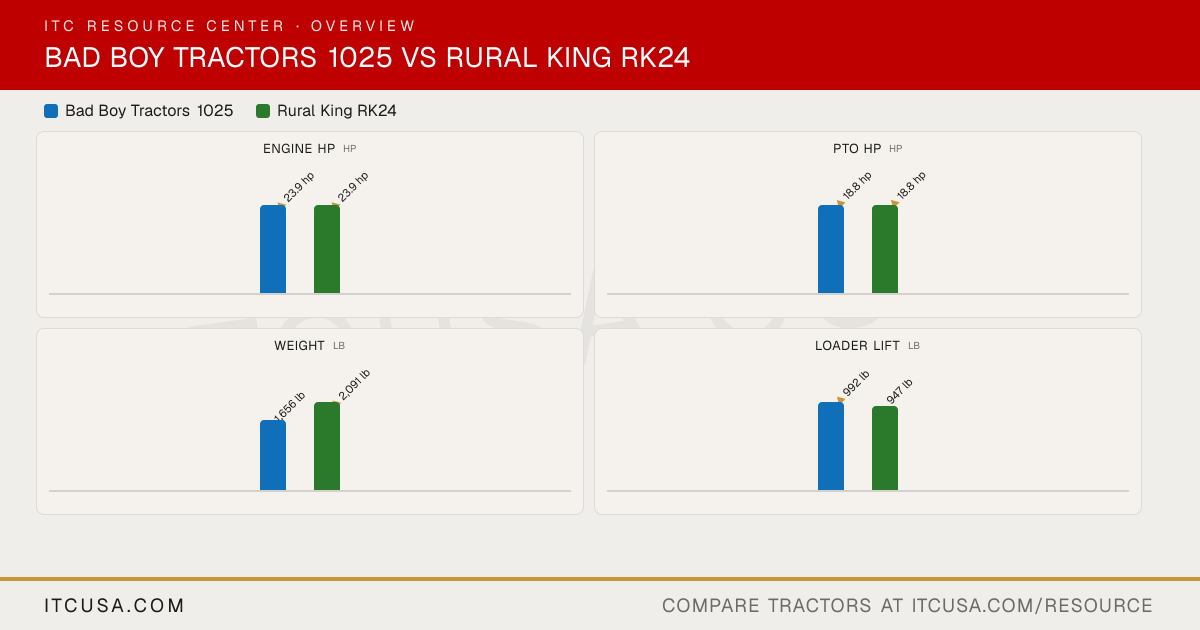

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	Rural KingRK24

▶Engine
Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F	3TNV80F
Engine Type	3 Cylinder, Water-Cooled, Diesel	Water cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24 hp
PTO Power	18.8 hp	18.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled, forced circulation	Water cooled, forced circulation
Air Cleaner	Single element, dry	Single element
Fuel System	Indirect injection	Indirect fuel injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Gear pump	Not Published
Implement Flow	4.2 gpm	4.18 gpm
Steering Flow	2.8 gpm	2.77 gpm
Total Hydraulic Flow	7.0 gpm	6.95 gpm
Overall Hydraulic Pump Flow	6.95 gpm	6.95 gpm
Hydraulic System Type	Open center	Live, independent
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	5.8 gal	5.81 gal
Coolant Capacity	0.95 gal	0.96 gal
Crankcase Capacity	0.71 gal	0.71 gal
Transmission / Hydraulic System Capacity	3.83 gal	3.83 gal
Front Axle Fluid Capacity	0.85 gal	0.85 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,000 rpm	2,000 rpm
Category, 3-Point Hitch	Category I (N)	Category I
Hitch Lift Capacity	1,323 lb	1,323 lb
Hitch Lift Capacity (at 24”)	1,101 lb	1,058 lb
Lift Control Type	Position control	Position
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	2-range hydrostatic
No. of Speeds	2 range (H/L)	2 ranges (high/low), infinite forward and reverse
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	11.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch)
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	4WD with differential lock (bevel gears with diff-lock)
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor; selectable 4WD	Unit frame: engine, transmission and front axle support bolted together into a rigid assembly
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc, foot operated	Wet disc, independent foot pedals that lock together
Seat Suspension & Adjustability	Not Published	Suspension seat with armrests & retractable seat belt
Front Axle Type	Selectable 4WD	4WD, center-pivot reverse Eliot type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	45.8 in	45.8 in
Wheelbase	57.5 in	57.5 in
Ground Clearance	9.4 in	9.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.3 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	104 in	100.5 in
▶Weight
Tractor Weight (Base)	1,638 lb	1,610 lb
Weight with ROPS and Loader	Not Published	2,091 lb (1,610 + 481, computed)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Titan: R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt), R14 (Opt)
R1 Agricultural - Front	6-12	6-12
R1 Agricultural - Rear	9.5-16	9.5-16
R3 Turf - Front	20x8-10	20x8-10
R3 Turf - Rear	29x12.5-15	29x12.5-15
R4 Industrial - Front	23x8.5-12	20x8-10
R4 Industrial - Rear	12-16.5	27x12.5-15
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	L75: skid-steer compatible quick-attach
Loader Model	BBL105	L75
Loader Lift Height	75.5 in	L75: 75.3 in (maximum lift height to pivot pin)
Loader Lift Capacity (Full Height)	992 lb (at pivot pin)	L75: 947 lb (at pivot pin, to full height)
Loader Breakout Force	1,531 lbf	L75: 1,680 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 1025 vs Rural King RK24: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the Rural King RK24?

The Bad Boy Tractors 1025 leads on engine hp at 24.6 hp hp, compared to 24 hp hp for the Rural King RK24.

Which has more PTO horsepower, the Bad Boy Tractors 1025 or the Rural King RK24?

They are effectively tied: both machines are rated at 18.8 hp hp for pto hp.

Which is heavier, the Bad Boy Tractors 1025 or the Rural King RK24?

The Bad Boy Tractors 1025 leads on weight at 1,638 lb lb, compared to 1,610 lb lb for the Rural King RK24.

Which has more loader lift capacity, the Bad Boy Tractors 1025 or the Rural King RK24?

The Bad Boy Tractors 1025 leads on loader lift at 992 lb lb, compared to 947 lb lb for the Rural King RK24.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Rural King RK24?

The Bad Boy Tractors 1025 leads on 3-pt lift (24 in) at 1,101 lb lb, compared to 1,058 lb lb for the Rural King RK24.
