Bad Boy Tractors 1022 vs Rural King RK24

Across 9 measurable specs, the Rural King RK24 leads 8 categories to 1. Machine pages: Bad Boy Tractors 1022 and Rural King RK24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	Rural KingRK24

▶Engine
Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNM74F	3TNV80F
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Water cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	60.6 in³	77.3 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	21.5 hp	24 hp
PTO Power	15.4 hp	18.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water cooled, forced circulation
Air Cleaner	Single dry element	Single element
Fuel System	Indirect injection	Indirect fuel injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Single gear pump with flow divider	Not Published
Implement Flow	4.17 gpm	4.18 gpm
Steering Flow	2.11 gpm	2.77 gpm
Total Hydraulic Flow	6.3 gpm	6.95 gpm
Overall Hydraulic Pump Flow	6.97 gpm	6.95 gpm
Hydraulic System Type	Open center	Live, independent
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	5.81 gal
Coolant Capacity	3.7 qt	0.96 gal
Crankcase Capacity	2.1 qt	0.71 gal
Transmission / Hydraulic System Capacity	3.6 gal	3.83 gal
Front Axle Fluid Capacity	2.6 qt	0.85 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	2,000 rpm
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,323 lb
Hitch Lift Capacity (at 24”)	679 lb	1,058 lb
Lift Control Type	Position control	Position
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	2-range hydrostatic
No. of Speeds	2 range	2 ranges (high/low), infinite forward and reverse
Max Travel Speed (Forward)	7.8 mph	11.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	4WD with differential lock (bevel gears with diff-lock)
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor	Unit frame: engine, transmission and front axle support bolted together into a rigid assembly
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc, independent foot pedals that lock together
Seat Suspension & Adjustability	Not Published	Suspension seat with armrests & retractable seat belt
Front Axle Type	Selectable 4WD	4WD, center-pivot reverse Eliot type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	44.5 in	45.8 in
Wheelbase	53.1 in	57.5 in
Ground Clearance	8.3 in	9.4 in
Min. Turn Radius without Brakes	86.6 in	Not Published
Height to Top of ROPS	86.6 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	94.2 in (with 3-point hitch)	100.5 in
▶Weight
Tractor Weight (Base)	1,433 lb	1,610 lb
Weight with ROPS and Loader	Not Published	2,091 lb (1,610 + 481, computed)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Titan: R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt), R14 (Opt)
R1 Agricultural - Front	16x7.50-9	6-12
R1 Agricultural - Rear	24x12.00-12	9.5-16
R3 Turf - Front	16x7.50-8	20x8-10
R3 Turf - Rear	26x12.00-12	29x12.5-15
R4 Industrial - Front	18x8.5-10	20x8-10
R4 Industrial - Rear	26x12-12	27x12.5-15
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	L75: skid-steer compatible quick-attach
Loader Model	BBL100	L75
Loader Lift Height	78.5 in (at pivot pin)	L75: 75.3 in (maximum lift height to pivot pin)
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	L75: 947 lb (at pivot pin, to full height)
Loader Breakout Force	1,253 lbf	L75: 1,680 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99

Find a Bad Boy dealer near you→Find a dealer near you→

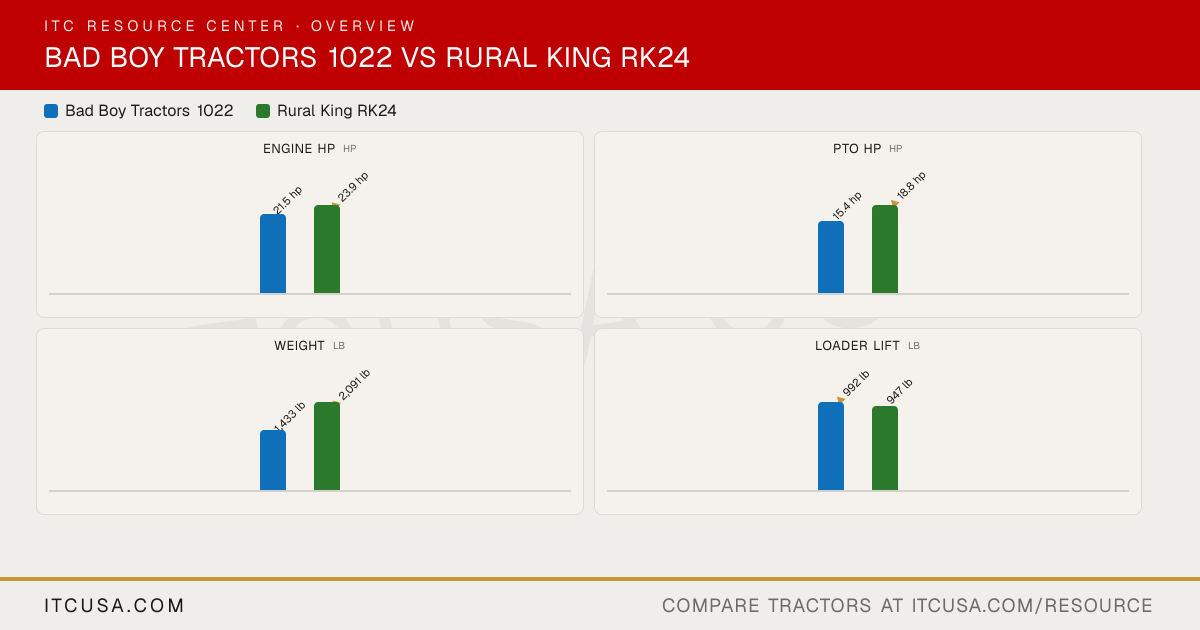

Bad Boy Tractors 1022 vs Rural King RK24: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Rural King RK24?

The Rural King RK24 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Rural King RK24?

The Rural King RK24 leads on pto hp at 18.8 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the Rural King RK24?

The Rural King RK24 leads on weight at 1,610 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Rural King RK24?

The Rural King RK24 leads on loader lift at 947 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Rural King RK24?

The Rural King RK24 leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
