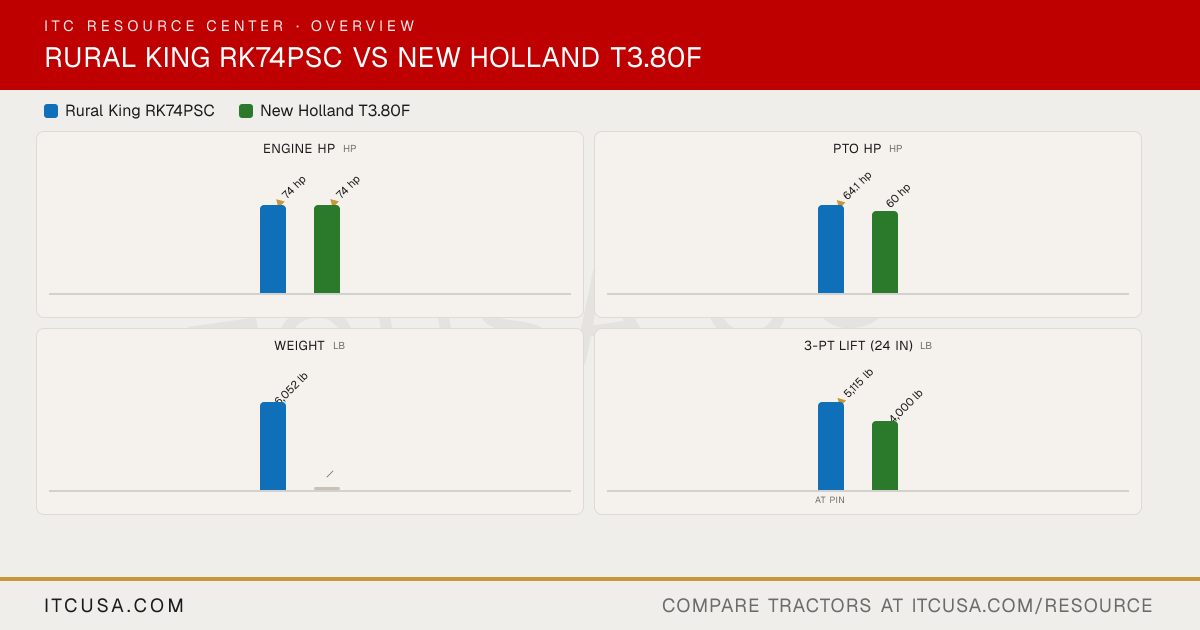

▶ EngineEngine Manufacturer Deutz Not Published Engine Model TCD2.9 L4 S8000 Engine Type Turbocharged Turbocharged, intercooled 3-cylinder diesel No. of Cylinders 4 3 Displacement 177.0 in³ 179 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 64.1 hp 60 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Not Published Not Published Fuel System Common Rail Direct Injection Common rail fuel injection Alternator 95 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Dual-pump Implement Flow 10.3 gpm 12.6 gpm Steering Flow 5.8 gpm 7.6 gpm Total Hydraulic Flow 16.1 gpm 20.2 gpm Overall Hydraulic Pump Flow 10.3 gpm 20.2 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 3 3 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal Not Published Coolant Capacity 10.6 qt Not Published Crankcase Capacity 8.5 qt Not Published Transmission / Hydraulic System Capacity 18.0 gal Not Published Front Axle Fluid Capacity 17.4 qt Not Published ▶ PTO & HitchPTO Type Independent Not Published PTO Rear 540/750 rpm 540/540E Mid-PTO Availability No mid-PTO offered Not Published Category, 3-Point Hitch Category II Not Published Hitch Lift Capacity 5,115 lb Not Published Hitch Lift Capacity (at 24”) 3,414 lb 4,000 lb Lift Control Type Position / Draft / Mechanical Lift-O-Matic ▶ Transmission & DrivetrainTransmission Type 16F/16R Power Shuttle w/creeper 12x12 Mechanical Shuttle No. of Speeds 16 forward, 16 reverse (creeper interlock) 12F/12R Max Travel Speed (Forward) 18.9 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Single plate dry clutch (11.81 in diameter); hydraulic clutch assembly for Independent PTO models Not Published Differential Lock & Limited Slip Options 4WD, differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly Straddle-deck platform Steering Hydrostatic power steering Not Published Brakes Wet disc Not Published Seat Suspension & Adjustability High-back suspension seat with extension Vinyl suspension seat Front Axle Type Center-pivot, reverse Elliot type (4WD) 4WD front axle, electronic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 157.5 in 143 in Overall Width 76.4 in 57 in Wheelbase 86.1 in 73 in Ground Clearance 18.3 in Not Published Min. Turn Radius without Brakes 162.8 in Not Published Height to Top of ROPS Not Published 97 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 103.3 in Not Published ▶ WeightTractor Weight (Base) 6,052 lb 5,000 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Titan (USA): R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt) Not Published R1 Agricultural - Front 11.2-24 Not Published R1 Agricultural - Rear 16.9-30 320/70R20 R3 Turf - Front 12.0-20.5 Not Published R3 Turf - Rear 22.4-25.5 Not Published R4 Industrial - Front 15-19.5 Not Published R4 Industrial - Rear 18.4-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System L135SL: Skid-steer compatible quick coupler, self-leveling Not Published Loader Model L135SL Not Published Loader Lift Height L135SL: 135.5 in Not Published Loader Lift Capacity (Full Height) L135SL: 3,223 lb at pivot pin to full height Not Published Loader Breakout Force L135SL: 5,335 lb at pivot pin Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
