Solis S20 vs Solis H24+ | Side-by-side comparison | ITC Resource Center
Compare Tractors

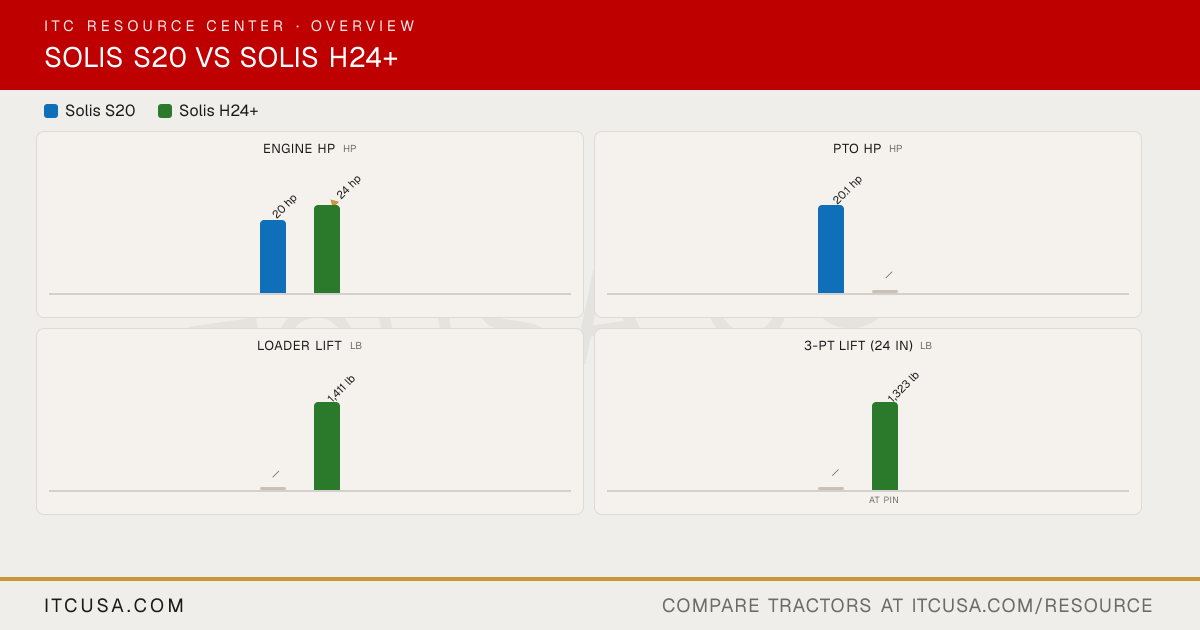

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisS20
SolisH24+
PTO Power
20.1 hp
Not Published
Alternator
42 A, 12 V
Not Published
Engine Type
Mitsubishi 3 Cylinder
Natural (Naturally Aspirated)
Displacement
58.1 in³
80.4 in³
Engine Model
Mitsubishi MVL - 3E
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2700
2500 rpm
Cooling System Type
Water Cooled
Not Published
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
20 hp
24 hp
Engine Emissions Constraints
Stage V
Not Published
Air Cleaner
—
Not Published
Fuel System
—
Not Published
Total Hydraulic Flow
13.3 LPM
3.98 GPM
Pump Type
—
Not Published
Steering Flow
—
Not Published
Implement Flow
—
Not Published
Hydraulic System Type
—
Open Center
Rear Remote Hydraulic Flow
—
Not Published
Overall Hydraulic Pump Flow
—
Not Published
No. of Optional Remote Valves
—
Not Published
No. of Standard Remote Valves
—
1
PTO Type
Mechanical
Wet Type
PTO Rear
—
540@2451
Lift Control Type
—
Not Published
Hitch Lift Capacity
—
1323 lbs
Mid-PTO Availability
—
2100@2438
Category, 3-Point Hitch
—
CAT1N
Hitch Lift Capacity (at 24”)
—
Not Published
R3 Turf - Rear
33x15.5-16.5
33x15.5-16.5
R3 Turf - Front
23x8.50-12
23x8.50-12
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.00 - 18
8.3x20
R1 Agricultural - Front
5.00 - 12
6x12
Tire Size & Options
—
R1 Agricultural, R3 Turf, R4 Industrial
Clutch
Single Clutch
NOT FOUND — HST twin-touch foot pedals (no separate clutch pedal listed in any source)
No. of Speeds
6F+2R
Infinite (Hydrostatic - 2 Range)
Transmission Type
Sliding Mesh
HST (2 Range)
Max Travel Speed (Forward)
15.26 Km/Hr @ 2700
Up to 14 mph
Differential Lock & Limited Slip Options
Yes, Foot Operated
Standard
Max Travel Speed (Reverse)
—
Up to 14 mph
Brakes
Dry Drum Brakes
Oil immersed brakes; mechanical foot operated
Steering
Power Steering
Power Steering
Front Axle Type
4WD
NOT FOUND — sources list 4WD / Selectable Four Wheel Drive but do not name axle type (e.g. rigid/oscillating/articulating)
Frame Type
—
NOT FOUND — no source explicitly states a frame type (e.g. open/channel/unitized) for the H24+
Drawbar Capacity
—
NOT FOUND — sources confirm a Rear Swing Drawbar is standard but no numeric capacity rating was found
Front Axle Rating
—
NOT FOUND — no source explicitly states a rated load capacity for the front axle
Seat Suspension & Adjustability
—
Not Published
Wheelbase
55.9 in
61.8 inches
Ground Clearance
7.9 in
9.44 inches (Front Axle)
Height to Top of ROPS
75.8 in
91.53 inches
Height to Top of Cab Model
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
Not Applicable
Height to Top of ROPS (folded)
77.6 in
Not Published
Min. Turn Radius without Brakes
2.3 m
Not Published
Overall Length with 3-Point Hitch
106.7 in
113.98 inches
Overall Width
—
47.83 in
Weight with ROPS and Loader
—
Not Published
Weight with Cab and Loader
—
Not Applicable
Warranty Length & Coverage
—
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
