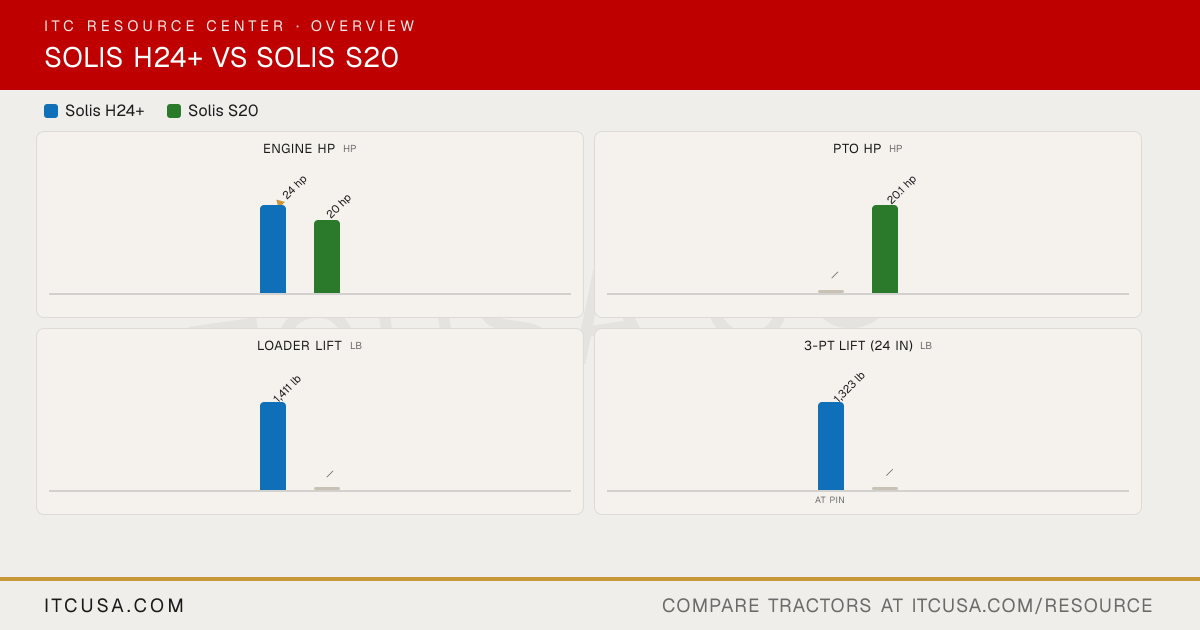

Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24+
SolisS20
PTO Power
Not Published
20.1 hp
Alternator
Not Published
42 A, 12 V
Air Cleaner
Not Published
—
Engine Type
Natural (Naturally Aspirated)
Mitsubishi 3 Cylinder
Fuel System
Not Published
—
Displacement
80.4 in³
58.1 in³
Engine Model
Mitsubishi S3L2
Mitsubishi MVL - 3E
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2700
Cooling System Type
Not Published
Water Cooled
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
24 hp
20 hp
Engine Emissions Constraints
Not Published
Stage V
Weight with ROPS and Loader
Not Published
—
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
—
Pump Type
Not Published
—
Steering Flow
Not Published
—
Implement Flow
Not Published
—
Total Hydraulic Flow
3.98 GPM
13.3 LPM
Hydraulic System Type
Open Center
—
Rear Remote Hydraulic Flow
Not Published
—
Overall Hydraulic Pump Flow
Not Published
—
No. of Optional Remote Valves
Not Published
—
No. of Standard Remote Valves
1
—
PTO Rear
540@2451
—
PTO Type
Wet Type
Mechanical
Lift Control Type
Not Published
—
Hitch Lift Capacity
1323 lbs
—
Mid-PTO Availability
2100@2438
—
Category, 3-Point Hitch
CAT1N
—
Hitch Lift Capacity (at 24”)
Not Published
—
R3 Turf - Rear
33x15.5-16.5
33x15.5-16.5
R3 Turf - Front
23x8.50-12
23x8.50-12
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
—
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.3x20
8.00 - 18
R1 Agricultural - Front
6x12
5.00 - 12
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
7 gal
—
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Lift Height
85 in
—
Loader Breakout Force
1,146 lb
—
Quick Attach Loader System
3200V: Self-leveling
—
Loader Lift Capacity (Full Height)
1,411 lb
—
Clutch
NOT FOUND — HST twin-touch foot pedals (no separate clutch pedal listed in any source)
Single Clutch
No. of Speeds
Infinite (Hydrostatic - 2 Range)
6F+2R
Transmission Type
HST (2 Range)
Sliding Mesh
Max Travel Speed (Forward)
Up to 14 mph
15.26 Km/Hr @ 2700
Max Travel Speed (Reverse)
Up to 14 mph
—
Differential Lock & Limited Slip Options
Standard
Yes, Foot Operated
Brakes
Oil immersed brakes; mechanical foot operated
Dry Drum Brakes
Steering
Power Steering
Power Steering
Frame Type
NOT FOUND — no source explicitly states a frame type (e.g. open/channel/unitized) for the H24+
—
Front Axle Type
NOT FOUND — sources list 4WD / Selectable Four Wheel Drive but do not name axle type (e.g. rigid/oscillating/articulating)
4WD
Drawbar Capacity
NOT FOUND — sources confirm a Rear Swing Drawbar is standard but no numeric capacity rating was found
—
Front Axle Rating
NOT FOUND — no source explicitly states a rated load capacity for the front axle
—
Seat Suspension & Adjustability
Not Published
—
Wheelbase
61.8 inches
55.9 in
Overall Width
47.83 in
—
Ground Clearance
9.44 inches (Front Axle)
7.9 in
Height to Top of ROPS
91.53 inches
75.8 in
Height to Top of Cab Model
Not Applicable
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
Height to Top of ROPS (folded)
Not Published
77.6 in
Min. Turn Radius without Brakes
Not Published
2.3 m
Overall Length with 3-Point Hitch
113.98 inches
106.7 in
Solis H24+ vs Solis S20: Quick Answers
Which has more horsepower, the Solis H24+ or the Solis S20?
The Solis H24+ leads on engine hp at 24 hp hp, compared to 20 hp hp for the Solis S20.
