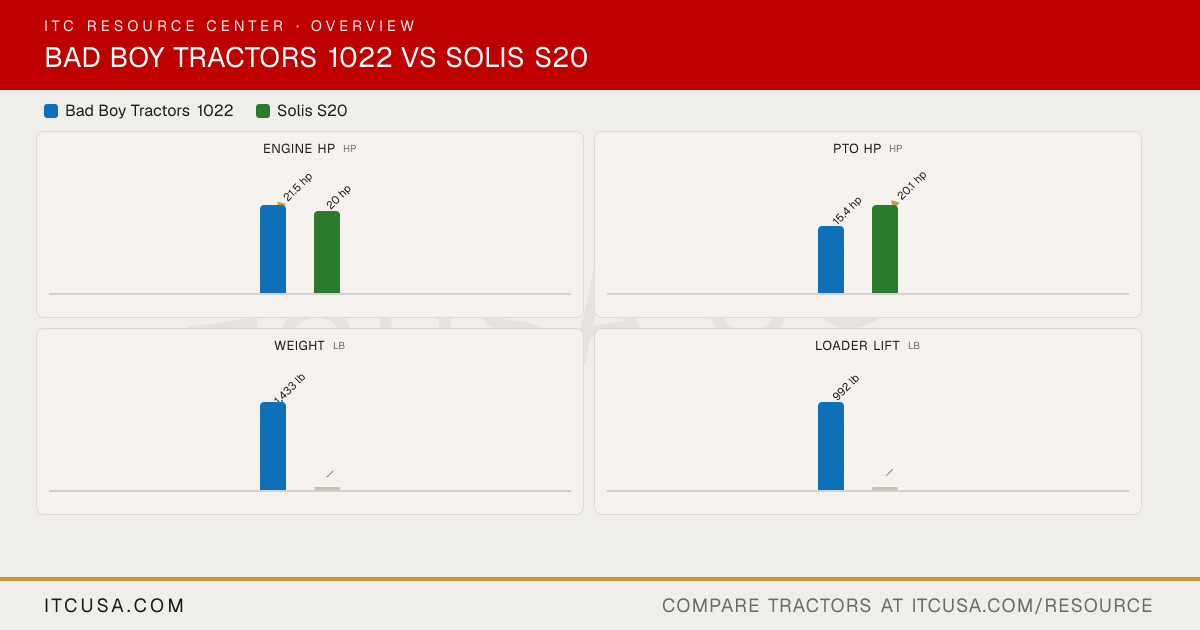

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors1022
SolisS20
PTO Power
15.4 hp
20.1 hp
Alternator
40 A, 12 V
42 A, 12 V
Air Cleaner
Single Dry
—
Engine Type
Natural Aspiration
Mitsubishi 3 Cylinder
Fuel System
Diesel
—
Displacement
60.6 (993)
58.1 in³
No. of Cylinders
3
3
Rated Engine Speed
3,200
2700
Cooling System Type
Water cooled
Water Cooled
Engine Manufacturer
Yanmar
Mitsubishi
Engine Power (Gross)
21.5 hp
20 hp
Engine Emissions Constraints
Tier 4
Stage V
Engine Model
—
Mitsubishi MVL - 3E
Tractor Weight (Base)
1,433 (650)
—
Weight with ROPS and Loader
1,433 lb
—
Weight with Cab and Loader
Not Published
—
Warranty Length & Coverage
7-year powertrain warranty
—
Pump Type
Single Gear Pump with Flow Divider
—
Steering Flow
2.11 gpm
—
Implement Flow
4.17 (15.8)
—
Total Hydraulic Flow
6.97 (26.4)
13.3 LPM
Hydraulic System Type
Not Published
—
Rear Remote Hydraulic Flow
Not Published
—
Overall Hydraulic Pump Flow
6.97 gpm (max total flow)
—
No. of Optional Remote Valves
Up to 1
—
No. of Standard Remote Valves
Not Published
—
PTO Rear
540 rpm
—
PTO Type
Independent
Mechanical
Lift Control Type
Position
—
Hitch Lift Capacity
1,100 lb
—
Mid-PTO Availability
Optional (2,500 rpm)
—
Category, 3-Point Hitch
Category I (N)
—
Hitch Lift Capacity (at 24”)
679 lb
—
R3 Turf - Rear
TURF R 16X12.00-12
33x15.5-16.5
R3 Turf - Front
TURF F 16X7.50-8
23x8.50-12
Tire Size & Options
R1 (BAR) / R3 (TURF) / R4 (IND)
—
R4 Industrial - Rear
26X12-12
33x15.5-16.5
R4 Industrial - Front
18X8.50-10
23x8.50-12
R1 Agricultural - Rear
BAR R 24X12.00-12
8.00 - 18
R1 Agricultural - Front
BAR F 16X7.50-9
5.00 - 12
Coolant Capacity
0.9 gal
—
Crankcase Capacity
0.48 gal
—
Fuel Tank Capacity
6.6 gal
—
Front Axle Fluid Capacity
2.6 qt
—
Transmission / Hydraulic System Capacity
3.6 gal
—
Loader Lift Height
72.7 in (under level bucket); 78.5 in (pivot pin)
—
Loader Breakout Force
1,531 lb (at pivot pin, ground level)
—
Quick Attach Loader System
SSQA
—
Loader Lift Capacity (Full Height)
992 lb (at pivot pin)
—
Clutch
Dry single plate
Single Clutch
No. of Speeds
2 Range
6F+2R
Transmission Type
Hydrostatic transmission (HST)
Sliding Mesh
Max Travel Speed (Forward)
7.8 mph
15.26 Km/Hr @ 2700
Max Travel Speed (Reverse)
Not Published
—
Differential Lock & Limited Slip Options
Mechanical rear differential lock
Yes, Foot Operated
Brakes
Wet disc
Dry Drum Brakes
Steering
Hydrostatic
Power Steering
Frame Type
Sub-compact tractor, 4WD
—
Front Axle Type
Center pin front axle
4WD
Drawbar Capacity
Not Published
—
Front Axle Rating
Not Published
—
Seat Suspension & Adjustability
Standard adjustable seat
—
Wheelbase
53.1 (1,350)
55.9 in
Overall Width
44.5 (1,130)
—
Overall Length
94.2 (2,394)
—
Ground Clearance
8.3 in.
7.9 in
Height to Top of ROPS
86.6 (2,200)
75.8 in
Height to Top of Cab Model
Not Published
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
Height to Top of ROPS (folded)
Not Published
77.6 in
Min. Turn Radius without Brakes
86.6 (2,200)
2.3 m
Overall Length with 3-Point Hitch
94.2 in
106.7 in
Bad Boy Tractors 1022 vs Solis S20: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the Solis S20?
The Bad Boy Tractors 1022 leads on engine hp at 21.5 hp hp, compared to 20 hp hp for the Solis S20.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Solis S20?
The Solis S20 leads on pto hp at 20.1 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
