24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
Pump Type
Gear
Not Published
Steering Flow
N/A
Not Published
Implement Flow
6.5 gpm (24.5 Lpm)
Not Published
Total Hydraulic Flow
7.2 gpm
3.98 GPM
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
Not Published
No. of Optional Remote Valves
1 Pair
Not Published
No. of Standard Remote Valves
1
1
PTO Rear
540 rpm
540@2451
PTO Type
Independent
Wet Type
Lift Control Type
Hydraulic Position Control System
Not Published
Hitch Lift Capacity
700 lb.
1323 lbs
Mid-PTO Availability
Standard: 2200 rpm
2100@2438
Category, 3-Point Hitch
Category 1 Limited
CAT1N
Hitch Lift Capacity (at 24”)
700 lb
Not Published
R3 Turf - Rear
26X12.00-12
33x15.5-16.5
R3 Turf - Front
18X8.5-10
23x8.50-12
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12.00-12
33x15.5-16.5
R4 Industrial - Front
18X8.5-10
23x8.50-12
R1 Agricultural - Rear
26X12.00-12
8.3x20
R1 Agricultural - Front
18X8.5-10
6x12
Coolant Capacity
2.0 (1.9) qts (L)
Not Published
Crankcase Capacity
5.2 (4.9) qts (L)
Not Published
Fuel Tank Capacity
6.7 gal.
7 gal
Front Axle Fluid Capacity
NOT FOUND
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND
Not Published
Loader Model
FL6
—
Loader Lift Height
71.9 in.
85 in
Loader Breakout Force
1554 lb.
1,146 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
3200V: Self-leveling
Loader Lift Capacity (Full Height)
608 lb.
1,411 lb
Clutch
Clutch-free (Hydrostatic)
NOT FOUND — HST twin-touch foot pedals (no separate clutch pedal listed in any source)
No. of Speeds
2
Infinite (Hydrostatic - 2 Range)
Transmission Type
2-Range HST
HST (2 Range)
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
Up to 14 mph
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Up to 14 mph
Differential Lock & Limited Slip Options
Std
Standard
Brakes
Wet Multi-disc
Oil immersed brakes; mechanical foot operated
Steering
Hydrostatic Power Steering
Power Steering
Frame Type
Not Published
NOT FOUND — no source explicitly states a frame type (e.g. open/channel/unitized) for the H24+
Front Axle Type
Not Published
NOT FOUND — sources list 4WD / Selectable Four Wheel Drive but do not name axle type (e.g. rigid/oscillating/articulating)
Drawbar Capacity
7.7 kN / 1730 lb
NOT FOUND — sources confirm a Rear Swing Drawbar is standard but no numeric capacity rating was found
Front Axle Rating
Not Published
NOT FOUND — no source explicitly states a rated load capacity for the front axle
Seat Suspension & Adjustability
Suspension Seat ■
Not Published
Wheelbase
55.1 in.
61.8 inches
Overall Width
46.0 in.
47.83 in
Ground Clearance
6.3 in.
9.44 inches (Front Axle)
Height to Top of ROPS
87.6 in.
91.53 inches
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Not Published
Min. Turn Radius without Brakes
100.0 in.
Not Published
Overall Length with 3-Point Hitch
99.3 in.
113.98 inches

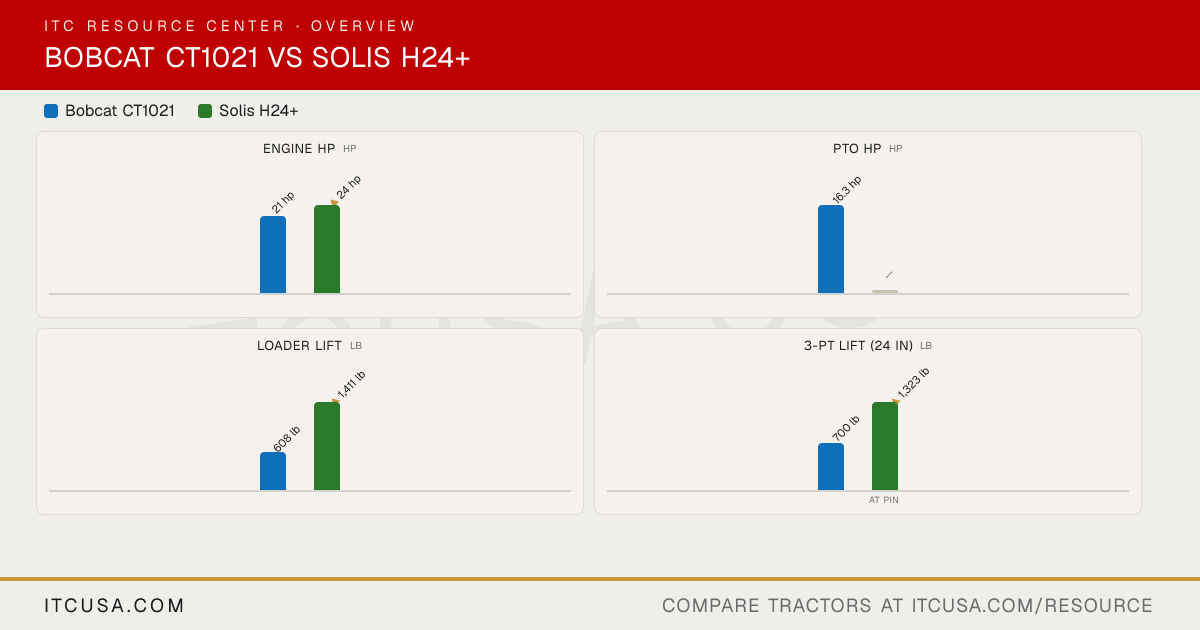

Bobcat CT1021 vs Solis H24+: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Solis H24+?
The Solis H24+ leads on engine hp at 24 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Solis H24+?
The Solis H24+ leads on loader lift at 1,411 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Solis H24+?
The Solis H24+ leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 700 lb lb for the Bobcat CT1021.
