Solis S20 vs Solis H24 cabin | Side-by-side comparison | ITC Resource Center
Compare Tractors

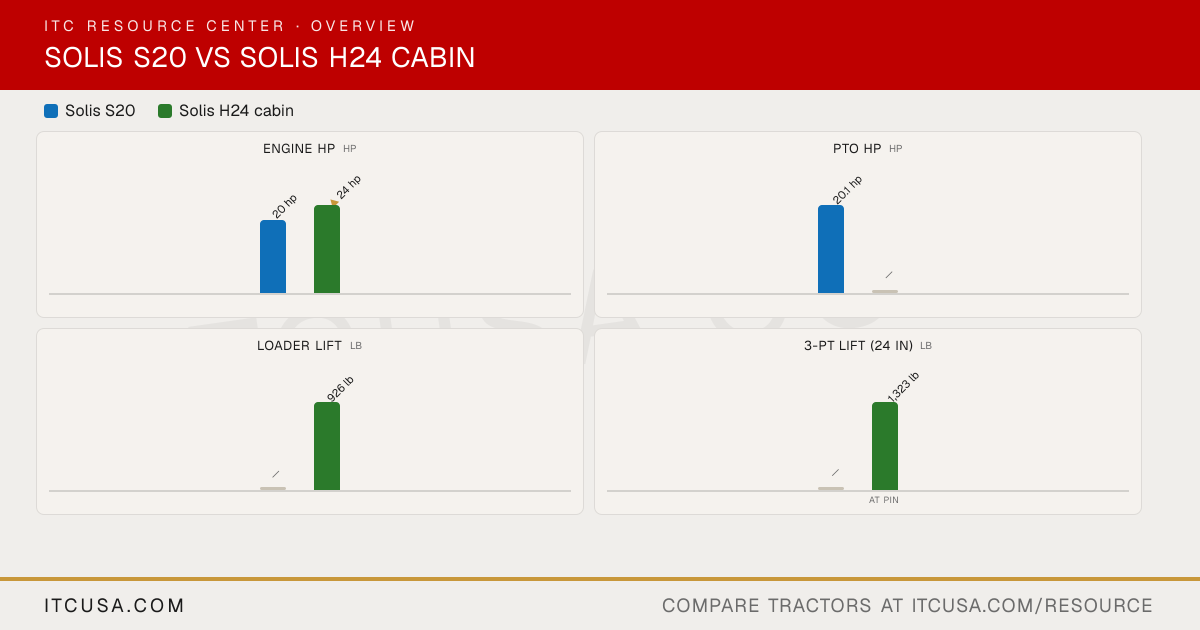

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisS20
SolisH24 cabin
PTO Power
20.1 hp
Not Published
Alternator
42 A, 12 V
Not Published
Engine Type
Mitsubishi 3 Cylinder
Diesel, Natural Aspiration
Displacement
58.1 in³
80.42 ci
Engine Model
Mitsubishi MVL - 3E
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2700
2500 rpm
Cooling System Type
Water Cooled
Not Published
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
20 hp
24 hp
Engine Emissions Constraints
Stage V
Not Published
Air Cleaner
—
Not Published
Fuel System
—
Indirect Injection
Total Hydraulic Flow
13.3 LPM
3 gpm
Pump Type
—
Not Published
Steering Flow
—
Not Published
Implement Flow
—
3.98 gpm 15.1 lpm
Hydraulic System Type
—
open center
Rear Remote Hydraulic Flow
—
Not Published
Overall Hydraulic Pump Flow
—
Not Published
No. of Optional Remote Valves
—
Not Published
No. of Standard Remote Valves
—
1
PTO Type
Mechanical
Independent
PTO Rear
—
540 RPM at 2451 RPM
Lift Control Type
—
NOT FOUND
Hitch Lift Capacity
—
1323 lbs
Mid-PTO Availability
—
Yes - 2100 RPM at 2438 RPM
Category, 3-Point Hitch
—
Category I
Hitch Lift Capacity (at 24”)
—
Not Published
R3 Turf - Rear
33x15.5-16.5
33x15.5-16.5; 13.6x16
R3 Turf - Front
23x8.50-12
23x8.50-12; 25x8.50-14
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.00 - 18
8.3-20
R1 Agricultural - Front
5.00 - 12
6-12
Tire Size & Options
—
R1 Agricultural, R3 Turf, R4 Industrial
Clutch
Single Clutch
Not Published
No. of Speeds
6F+2R
2 Range
Transmission Type
Sliding Mesh
HST (2 Range), Constant Mesh
Max Travel Speed (Forward)
15.26 Km/Hr @ 2700
Not Published
Differential Lock & Limited Slip Options
Yes, Foot Operated
Standard
Max Travel Speed (Reverse)
—
Not Published
Brakes
Dry Drum Brakes
Mechanical wet disc brakes
Steering
Power Steering
Power steering
Front Axle Type
4WD
4WD
Frame Type
—
Not Published
Drawbar Capacity
—
Not Published
Front Axle Rating
—
Not Published
Seat Suspension & Adjustability
—
Not Published
Wheelbase
55.9 in
61.8 inches
Ground Clearance
7.9 in
9.44 inches (Front Axle)
Height to Top of ROPS
75.8 in
Not Applicable
Height to Top of Cab Model
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
