Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 2 measurable specs, this matchup is a dead heat: 1 categories to the Solis H24 cabin, 1 to the Solis S20. Machine pages: Solis H24 cabin and Solis S20.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24 cabin
SolisS20
PTO Power
Not Published
20.1 hp
Alternator
Not Published
42 A, 12 V
Air Cleaner
Not Published
—
Engine Type
Diesel, Natural Aspiration
Mitsubishi 3 Cylinder
Fuel System
Indirect Injection
—
Displacement
80.42 ci
58.1 in³
Engine Model
Mitsubishi S3L2
Mitsubishi MVL - 3E
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2700
Cooling System Type
Not Published
Water Cooled
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
24 hp
20 hp
Engine Emissions Constraints
Not Published
Stage V
Weight with ROPS and Loader
Not Applicable
—
Weight with Cab and Loader
Not Published
—
Warranty Length & Coverage
3-year warranty; 7-year limited powertrain
—
Pump Type
Not Published
—
Steering Flow
Not Published
—
Implement Flow
3.98 gpm 15.1 lpm
—
Total Hydraulic Flow
3 gpm
13.3 LPM
Hydraulic System Type
open center
—
Rear Remote Hydraulic Flow
Not Published
—
Overall Hydraulic Pump Flow
Not Published
—
No. of Optional Remote Valves
Not Published
—
No. of Standard Remote Valves
1
—
PTO Rear
540 RPM at 2451 RPM
—
PTO Type
Independent
Mechanical
Lift Control Type
NOT FOUND
—
Hitch Lift Capacity
1323 lbs
—
Mid-PTO Availability
Yes - 2100 RPM at 2438 RPM
—
Category, 3-Point Hitch
Category I
—
Hitch Lift Capacity (at 24”)
Not Published
—
R3 Turf - Rear
33x15.5-16.5; 13.6x16
33x15.5-16.5
R3 Turf - Front
23x8.50-12; 25x8.50-14
23x8.50-12
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
—
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.3-20
8.00 - 18
R1 Agricultural - Front
6-12
5.00 - 12
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
7 gal
—
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Lift Height
HLN24: 82 in; HB24: 85 in
—
Loader Breakout Force
HLN24: 1,565 lb; HB24: 1,146 lb
—
Quick Attach Loader System
HLN24 (NSL), HB24 (MSL)
—
Loader Lift Capacity (Full Height)
926 lbs
—
Clutch
Not Published
Single Clutch
No. of Speeds
2 Range
6F+2R
Transmission Type
HST (2 Range), Constant Mesh
Sliding Mesh
Max Travel Speed (Forward)
Not Published
15.26 Km/Hr @ 2700
Max Travel Speed (Reverse)
Not Published
—
Differential Lock & Limited Slip Options
Standard
Yes, Foot Operated
Brakes
Mechanical wet disc brakes
Dry Drum Brakes
Steering
Power steering
Power Steering
Frame Type
Not Published
—
Front Axle Type
4WD
4WD
Drawbar Capacity
Not Published
—
Front Axle Rating
Not Published
—
Seat Suspension & Adjustability
Not Published
—
Wheelbase
61.8 inches
55.9 in
Overall Width
47 in
—
Ground Clearance
9.44 inches (Front Axle)
7.9 in
Height to Top of ROPS
Not Applicable
75.8 in
Height to Top of Cab Model
93 in
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
Height to Top of ROPS (folded)
Not Applicable
77.6 in
Min. Turn Radius without Brakes
Not Published
2.3 m
Overall Length with 3-Point Hitch
113.98 inches
106.7 in
Solis H24 cabin vs Solis S20: Quick Answers

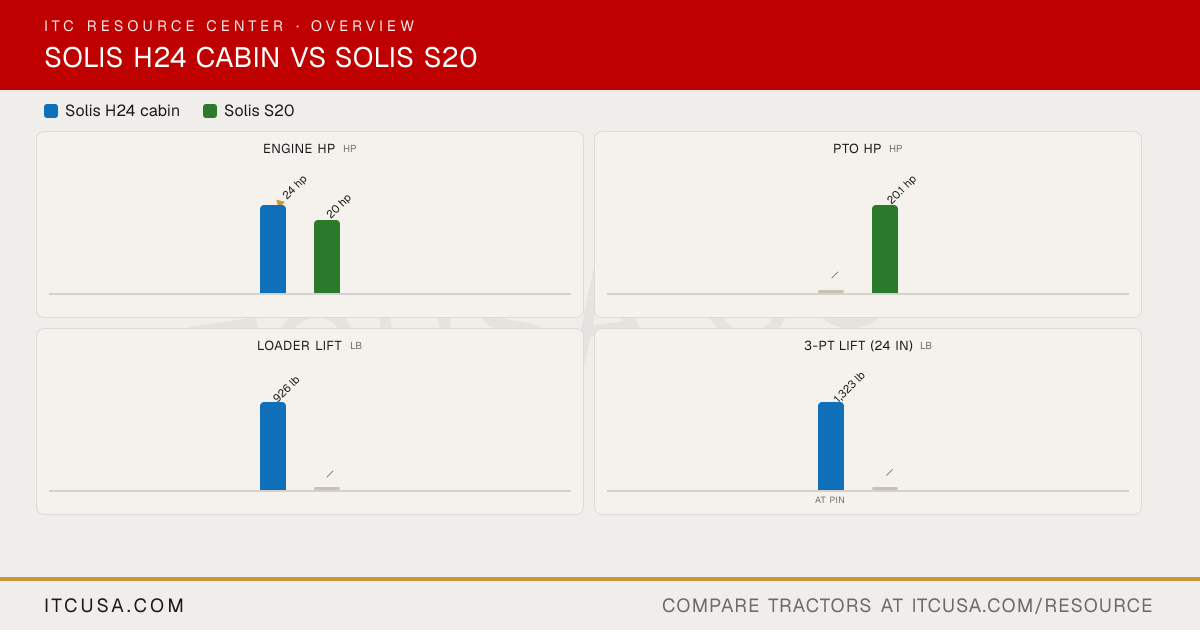

Which has more horsepower, the Solis H24 cabin or the Solis S20?
The Solis H24 cabin leads on engine hp at 24 hp hp, compared to 20 hp hp for the Solis S20.
