Solis S22 vs Solis H24 | Side-by-side comparison | ITC Resource Center
Compare Tractors

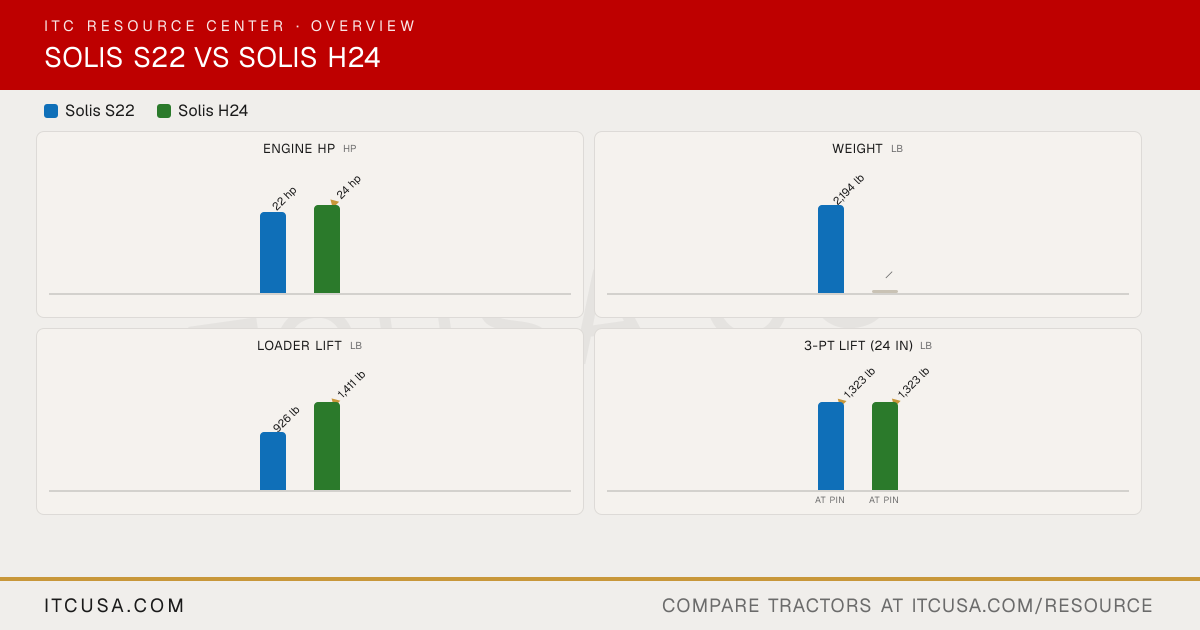

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisS22
SolisH24
Alternator
42 A
alternator
Engine Type
diesel
diesel
Fuel System
diesel
Direct Injection
Displacement
67.1 in³
79.3 in³
Engine Model
Mitsubishi S3L2
Mitsubishi S3L2
No. of Cylinders
3
3
Engine Manufacturer
ITL
Mitsubishi
Engine Power (Gross)
22 hp
24 hp
PTO Power
—
Not Published
Air Cleaner
—
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Rated Engine Speed
—
2500 rpm
Cooling System Type
—
Liquid cooled
Engine Emissions Constraints
—
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
Weight with ROPS and Loader
2194 lbs 2,193.6 lb
Not Published
Weight with Cab and Loader
—
Not Applicable
No. of Standard Remote Valves
1DA
NOT FOUND — no source explicitly lists this value
Pump Type
—
NOT FOUND
Steering Flow
—
NOT FOUND — no source explicitly lists this value
Implement Flow
—
3.98 gpm 15.1 lpm
Total Hydraulic Flow
—
3.98 gpm
Hydraulic System Type
—
open center
Rear Remote Hydraulic Flow
—
NOT FOUND — no source explicitly lists this value
Overall Hydraulic Pump Flow
—
3.98 gpm 15.1 lpm
No. of Optional Remote Valves
—
NOT FOUND — no source explicitly lists this value
PTO Rear
540
540 (1.375)
PTO Type
Mechanical
independent
Hitch Lift Capacity
1323 lbs 1,322.8 lb
1323 lbs
Category, 3-Point Hitch
I
I
Lift Control Type
—
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
Mid-PTO Availability
—
Optional
Hitch Lift Capacity (at 24”)
—
Not Published
R1 Agricultural - Rear
280/70R18
8.3-20
R1 Agricultural - Front
6.5/80-12
6-12
R3 Turf - Rear
—
33x15.5-16.5; 13.6x16
R3 Turf - Front
—
23x8.50-12; 25x8.50-14
Tire Size & Options
—
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
—
33x15.5-16.5
R4 Industrial - Front
—
23x8.50-12
Fuel Tank Capacity
6.9 gal
7 gal
Coolant Capacity
—
Not Published
Crankcase Capacity
—
Not Published
Front Axle Fluid Capacity
—
Not Published
Transmission / Hydraulic System Capacity
—
Not Published
Loader Model
3200 / 3200V
Solis 3200
Loader Lift Height
85
85 in
Loader Breakout Force
1058 / 1146
1,146 lbs
Loader Lift Capacity (Full Height)
926 / 1411
1,411 lbs
Quick Attach Loader System
—
SSQA (Skid Steer Quick Attach)
Clutch
Single Clutch
electro-hydraulic wet disc
No. of Speeds
6
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
Transmission Type
6-speed gear
hydrostatic
Differential Lock & Limited Slip Options
mechanical rear
mechanical rear
Max Travel Speed (Forward)
—
Up to 14 mph
Max Travel Speed (Reverse)
—
Up to 14 mph
Brakes
Wet disc brakes
Mechanical wet disc brakes
Steering
Power steering
Power steering
Frame Type
Two-post folding ROPS
Not Published
Front Axle Type
—
Four-wheel drive
Drawbar Capacity
—
Not Published
Front Axle Rating
—
Not Published
Seat Suspension & Adjustability
—
Not Published
Wheelbase
61.4 inches 61 in
61.8 inches 61.4 in
Overall Width
—
47.38 in.
Ground Clearance
—
9.44 in.
Height to Top of ROPS
—
91.53 in
Height to Top of Cab Model
—
Not Applicable
Height to Top of ROPS (folded)
—
NOT FOUND
Min. Turn Radius without Brakes
—
NOT FOUND
Overall Length with 3-Point Hitch
—
113.98 in.
Warranty Length & Coverage
—
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
