Solis S22 vs Solis H24+ | Side-by-side comparison | ITC Resource Center
Compare Tractors

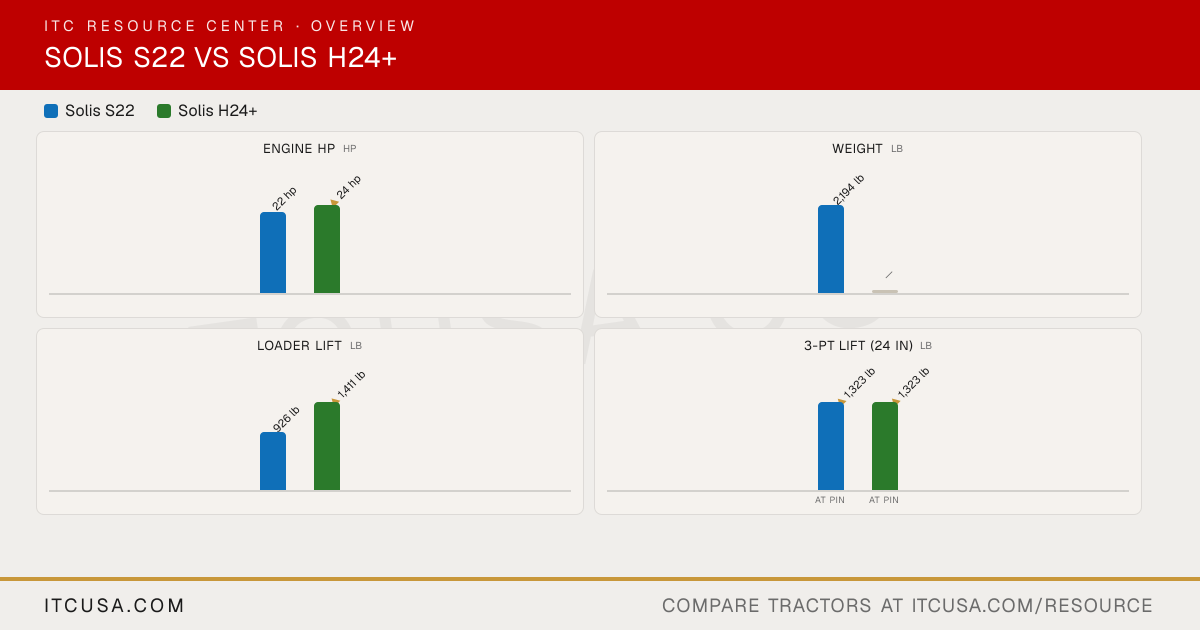

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisS22
SolisH24+
Alternator
42 A
Not Published
Engine Type
diesel
Natural (Naturally Aspirated)
Fuel System
diesel
Not Published
Displacement
67.1 in³
80.4 in³
Engine Model
Mitsubishi S3L2
Mitsubishi S3L2
No. of Cylinders
3
3
Engine Manufacturer
ITL
Mitsubishi
Engine Power (Gross)
22 hp
24 hp
PTO Power
—
Not Published
Air Cleaner
—
Not Published
Rated Engine Speed
—
2500 rpm
Cooling System Type
—
Not Published
Engine Emissions Constraints
—
Not Published
Weight with ROPS and Loader
2194 lbs 2,193.6 lb
Not Published
Weight with Cab and Loader
—
Not Applicable
No. of Standard Remote Valves
1DA
1
Pump Type
—
Not Published
Steering Flow
—
Not Published
Implement Flow
—
Not Published
Total Hydraulic Flow
—
3.98 GPM
Hydraulic System Type
—
Open Center
Rear Remote Hydraulic Flow
—
Not Published
Overall Hydraulic Pump Flow
—
Not Published
No. of Optional Remote Valves
—
Not Published
PTO Rear
540
540@2451
PTO Type
Mechanical
Wet Type
Hitch Lift Capacity
1323 lbs 1,322.8 lb
1323 lbs
Category, 3-Point Hitch
I
CAT1N
Lift Control Type
—
Not Published
Mid-PTO Availability
—
2100@2438
Hitch Lift Capacity (at 24”)
—
Not Published
R1 Agricultural - Rear
280/70R18
8.3x20
R1 Agricultural - Front
6.5/80-12
6x12
R3 Turf - Rear
—
33x15.5-16.5
R3 Turf - Front
—
23x8.50-12
Tire Size & Options
—
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
—
33x15.5-16.5
R4 Industrial - Front
—
23x8.50-12
Fuel Tank Capacity
6.9 gal
7 gal
Coolant Capacity
—
Not Published
Crankcase Capacity
—
Not Published
Front Axle Fluid Capacity
—
Not Published
Transmission / Hydraulic System Capacity
—
Not Published
Loader Model
3200 / 3200V
—
Loader Lift Height
85
85 in
Loader Breakout Force
1058 / 1146
1,146 lb
Loader Lift Capacity (Full Height)
926 / 1411
1,411 lb
Quick Attach Loader System
—
3200V: Self-leveling
Clutch
Single Clutch
NOT FOUND — HST twin-touch foot pedals (no separate clutch pedal listed in any source)
No. of Speeds
6
Infinite (Hydrostatic - 2 Range)
Transmission Type
6-speed gear
HST (2 Range)
Differential Lock & Limited Slip Options
mechanical rear
Standard
Max Travel Speed (Forward)
—
Up to 14 mph
Max Travel Speed (Reverse)
—
Up to 14 mph
Brakes
Wet disc brakes
Oil immersed brakes; mechanical foot operated
Steering
Power steering
Power Steering
Frame Type
Two-post folding ROPS
NOT FOUND — no source explicitly states a frame type (e.g. open/channel/unitized) for the H24+
Front Axle Type
—
NOT FOUND — sources list 4WD / Selectable Four Wheel Drive but do not name axle type (e.g. rigid/oscillating/articulating)
Drawbar Capacity
—
NOT FOUND — sources confirm a Rear Swing Drawbar is standard but no numeric capacity rating was found
Front Axle Rating
—
NOT FOUND — no source explicitly states a rated load capacity for the front axle
Seat Suspension & Adjustability
—
Not Published
Wheelbase
61.4 inches 61 in
61.8 inches
Overall Width
—
47.83 in
Ground Clearance
—
9.44 inches (Front Axle)
Height to Top of ROPS
—
91.53 inches
Height to Top of Cab Model
—
Not Applicable
Height to Top of ROPS (folded)
—
Not Published
Min. Turn Radius without Brakes
—
Not Published
Overall Length with 3-Point Hitch
—
113.98 inches
Warranty Length & Coverage
—
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
