Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24+
SolisS22
PTO Power
Not Published
—
Alternator
Not Published
42 A
Air Cleaner
Not Published
—
Engine Type
Natural (Naturally Aspirated)
diesel
Fuel System
Not Published
diesel
Displacement
80.4 in³
67.1 in³
Engine Model
Mitsubishi S3L2
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
—
Cooling System Type
Not Published
—
Engine Manufacturer
Mitsubishi
ITL
Engine Power (Gross)
24 hp
22 hp
Engine Emissions Constraints
Not Published
—
Weight with ROPS and Loader
Not Published
2194 lbs 2,193.6 lb
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
—
Pump Type
Not Published
—
Steering Flow
Not Published
—
Implement Flow
Not Published
—
Total Hydraulic Flow
3.98 GPM
—
Hydraulic System Type
Open Center
—
Rear Remote Hydraulic Flow
Not Published
—
Overall Hydraulic Pump Flow
Not Published
—
No. of Optional Remote Valves
Not Published
—
No. of Standard Remote Valves
1
1DA
PTO Rear
540@2451
540
PTO Type
Wet Type
Mechanical
Lift Control Type
Not Published
—
Hitch Lift Capacity
1323 lbs
1323 lbs 1,322.8 lb
Mid-PTO Availability
2100@2438
—
Category, 3-Point Hitch
CAT1N
I
Hitch Lift Capacity (at 24”)
Not Published
—
R3 Turf - Rear
33x15.5-16.5
—
R3 Turf - Front
23x8.50-12
—
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
—
R4 Industrial - Rear
33x15.5-16.5
—
R4 Industrial - Front
23x8.50-12
—
R1 Agricultural - Rear
8.3x20
280/70R18
R1 Agricultural - Front
6x12
6.5/80-12
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
7 gal
6.9 gal
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Lift Height
85 in
85
Loader Breakout Force
1,146 lb
1058 / 1146
Quick Attach Loader System
3200V: Self-leveling
—
Loader Lift Capacity (Full Height)
1,411 lb
926 / 1411
Loader Model
—
3200 / 3200V
Clutch
NOT FOUND — HST twin-touch foot pedals (no separate clutch pedal listed in any source)
Single Clutch
No. of Speeds
Infinite (Hydrostatic - 2 Range)
6
Transmission Type
HST (2 Range)
6-speed gear
Max Travel Speed (Forward)
Up to 14 mph
—
Max Travel Speed (Reverse)
Up to 14 mph
—
Differential Lock & Limited Slip Options
Standard
mechanical rear
Brakes
Oil immersed brakes; mechanical foot operated
Wet disc brakes
Steering
Power Steering
Power steering
Frame Type
NOT FOUND — no source explicitly states a frame type (e.g. open/channel/unitized) for the H24+
Two-post folding ROPS
Front Axle Type
NOT FOUND — sources list 4WD / Selectable Four Wheel Drive but do not name axle type (e.g. rigid/oscillating/articulating)
—
Drawbar Capacity
NOT FOUND — sources confirm a Rear Swing Drawbar is standard but no numeric capacity rating was found
—
Front Axle Rating
NOT FOUND — no source explicitly states a rated load capacity for the front axle
—
Seat Suspension & Adjustability
Not Published
—
Wheelbase
61.8 inches
61.4 inches 61 in
Overall Width
47.83 in
—
Ground Clearance
9.44 inches (Front Axle)
—
Height to Top of ROPS
91.53 inches
—
Height to Top of Cab Model
Not Applicable
—
Height to Top of ROPS (folded)
Not Published
—
Min. Turn Radius without Brakes
Not Published
—
Overall Length with 3-Point Hitch
113.98 inches
—

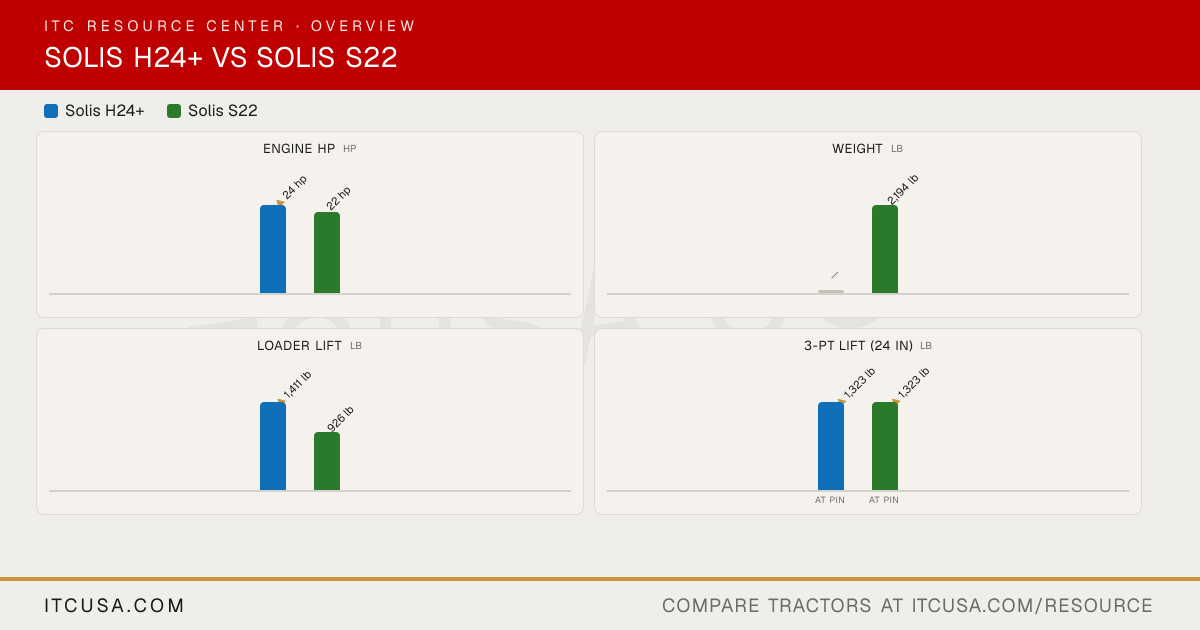

Solis H24+ vs Solis S22: Quick Answers
Which has more horsepower, the Solis H24+ or the Solis S22?
The Solis H24+ leads on engine hp at 24 hp hp, compared to 22 hp hp for the Solis S22.
Which has more loader lift capacity, the Solis H24+ or the Solis S22?
The Solis H24+ leads on loader lift at 1,411 lb lb, compared to 926 lb lb for the Solis S22.
Which has more three-point hitch lift capacity, the Solis H24+ or the Solis S22?
They are effectively tied: both machines are rated at 1,323 lb lb for 3-pt lift (24 in).
