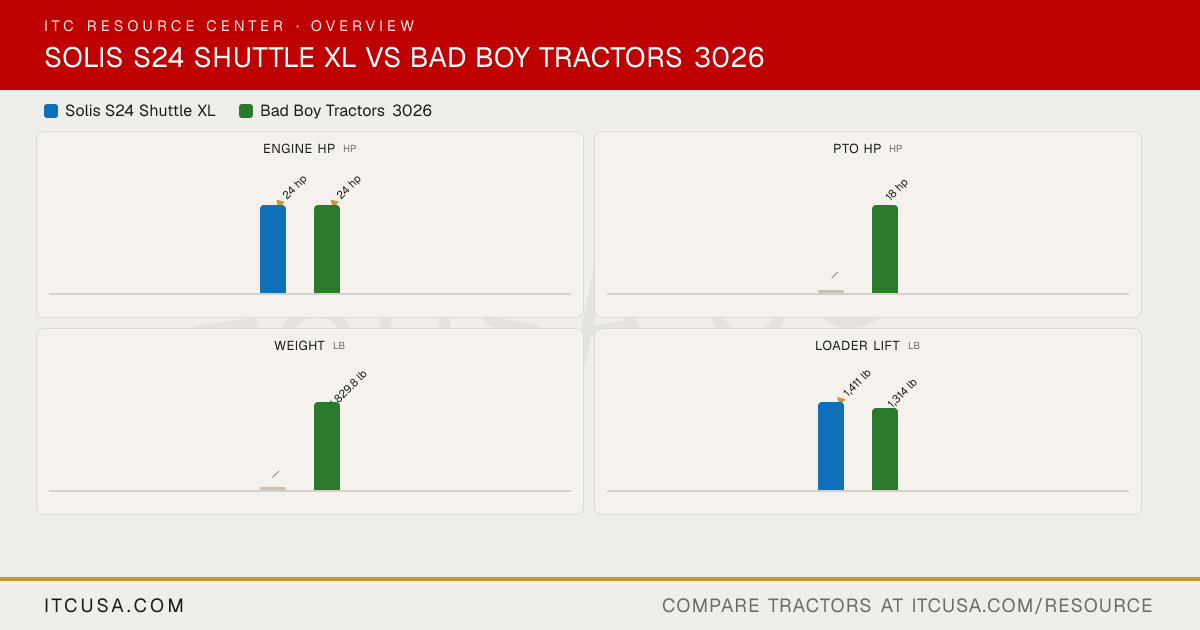

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisS24 Shuttle XL
Bad Boy Tractors3026
PTO Power
Not Published
18 hp
Alternator
Not Published
50 A, 12 V
Air Cleaner
Not Published
Dry, Element
Engine Type
Natural Aspiration
3 CYL, Water Cooled, Diesel
Fuel System
Not Published
Diesel
Displacement
80.4 in³
71.7 in³
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2600 rpm
Cooling System Type
Not Published
Water Cooled
Engine Manufacturer
Mitsubishi
TYM
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
Not Published
Final Tier4
Engine Model
—
A1100N2
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources
Tractor Weight (Base)
—
1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H
Warranty Length & Coverage
3-year warranty; 7-year limited powertrain
6-year powertrain warranty
Pump Type
Not Published
Gear type pump with primary and secondary pumps
Steering Flow
Not Published
3.1 gpm
Implement Flow
Not Published
4.3 gpm
Total Hydraulic Flow
6.5 gpm
7.4 gpm 28.0 lpm
Hydraulic System Type
Not Published
Power Assisted Hydro-Static
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
Not Published
7.7 gal per min
No. of Optional Remote Valves
Not Published
Optional (Up To 1)
No. of Standard Remote Valves
1
0
System Operating Pressure
—
352.7 lbf/cm² (max operating pressure)
PTO Rear
540/540E rpm
540 / 960 rpm @ 2,600 rpm
PTO Type
Mechanical
Live P.T.O. (6 Spline shaft)
Lift Control Type
Not Published
Position control
Hitch Lift Capacity
1,323 lb
1,433 lbs
Mid-PTO Availability
Not Published
Option: 2,500 rpm (Mid)
Category, 3-Point Hitch
CAT-1N
Cat 1
Hitch Lift Capacity (at 24”)
Not Published
974 lb
R3 Turf - Rear
33x15.5-16.5; 13.6x16
Not Published
R3 Turf - Front
23x8.50-12; 25x8.50-14
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5
R4 Industrial - Rear
33x15.5-16.5
14X17.5
R4 Industrial - Front
23x8.50-12
25X8.50-14
R1 Agricultural - Rear
8.3x20; 8.3x24; 280/70 R18
11.2-20 8PR
R1 Agricultural - Front
6x12; 7x14; 6.5/80-12
7-16 6PR
Coolant Capacity
Not Published
1.21 gal
Crankcase Capacity
Not Published
0.79 gal
Fuel Tank Capacity
5.8 gal
6.08 gal
Front Axle Fluid Capacity
Not Published
0.79 gal
Transmission / Hydraulic System Capacity
Not Published
2.90 gal
Loader Lift Height
85 in
86 in.
Loader Breakout Force
1,146 lb
1,960 lbs.
Quick Attach Loader System
XB24 (MSL)
SSQA
Loader Lift Capacity (Full Height)
1,411 lb
1,314 lbs.
Clutch
Not Published
Dry Single Plate
No. of Speeds
9F+9R
3 Range
Transmission Type
Constant Mesh with Synchromesh Shuttle transmission
Hydrostatic (HST)
Max Travel Speed (Forward)
Not Published
14.8 mph
Max Travel Speed (Reverse)
Not Published
14.8 mph
Differential Lock & Limited Slip Options
NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source
Differential Lock
Brakes
Oil immersed brakes; mechanical, foot operated
Wet, Multi-Disc
Steering
Power steering
Hydrostatic
Frame Type
Not Published
Steel frame with cast iron axles
Front Axle Type
4WD
4 Wheel Drive
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Adjustable seat; flips up and back for rear backhoe operation
Wheelbase
61.8 in
65.7"
Overall Width
47.83 in
53.8"
Ground Clearance
9.44 in
16.4"
Height to Top of ROPS
91.53 in
91.4"
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
Not Published
91.4 in - ROPS up (no folded dimension found in available sources)
