Bad Boy Tractors 3026 vs Solis S24 Shuttle XL

Across 7 measurable specs, the Bad Boy Tractors 3026 leads 4 categories to 3. Machine pages: Bad Boy Tractors 3026 and Solis S24 Shuttle XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

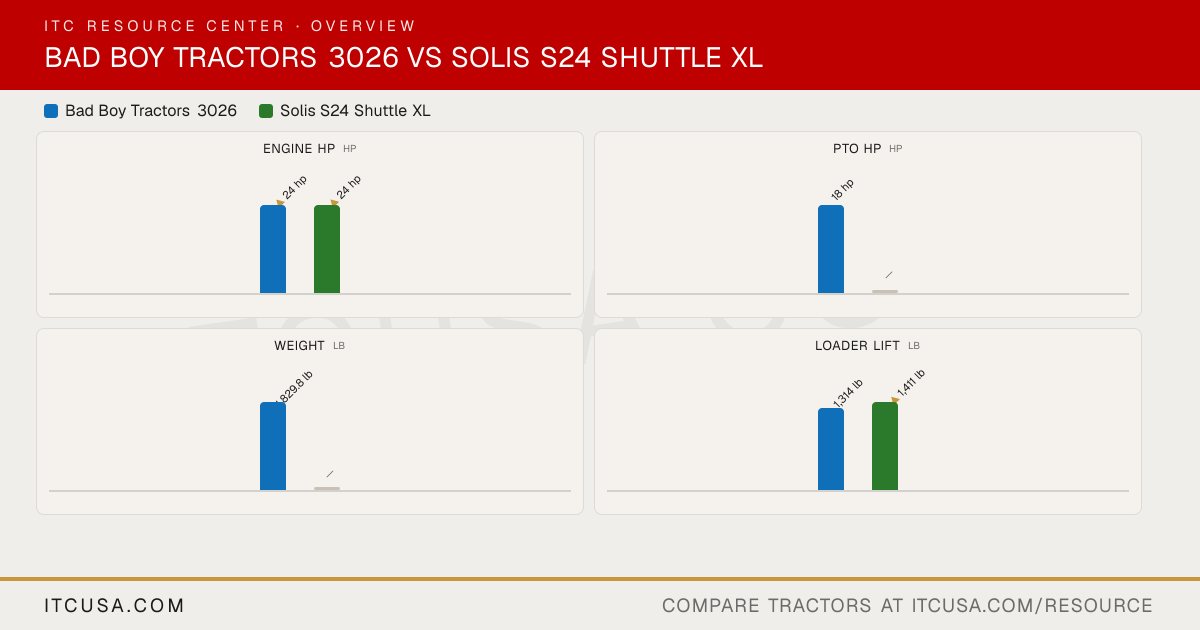

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	SolisS24 Shuttle XL

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1100N2	S3L2
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	71.7 in³	80.42 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	25 hp	24 hp
PTO Power	18 hp	Not Published
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	6.5 gpm
Overall Hydraulic Pump Flow	7.7 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	1
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	5.8 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Mechanical
PTO Rear	540 / 960 rpm	540/540E rpm
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I (CAT-1N)
Hitch Lift Capacity	1,433 lb	1,323 lb
Hitch Lift Capacity (at 24”)	974 lb	Not Published
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Constant mesh with synchromesh shuttle transmission
No. of Speeds	3 range (L/M/H)	9 forward, 9 reverse
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Oil immersed brakes, mechanical foot operated
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Four wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	47.83 in
Wheelbase	65.7 in	61.8 in
Ground Clearance	16.4 in	9.44 in (front axle)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	91.53 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	113.98 in
▶Weight
Tractor Weight (Base)	2,106 lb	2,513 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Industrial: 23x8.50-12 & 33x15.5-16.5; Turf 1: 23x8.50-12 & 33x15.5-16.5; Turf 2: 25x8.50-14 & 13.6x16; Agri 1: 6x12 & 8.3x20; Agri 2: 7x14 & 8.3x24; Radial Agri: 6.5/80-12 & 280/70 R18; Galaxy Pro: 220/55 R12 & 280/70 R16
R1 Agricultural - Front	7-16 6PR	6x12; 7x14; 6.5/80-12
R1 Agricultural - Rear	11.2-20	8.3x20; 8.3x24; 280/70R18
R3 Turf - Front	Not Published	23x8.50-12; 25x8.50-14
R3 Turf - Rear	Not Published	33x15.5-16.5; 13.6x16
R4 Industrial - Front	25x8.50-14	23x8.50-12
R4 Industrial - Rear	14x17.5	33x15.5-16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Skid steer quick attach
Loader Model	BBL300	XB24 (MSL)
Loader Lift Height	86 in	XB24: 85 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,314 lb (at pivot pin)	XB24: 1,411 lb (at pivot pin)
Loader Breakout Force	1,960 lbf	XB24: 1,146 lb (at pivot pin, dig position)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	3 year full machine warranty; 7 year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 3026 vs Solis S24 Shuttle XL: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Solis S24 Shuttle XL?

The Bad Boy Tractors 3026 leads on engine hp at 25 hp hp, compared to 24 hp hp for the Solis S24 Shuttle XL.

Which is heavier, the Bad Boy Tractors 3026 or the Solis S24 Shuttle XL?

The Solis S24 Shuttle XL leads on weight at 2,513 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Solis S24 Shuttle XL?

The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Solis S24 Shuttle XL?

The Solis S24 Shuttle XL leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
