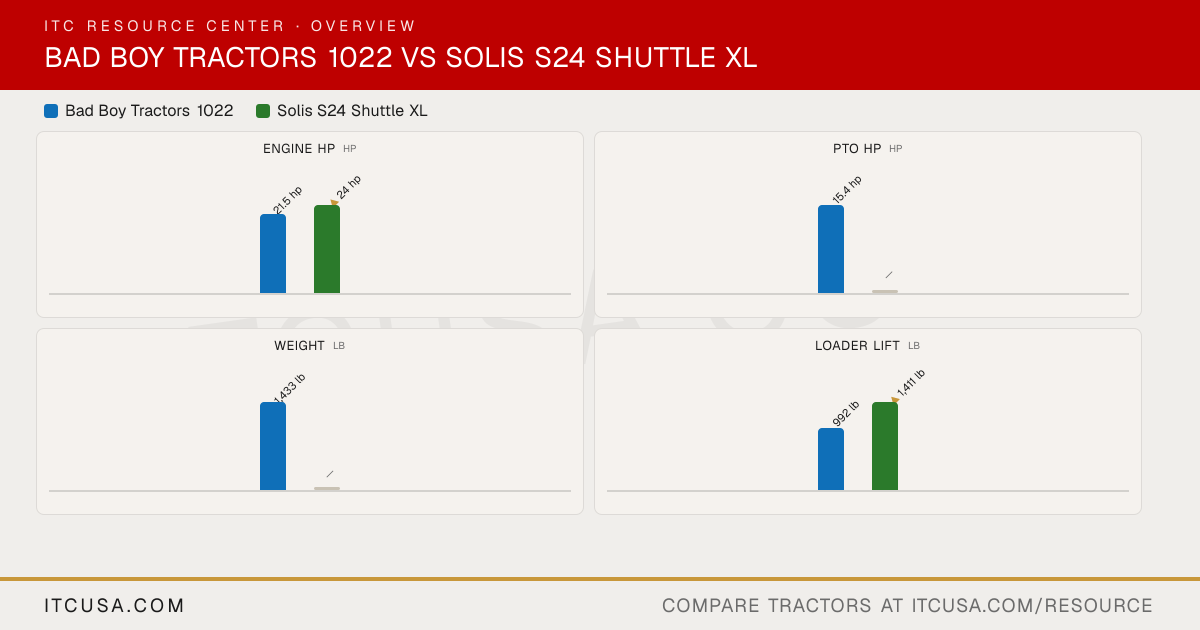

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors1022
SolisS24 Shuttle XL
PTO Power
15.4 hp
Not Published
Alternator
40 A, 12 V
Not Published
Air Cleaner
Single Dry
Not Published
Engine Type
Natural Aspiration
Natural Aspiration
Fuel System
Diesel
Not Published
Displacement
60.6 (993)
80.4 in³
No. of Cylinders
3
3
Rated Engine Speed
3,200
2500 rpm
Cooling System Type
Water cooled
Not Published
Engine Manufacturer
Yanmar
Mitsubishi
Engine Power (Gross)
21.5 hp
24 hp
Engine Emissions Constraints
Tier 4
Not Published
Tractor Weight (Base)
1,433 (650)
—
Weight with ROPS and Loader
1,433 lb
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
7-year powertrain warranty
3-year warranty; 7-year limited powertrain
Pump Type
Single Gear Pump with Flow Divider
Not Published
Steering Flow
2.11 gpm
Not Published
Implement Flow
4.17 (15.8)
Not Published
Total Hydraulic Flow
6.97 (26.4)
6.5 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.97 gpm (max total flow)
Not Published
No. of Optional Remote Valves
Up to 1
Not Published
No. of Standard Remote Valves
Not Published
1
PTO Rear
540 rpm
540/540E rpm
PTO Type
Independent
Mechanical
Lift Control Type
Position
Not Published
Hitch Lift Capacity
1,100 lb
1,323 lb
Mid-PTO Availability
Optional (2,500 rpm)
Not Published
Category, 3-Point Hitch
Category I (N)
CAT-1N
Hitch Lift Capacity (at 24”)
679 lb
Not Published
R3 Turf - Rear
TURF R 16X12.00-12
33x15.5-16.5; 13.6x16
R3 Turf - Front
TURF F 16X7.50-8
23x8.50-12; 25x8.50-14
Tire Size & Options
R1 (BAR) / R3 (TURF) / R4 (IND)
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12-12
33x15.5-16.5
R4 Industrial - Front
18X8.50-10
23x8.50-12
R1 Agricultural - Rear
BAR R 24X12.00-12
8.3x20; 8.3x24; 280/70 R18
R1 Agricultural - Front
BAR F 16X7.50-9
6x12; 7x14; 6.5/80-12
Coolant Capacity
0.9 gal
Not Published
Crankcase Capacity
0.48 gal
Not Published
Fuel Tank Capacity
6.6 gal
5.8 gal
Front Axle Fluid Capacity
2.6 qt
Not Published
Transmission / Hydraulic System Capacity
3.6 gal
Not Published
Loader Lift Height
72.7 in (under level bucket); 78.5 in (pivot pin)
85 in
Loader Breakout Force
1,531 lb (at pivot pin, ground level)
1,146 lb
Quick Attach Loader System
SSQA
XB24 (MSL)
Loader Lift Capacity (Full Height)
992 lb (at pivot pin)
1,411 lb
Clutch
Dry single plate
Not Published
No. of Speeds
2 Range
9F+9R
Transmission Type
Hydrostatic transmission (HST)
Constant Mesh with Synchromesh Shuttle transmission
Max Travel Speed (Forward)
7.8 mph
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Mechanical rear differential lock
NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source
Brakes
Wet disc
Oil immersed brakes; mechanical, foot operated
Steering
Hydrostatic
Power steering
Frame Type
Sub-compact tractor, 4WD
Not Published
Front Axle Type
Center pin front axle
4WD
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Standard adjustable seat
Not Published
Wheelbase
53.1 (1,350)
61.8 in
Overall Width
44.5 (1,130)
47.83 in
Overall Length
94.2 (2,394)
—
Ground Clearance
8.3 in.
9.44 in
Height to Top of ROPS
86.6 (2,200)
91.53 in
Height to Top of Cab Model
Not Published
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
86.6 (2,200)
Not Published
Overall Length with 3-Point Hitch
94.2 in
113.98 in
Bad Boy Tractors 1022 vs Solis S24 Shuttle XL: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
