Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

TYM3015

n/a

KubotaL2800

Comparison loaded for 2 tractors.

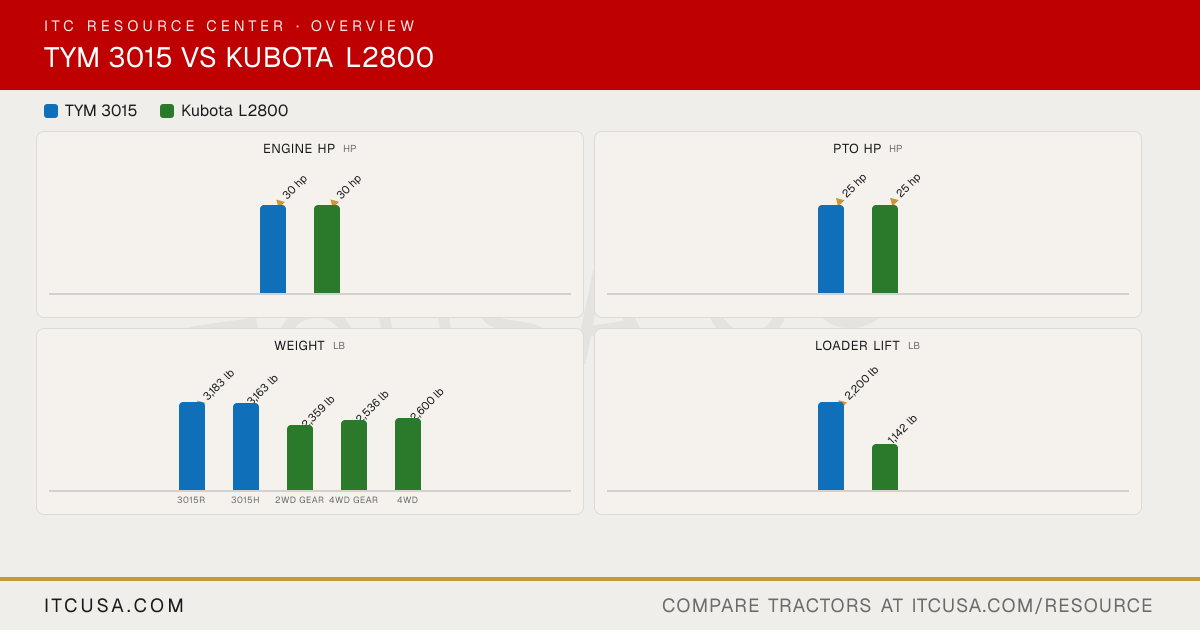

The headline numbers at a glance.

TYM 3015Kubota L2800

Engine HPhp

▲30 hp

PTO HPhp

▲25 hp

Weightlb

▲3,183 lb

3,163 lb

2,359 lb

2,536 lb

2,600 lb

3015R3015H2WD gear4WD gear4WD

Loader Liftlb

▲2,200 lb

1,142 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,435 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM3015	KubotaL2800


Engine Manufacturer	TYM	Kubota
Engine Model	T1700N3	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	Not Published
No. of Cylinders	3	3
Displacement	104.5 in³	91.5 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	30 hp	30 hp
PTO Power	25 hp	F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Dry element	Not Published
Fuel System	IDI (indirect injection)	Indirect injection
Alternator	50 A, 12 V	40 A, 12 V

Pump Type	Dual gear pump	Not Published
Implement Flow	7.7 gpm	6.5 gpm
Steering Flow	4.2 gpm	4.0 gpm
Total Hydraulic Flow	11.9 gpm	10.5 gpm (6.5 + 4.0, computed)
Overall Hydraulic Pump Flow	11.9 gpm	Not Published
Hydraulic System Type	Dual gear pump	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Loader: 2 / Rear: 0	Not Published
No. of Optional Remote Valves	Up to 4	Up to 3

Fuel Tank Capacity	7.1 gal	9.0 gal
Coolant Capacity	5.3 qt	Not Published
Crankcase Capacity	4.5 qt	Not Published
Transmission / Hydraulic System Capacity	3015R: 9 gal; 3015H: 9.8 gal	F (2WD): 7.1 gal; DT (4WD): 7.3 gal; HST (4WD): 6.2 gal
Front Axle Fluid Capacity	6.8 qt	4.8 qt

PTO Type	Independent	F (2WD gear), DT (4WD gear): transmission-driven with overrunning clutch; HST (4WD): live-continuous with overrunning clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	1,998 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,435 lb
Lift Control Type	Position control	Position control

Transmission Type	3015R: Synchromesh; 3015H: HST	Not Published
No. of Speeds	3015R: F12 x R12; 3015H: 3-Range	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range
Max Travel Speed (Forward)	3015R: 14.4 mph; 3015H: 18.8 mph	F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph
Max Travel Speed (Reverse)	3015R: 14.3 mph; 3015H: 18.7 mph	F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph
Clutch	3015R: Dry single plate; 3015H: None (HST)	F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage
Differential Lock & Limited Slip Options	Differential lock (standard)	Rear differential lock standard

Frame Type	Not Published	Foldable ROPS (standard on all models)
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet, multi-disc	Wet disc type
Seat Suspension & Adjustability	Suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	56.3 in	51.4 in
Wheelbase	65.7 in	63.3 in
Ground Clearance	14.4 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in
Min. Turn Radius without Brakes	L: 124.8 in; R: 121.3 in	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (with brake applied)
Height to Top of ROPS	97.3 in	85.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	120.9 in (with 3-point hitch)	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (without 3-point hitch)

Tractor Weight (Base)	3015R: 3,183 lb; 3015H: 3,163 lb	F (2WD gear): 2,359 lb; DT (4WD gear): 2,536 lb; HST (4WD): 2,600 lb
Weight with ROPS and Loader	HST: 4,171 lb (3,163 + 1,008, computed); Gear: 4,191 lb (3,183 + 1,008, computed)	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 6PR / 41x14.00 4PR; R4 Industrial 10-16.5 6PR / 420/70-24 6PR	F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear
R1 Agricultural - Front	8-16	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	27x8.5-15, 6PR	2WD: 23x8.50-12; 4WD: 25x8.50-14
R3 Turf - Rear	41x14.00, 4PR	13.6-16
R4 Industrial - Front	10-16.5, 6PR	27x8.50-15 (4WD)
R4 Industrial - Rear	420/70-24, 6PR	15-19.5 R4 (4WD)

Quick Attach Loader System	BL150: Quick attach mechanism	Not Published
Loader Model	BL150	LA463
Loader Lift Height	BL150: 104.9 in	LA463: 95.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	BL150: 2,200 lb (at pivot pin)	LA463: 1,142 lb (at pivot pin)
Loader Breakout Force	BL150: 3,422 lb (at pivot pin, ground level)	LA463: 1,858 lbf (at 19.7 in) (19.7 in forward of pivot pin)

Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months	Not Published

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00	None tagged yet
