Kubota L2800 vs TYM 3015

Across 9 measurable specs, the TYM 3015 leads 7 categories to 0 (2 tied). Machine pages: Kubota L2800 and TYM 3015.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

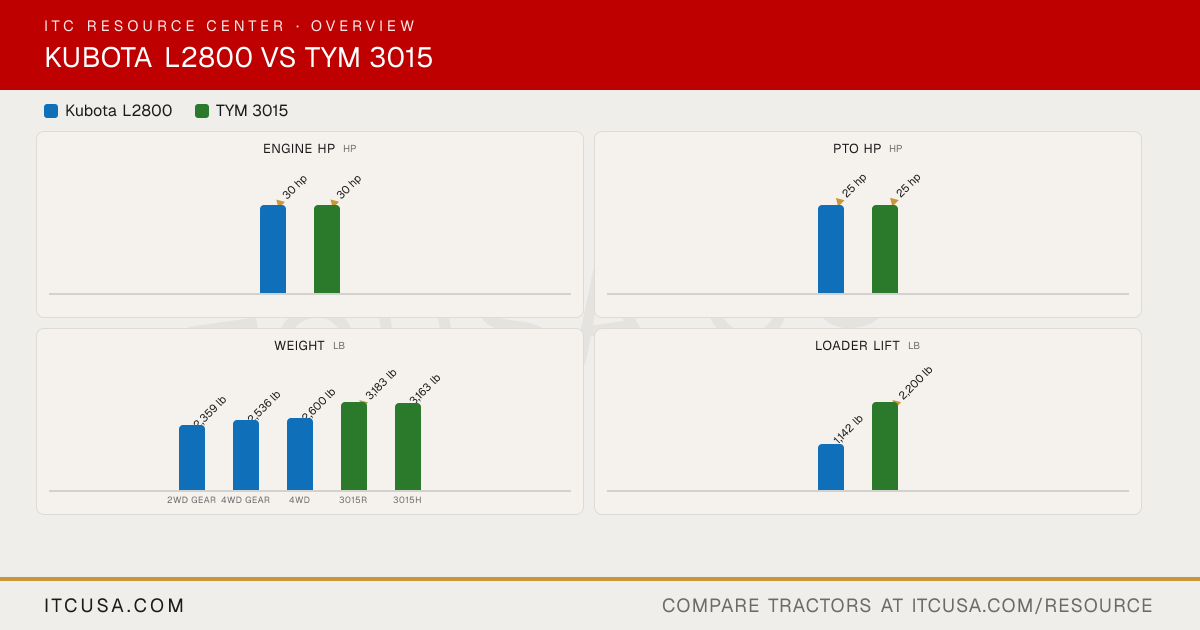

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2800	TYM3015

▶Engine
Engine Manufacturer	Kubota	TYM
Engine Model	Not Published	T1700N3
Engine Type	Not Published	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	91.5 in³	104.5 in³
Rated Engine Speed	2800 rpm	2600 rpm
Engine Power (Gross)	30 hp	30 hp
PTO Power	F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp	25 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Not Published	Dry element
Fuel System	Indirect injection	IDI (indirect injection)
Alternator	40 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	6.5 gpm	7.7 gpm
Steering Flow	4.0 gpm	4.2 gpm
Total Hydraulic Flow	10.5 gpm (6.5 + 4.0, computed)	11.9 gpm
Overall Hydraulic Pump Flow	Not Published	11.9 gpm
Hydraulic System Type	Open center	Dual gear pump
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Loader: 2 / Rear: 0
No. of Optional Remote Valves	Up to 3	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	7.1 gal
Coolant Capacity	Not Published	5.3 qt
Crankcase Capacity	Not Published	4.5 qt
Transmission / Hydraulic System Capacity	F (2WD): 7.1 gal; DT (4WD): 7.3 gal; HST (4WD): 6.2 gal	3015R: 9 gal; 3015H: 9.8 gal
Front Axle Fluid Capacity	4.8 qt	6.8 qt
▶PTO & Hitch
PTO Type	F (2WD gear), DT (4WD gear): transmission-driven with overrunning clutch; HST (4WD): live-continuous with overrunning clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,998 lb	3,306 lb
Hitch Lift Capacity (at 24”)	1,435 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Not Published	3015R: Synchromesh; 3015H: HST
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range	3015R: F12 x R12; 3015H: 3-Range
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph	3015R: 14.4 mph; 3015H: 18.8 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph	3015R: 14.3 mph; 3015H: 18.7 mph
Clutch	F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage	3015R: Dry single plate; 3015H: None (HST)
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Foldable ROPS (standard on all models)	Not Published
Steering	Integral type power steering	Hydrostatic power steering
Brakes	Wet disc type	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	51.4 in	56.3 in
Wheelbase	63.3 in	65.7 in
Ground Clearance	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in	14.4 in
Min. Turn Radius without Brakes	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (with brake applied)	L: 124.8 in; R: 121.3 in
Height to Top of ROPS	85.0 in	97.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (without 3-point hitch)	120.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	F (2WD gear): 2,359 lb; DT (4WD gear): 2,536 lb; HST (4WD): 2,600 lb	3015R: 3,183 lb; 3015H: 3,163 lb
Weight with ROPS and Loader	Not Published	HST: 4,171 lb (3,163 + 1,008, computed); Gear: 4,191 lb (3,183 + 1,008, computed)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 6PR / 41x14.00 4PR; R4 Industrial 10-16.5 6PR / 420/70-24 6PR
R1 Agricultural - Front	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16	8-16
R1 Agricultural - Rear	11.2-24	12.4-24
R3 Turf - Front	2WD: 23x8.50-12; 4WD: 25x8.50-14	27x8.5-15, 6PR
R3 Turf - Rear	13.6-16	41x14.00, 4PR
R4 Industrial - Front	27x8.50-15 (4WD)	10-16.5, 6PR
R4 Industrial - Rear	15-19.5 R4 (4WD)	420/70-24, 6PR
▶Loader & Attachments
Quick Attach Loader System	Not Published	BL150: Quick attach mechanism
Loader Model	LA463	BL150
Loader Lift Height	LA463: 95.3 in (at pivot pin)	BL150: 104.9 in
Loader Lift Capacity (Full Height)	LA463: 1,142 lb (at pivot pin)	BL150: 2,200 lb (at pivot pin)
Loader Breakout Force	LA463: 1,858 lbf (at 19.7 in) (19.7 in forward of pivot pin)	BL150: 3,422 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Not Published	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00

Find a Kubota dealer near you→Find a TYM dealer near you→

Kubota L2800 vs TYM 3015: Quick Answers

Which has more horsepower, the Kubota L2800 or the TYM 3015?

They are effectively tied: both machines are rated at 30 hp hp for engine hp.

Which has more PTO horsepower, the Kubota L2800 or the TYM 3015?

They are effectively tied: both machines are rated at 25 hp hp for pto hp.

Which is heavier, the Kubota L2800 or the TYM 3015?

The TYM 3015 leads on weight at 3,183 lb lb, compared to 2,600 lb lb for the Kubota L2800.

Which has more loader lift capacity, the Kubota L2800 or the TYM 3015?

The TYM 3015 leads on loader lift at 2,200 lb lb, compared to 1,142 lb lb for the Kubota L2800.

Which has more three-point hitch lift capacity, the Kubota L2800 or the TYM 3015?

The TYM 3015 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,435 lb lb for the Kubota L2800.
