Across 9 measurable specs, the TYM 3015 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and TYM 3015 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 1022 TYM 3015 Engine HP (hp) 21.5 hp ▲ 30 hpPTO HP (hp) 15.4 hp ▲ 25 hpWeight (lb) 1,433 lb ▲ 4,191 lbLoader Lift (lb) 992 lb ▲ 2,200 lb3-Pt Lift (24 in) (lb) 679 lb ▲ 2,425 lbLift Height (in) 72.7 in ▲ 104.9 inBreakout Force (lbf) 1,531 lbf ▲ 3,422 lbfHydraulic Flow (gpm) 7 gpm ▲ 12.3 gpmTravel Speed (mph) 7.8 mph ▲ 18.8 mph
Overview Loader Work PTO Work

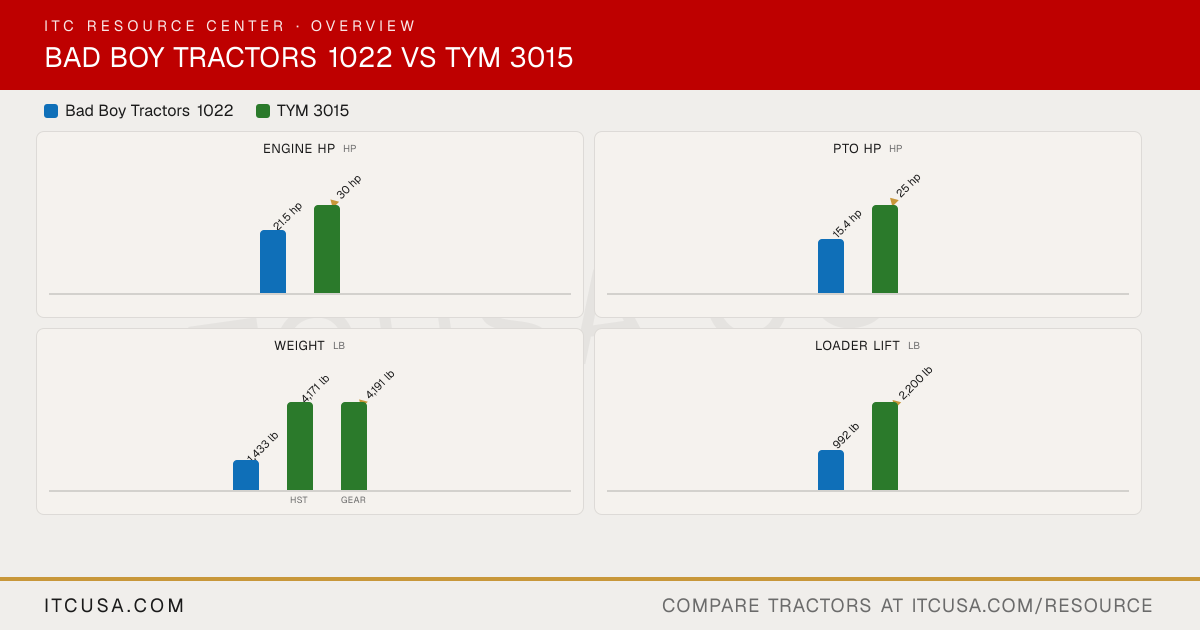

The headline numbers at a glance.
Bad Boy Tractors 1022 TYM 3015
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
1,433 lb
4,171 lb
▲ 4,191 lb
HST Gear
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 1022 TYM 3015
▶ EnginePTO Power 15.4 hp 25 hp Alternator 40 A, 12 V 50 A, 12 V Air Cleaner Single Dry Dry Element Engine Type Natural Aspiration 3-cylinder, naturally aspirated diesel Fuel System Diesel IDI Displacement 60.6 (993) 104.6 in³ No. of Cylinders 3 3 Rated Engine Speed 3,200 2600 rpm Cooling System Type Water cooled Not Published Engine Manufacturer Yanmar TYM T1700N3 Engine Power (Gross) 21.5 hp 30 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightTractor Weight (Base) 1,433 (650) — Weight with ROPS and Loader 1,433 lb HST: 4,171 lb; Gear: 4,191 lb Weight with Cab and Loader Not Published Not Applicable ▶ WarrantyWarranty Length & Coverage 7-year powertrain warranty Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ HydraulicsPump Type Single Gear Pump with Flow Divider Single Gear Pump Steering Flow 2.11 gpm 8 gpm Implement Flow 4.17 (15.8) 4.3 gpm Total Hydraulic Flow 6.97 (26.4) 12.3 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 6.97 gpm (max total flow) 12.3 gpm No. of Optional Remote Valves Up to 1 Up to 4 No. of Standard Remote Valves Not Published 0 ▶ PTO & HitchPTO Rear 540 rpm 560 rpm PTO Type Independent Independent Lift Control Type Position Position control Hitch Lift Capacity 1,100 lb 3,306 lb Mid-PTO Availability Optional (2,500 rpm) Not Published Category, 3-Point Hitch Category I (N) Category I Hitch Lift Capacity (at 24”) 679 lb 2,425 lb ▶ Tire OptionsR3 Turf - Rear TURF R 16X12.00-12 Not Published R3 Turf - Front TURF F 16X7.50-8 Not Published Tire Size & Options R1 (BAR) / R3 (TURF) / R4 (IND) R1 Agricultural, R4 Industrial R4 Industrial - Rear 26X12-12 43x16.00-20 R4 Industrial - Front 18X8.50-10 28x8.50-15 R1 Agricultural - Rear BAR R 24X12.00-12 12.4-24 R1 Agricultural - Front BAR F 16X7.50-9 8.0-16 ▶ Fluid CapacityCoolant Capacity 0.9 gal 5.3 qt Crankcase Capacity 0.48 gal 4.5 qt Fuel Tank Capacity 6.6 gal 7.1 gal Front Axle Fluid Capacity 2.6 qt 1.7 qt Transmission / Hydraulic System Capacity 3.6 gal HST: 9.8 gal; Gear: 8.9 gal ▶ Loader & AttachmentsLoader Lift Height 72.7 in (under level bucket); 78.5 in (pivot pin) 104.9 in Loader Breakout Force 1,531 lb (at pivot pin, ground level) 3,422 lb Quick Attach Loader System SSQA BL150: Quick attach assembly (lever-lock) Loader Lift Capacity (Full Height) 992 lb (at pivot pin) 2,200 lb ▶ Transmission & DrivetrainClutch Dry single plate HST: Not Applicable; Gear: Dry Single Plate No. of Speeds 2 Range HST: 3-Range; Gear: F12 x R12 Transmission Type Hydrostatic transmission (HST) HST: HST; Gear: Synchromesh Max Travel Speed (Forward) 7.8 mph HST: 18.8 mph; Gear: 14.4 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock ▶ Chassis, Steering & ControlsBrakes Wet disc Wet, Multi-disc Steering Hydrostatic Hydrostatic Frame Type Sub-compact tractor, 4WD Not Published Front Axle Type Center pin front axle Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Standard adjustable seat Comfortable suspension seat ▶ Dimensions & ManeuverabilityWheelbase 53.1 (1,350) 65.7 in Overall Width 44.5 (1,130) 56.3 in Overall Length 94.2 (2,394) — Ground Clearance 8.3 in. 14.4 in Height to Top of ROPS 86.6 (2,200) 97.3 in Height to Top of Cab Model Not Published Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 86.6 (2,200) 104.7 in Overall Length with 3-Point Hitch 94.2 in 120.9 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 1022 vs TYM 3015: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the TYM 3015? The TYM 3015 leads on engine hp at 30 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM 3015? The TYM 3015 leads on pto hp at 25 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the TYM 3015? The TYM 3015 leads on weight at 4,191 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM 3015? The TYM 3015 leads on loader lift at 2,200 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM 3015? The TYM 3015 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022. More Head-to-Heads
