Bad Boy Tractors 3026 vs TYM 3015

Across 9 measurable specs, the TYM 3015 leads 9 categories to 0. Machine pages: Bad Boy Tractors 3026 and TYM 3015.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

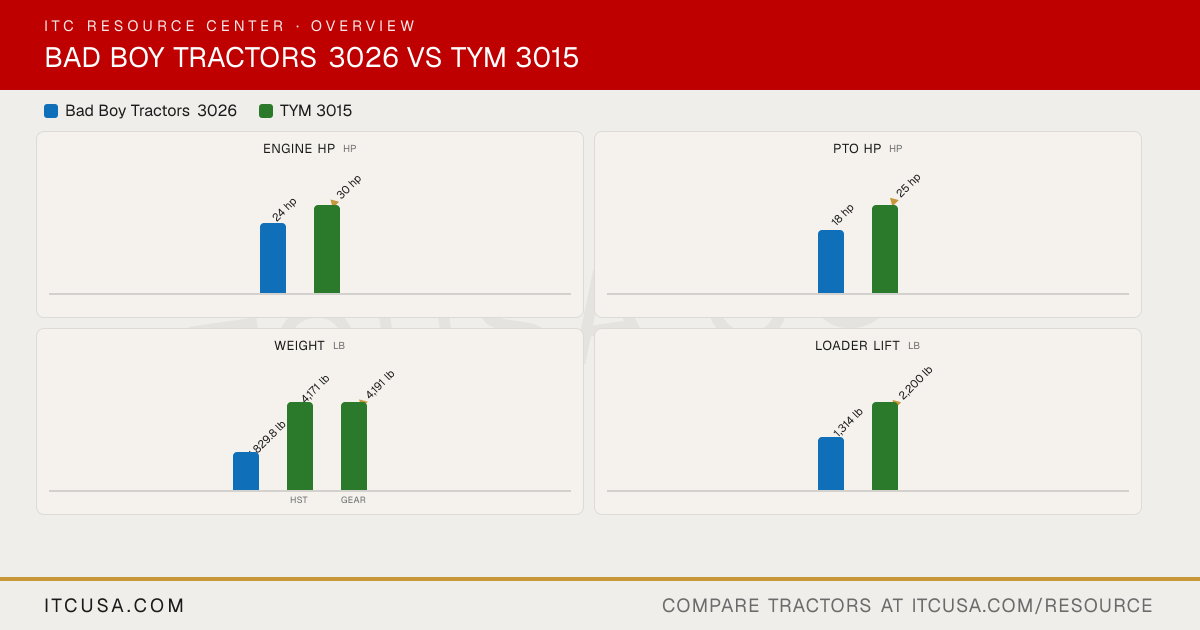

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	TYM3015

▶Engine
PTO Power	18 hp	25 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Dry, Element	Dry Element
Engine Type	3 CYL, Water Cooled, Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel	IDI
Displacement	71.7 in³	104.6 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water Cooled	Not Published
Engine Manufacturer	TYM	TYM T1700N3
Engine Power (Gross)	24 hp	30 hp
Engine Emissions Constraints	Final Tier4	Tier 4
▶Weight
Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Single Gear Pump
Steering Flow	3.1 gpm	8 gpm
Implement Flow	4.3 gpm	4.3 gpm
Total Hydraulic Flow	7.4 gpm 28.0 lpm	12.3 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	12.3 gpm
No. of Optional Remote Valves	Optional (Up To 1)	Up to 4
No. of Standard Remote Valves	0	0
▶PTO & Hitch
PTO Rear	540 / 960 rpm @ 2,600 rpm	560 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,433 lbs	3,306 lb
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Not Published
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	974 lb	2,425 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	14X17.5	43x16.00-20
R4 Industrial - Front	25X8.50-14	28x8.50-15
R1 Agricultural - Rear	11.2-20 8PR	12.4-24
R1 Agricultural - Front	7-16 6PR	8.0-16
▶Fluid Capacity
Coolant Capacity	1.21 gal	5.3 qt
Crankcase Capacity	0.79 gal	4.5 qt
Fuel Tank Capacity	6.08 gal	7.1 gal
Front Axle Fluid Capacity	0.79 gal	1.7 qt
Transmission / Hydraulic System Capacity	2.90 gal	HST: 9.8 gal; Gear: 8.9 gal
▶Loader & Attachments
Loader Lift Height	86 in.	104.9 in
Loader Breakout Force	1,960 lbs.	3,422 lb
Quick Attach Loader System	SSQA	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	1,314 lbs.	2,200 lb
▶Transmission & Drivetrain
Clutch	Dry Single Plate	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	3 Range	HST: 3-Range; Gear: F12 x R12
Transmission Type	Hydrostatic (HST)	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	14.8 mph	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Differential Lock & Limited Slip Options	Differential Lock	Differential lock
▶Chassis, Steering & Controls
Brakes	Wet, Multi-Disc	Wet, Multi-disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Comfortable suspension seat
▶Dimensions & Maneuverability
Wheelbase	65.7"	65.7 in
Overall Width	53.8"	56.3 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	14.4 in
Height to Top of ROPS	91.4"	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	Not Published
Min. Turn Radius without Brakes	46°	104.7 in
Overall Length with 3-Point Hitch	110 in	120.9 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Bad Boy Tractors 3026 vs TYM 3015: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the TYM 3015?

The TYM 3015 leads on engine hp at 30 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the TYM 3015?

The TYM 3015 leads on pto hp at 25 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the TYM 3015?

The TYM 3015 leads on weight at 4,191 lb lb, compared to 1,829.8 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the TYM 3015?

The TYM 3015 leads on loader lift at 2,200 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the TYM 3015?

The TYM 3015 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
