TYM 4720 vs TYM 3620 | Side-by-side comparison | ITC Resource Center
Compare Tractors

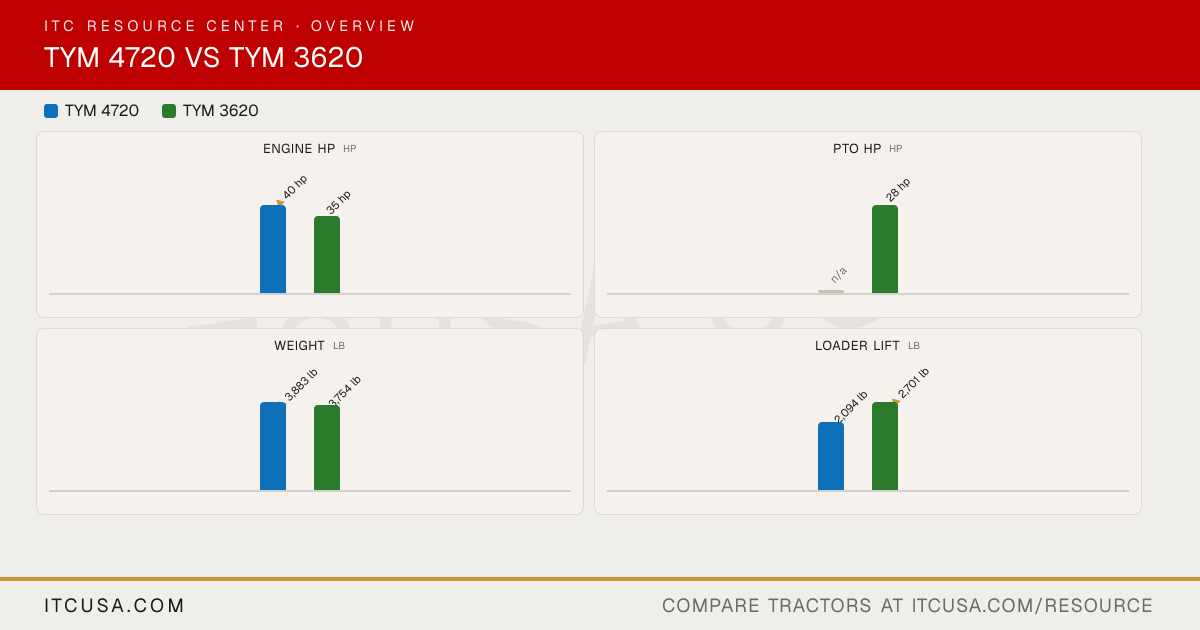

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM4720
TYM3620
Engine Manufacturer
Kukje
TYM
Engine Model
A2300N2
T1700N2
Engine Type
Diesel, liquid-cooled
3-cylinder, naturally aspirated diesel
No. of Cylinders
4
3
Displacement
139 in³
104.5 in³
Rated Engine Speed
2600 rpm
2500 rpm
Engine Power (Gross)
40 hp
35 hp
PTO Power
Not Published
28 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Not Published
Dry element
Fuel System
Not Published
IDI (indirect injection)
Alternator
45 A, 12 V
50 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
8.9 gpm
7.7 gpm
Steering Flow
Not Published
4.2 gpm
Total Hydraulic Flow
13.2 gpm
11.9 gpm
Overall Hydraulic Pump Flow
Not Published
11.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
None standard (optional, up to 4)
No. of Optional Remote Valves
Up to 2
Up to 4
Fuel Tank Capacity
11.1 gal
11.8 gal
Coolant Capacity
9.8 qt
6.0 qt
Crankcase Capacity
6 qt
4.5 qt
Transmission / Hydraulic System Capacity
9.7 gal
3620R: 10.3 gal; 3620H: 11.1 gal
Front Axle Fluid Capacity
Not Published
6.8 qt
PTO Type
Live (2-stage clutch)
Independent
PTO Rear
540 / 1000 rpm
540/750 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2,580 lb
3,306 lb
Hitch Lift Capacity (at 24”)
Not Published
2,425 lb
Lift Control Type
Not Published
Position control
Transmission Type
Synchromesh
3620R: Synchromesh; 3620H: HST
No. of Speeds
12F/12R
3620R: F16 x R16; 3620H: 4-Range
Max Travel Speed (Forward)
Not Published
3620R: 16 mph; 3620H: 19.5 mph
Max Travel Speed (Reverse)
Not Published
3620R: 15.2 mph; 3620H: 19.5 mph
Clutch
Not Published
3620R: Dry single type; 3620H: No clutch (HST)
Differential Lock & Limited Slip Options
Not Published
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic
Brakes
Wet disc
Wet, multi-disc
Seat Suspension & Adjustability
Not Published
Suspension seat
Front Axle Type
4WD (MFWD)
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
127 in
127.4 in
Overall Width
61 in
64.9 in
Wheelbase
71 in
71.1 in
Ground Clearance
12.2 in
15.5 in
Min. Turn Radius without Brakes
Not Published
L: 128.7 in; R: 126.0 in
Height to Top of ROPS
88 in
98.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
3,883 lb
3,754 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
8-18
9.5-16
R1 Agricultural - Rear
12.4-28
12.4-28
R3 Turf - Front
29x12.00-15
27x8.5-15 / 29x12.5-15
R3 Turf - Rear
44x18.00-20
41x14-20 / 44x18-20
R4 Industrial - Front
12-16.5
10x16.5
R4 Industrial - Rear
17.5L-24
420/70x24
Quick Attach Loader System
Not Published
BL200: Quick attach mechanism
Loader Model
BL20
BL200
Loader Lift Height
BL20: 103 in
BL200: 106.6 in
Loader Lift Capacity (Full Height)
BL20: 2,094 lb
BL200: 2,701 lb
Loader Breakout Force
BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin)
BL200: 3,660 lb
Warranty Length & Coverage
Not Published
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
