TYM 4720 vs TYM 4215C | Side-by-side comparison | ITC Resource Center
Compare Tractors

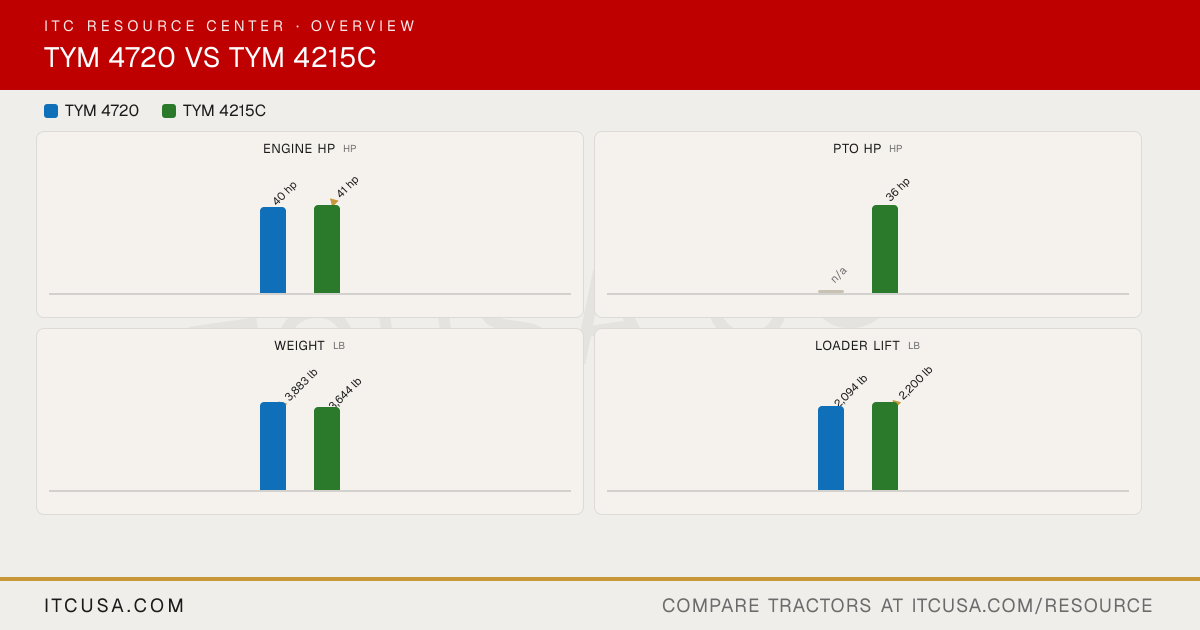

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM4720
TYM4215C
Engine Manufacturer
Kukje
TYM
Engine Model
A2300N2
T2000N2
Engine Type
Diesel, liquid-cooled
4-cylinder, naturally aspirated diesel
No. of Cylinders
4
4
Displacement
139 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
40 hp
41 hp
PTO Power
Not Published
36 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Not Published
Dry element
Fuel System
Not Published
IDI
Alternator
45 A, 12 V
70 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
8.9 gpm
11.4 gpm
Steering Flow
Not Published
5.2 gpm
Total Hydraulic Flow
13.2 gpm
16.5 gpm
Overall Hydraulic Pump Flow
Not Published
16.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
Rear: 0 (loader: 2)
No. of Optional Remote Valves
Up to 2
Up to 4
Fuel Tank Capacity
11.1 gal
7.1 gal
Coolant Capacity
9.8 qt
5.8 qt
Crankcase Capacity
6 qt
4.8 qt
Transmission / Hydraulic System Capacity
9.7 gal
9.8 gal
Front Axle Fluid Capacity
Not Published
6.8 qt
PTO Type
Live (2-stage clutch)
Independent
PTO Rear
540 / 1000 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2,580 lb
3,306 lb
Hitch Lift Capacity (at 24”)
Not Published
2,425 lb
Lift Control Type
Not Published
Position control
Transmission Type
Synchromesh
HST (hydrostatic)
No. of Speeds
12F/12R
3-range hydrostatic
Max Travel Speed (Forward)
Not Published
18 mph
Max Travel Speed (Reverse)
Not Published
17.95 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic
Brakes
Wet disc
Wet, multi-disc
Seat Suspension & Adjustability
Not Published
Suspension seat
Front Axle Type
4WD (MFWD)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
127 in
120.9 in
Overall Width
61 in
55.6 in
Wheelbase
71 in
65.7 in
Ground Clearance
12.2 in
13.1 in
Min. Turn Radius without Brakes
Not Published
124.8 in (left); 121.3 in (right)
Height to Top of ROPS
88 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
89.3 in
Tractor Weight (Base)
3,883 lb
3,644 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
4,652 lb
Tire Size & Options
Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
8-18
7-16
R1 Agricultural - Rear
12.4-28
11.2-24
R3 Turf - Front
29x12.00-15
27x8.5-15, 6PR
R3 Turf - Rear
44x18.00-20
41x14.00, 4PR
R4 Industrial - Front
12-16.5
25x8.5-14, 6PR
R4 Industrial - Rear
17.5L-24
380/70-19.5, 6PR (standard); 15-19.5 (option)
Quick Attach Loader System
Not Published
BL150C: quick attachment assembly
Loader Model
BL20
BL150C
Loader Lift Height
BL20: 103 in
BL150C: 104.9 in
Loader Lift Capacity (Full Height)
BL20: 2,094 lb
BL150C: 2,200 lb
Loader Breakout Force
BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin)
BL150C: 3,422 lb
Warranty Length & Coverage
Not Published
Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
