TYM 4820C vs John Deere 4320 | Side-by-side comparison | ITC Resource Center
Compare Tractors

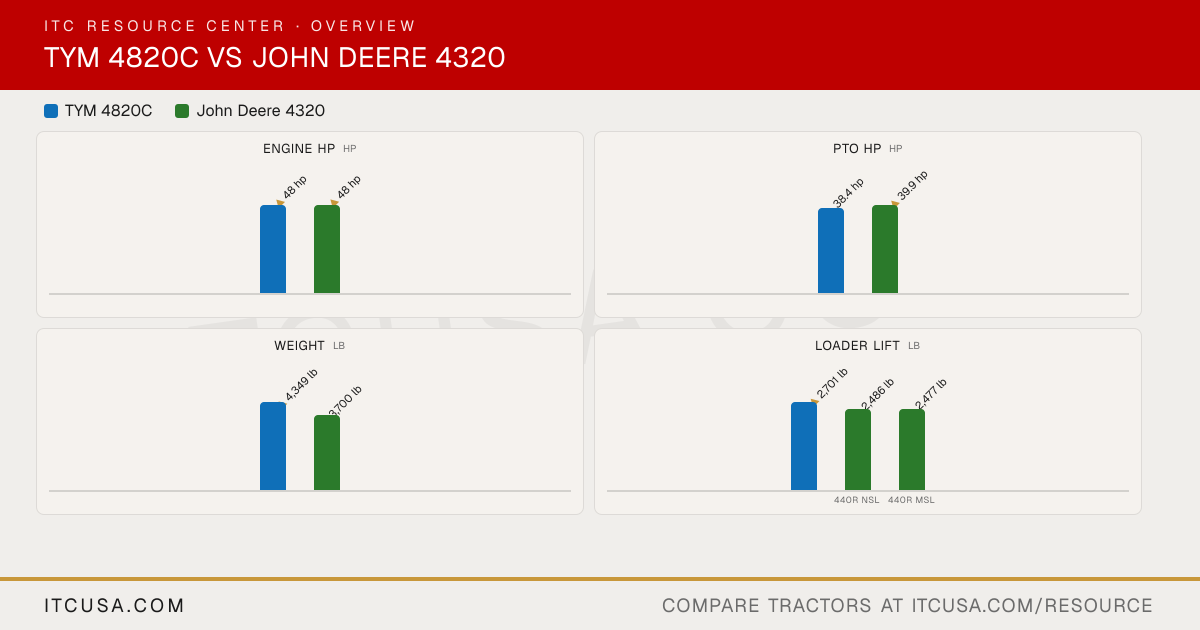

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Steering
Hydrostatic
Power steering
Brakes
Wet, multi-disc
Wet disk
Seat Suspension & Adjustability
Suspension seat
Air ride seat optional
Front Axle Type
4WD (selectable 2WD/4WD)
Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating
Not Published
3,528 lb
Drawbar Capacity
Not Published
1,103 lb
Overall Width
64.9 in
65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase
71.1 in
71.5 in
Ground Clearance
15.5 in
Not Published
Min. Turn Radius without Brakes
L: 128.7 in; R: 126.0 in
Not Published
Height to Top of ROPS
Not Published
97.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
97 in
92.4 in
Overall Length
127.4 in (with 3-point hitch)
128.2 in (with 3-point hitch)
Tractor Weight (Base)
4,349 lb
3,700 lb (open station); 4,345 lb (cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front
9.5-16
8.00-16
R1 Agricultural - Rear
13.6-26
13.6-28
R3 Turf - Front
27x8.5-15 / 29x12.5-15
27x10.5-15
R3 Turf - Rear
41x14-20 / 44x18-20
44x18.00-20
R4 Industrial - Front
12-16.5
10.00-16.5
R4 Industrial - Rear
17.5Lx24
17.5L-24
Quick Attach Loader System
BL200C: Quick attach mechanism
Not Published
Loader Model
BL200C
440R (NSL and MSL)
Loader Lift Height
BL200C: 106.6 in
440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)
BL200C: 2,701 lb (at pivot pin)
440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
