John Deere 4320 vs TYM 4820C
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the John Deere 4320 leads 5 categories to 3 (1 tied). Machine pages: John Deere 4320 and TYM 4820C.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

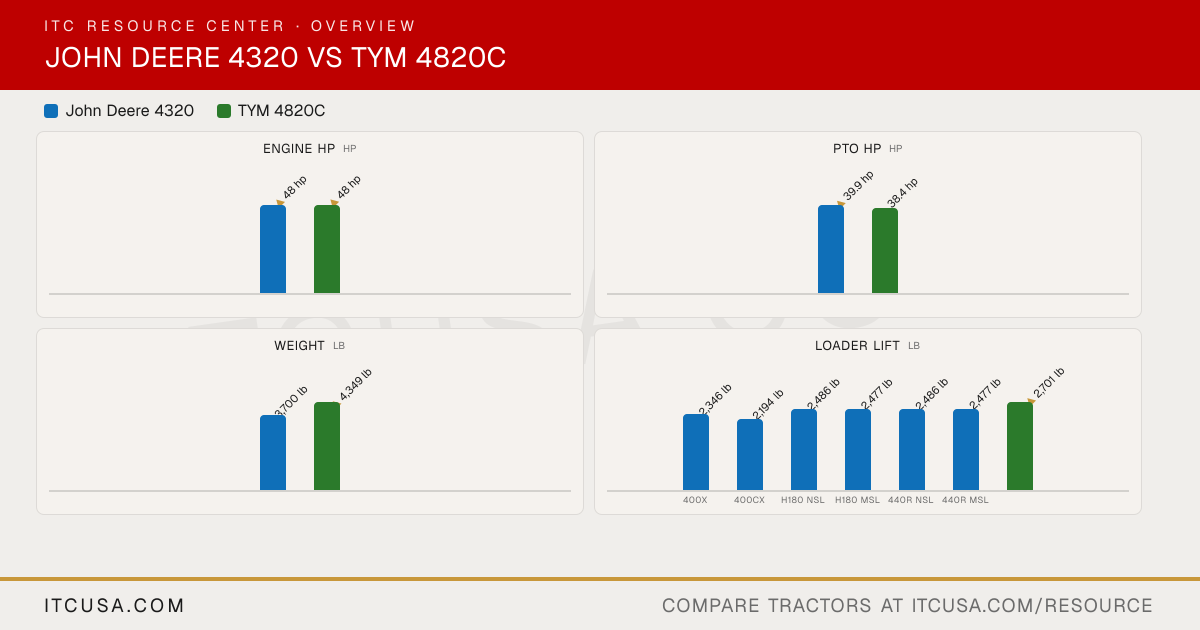

Category Verdict
| Spec | John Deere 4320 | TYM 4820C |
|---|---|---|
| Engine HP (hp) | 48 hp | 48 hp |
| PTO HP (hp) | ▲ 39.9 hp | 38.4 hp |
| Weight (lb) | 3,700 lb | ▲ 4,349 lb |
| Loader Lift (lb) | 2,486 lb | ▲ 2,701 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,500 lb | 2,425 lb |
| Lift Height (in) | ▲ 112.8 in | 106.6 in |
| Breakout Force (lbf) | ▲ 3,934 lbf | 3,660 lbf |
| Hydraulic Flow (gpm) | ▲ 17.1 gpm | 16.5 gpm |
| Travel Speed (mph) | 17.3 mph | ▲ 19.5 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere4320 | TYM4820C |
|---|
| Engine Manufacturer | John Deere | TYM |
|---|---|---|
| Engine Model | PowerTech 4024T | T2300N2 |
| Engine Type | 4-cylinder turbocharged liquid-cooled diesel, direct injection | 4-cylinder, naturally aspirated diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 149 in³ | 139.5 in³ |
| Rated Engine Speed | 2400 rpm | 2600 rpm |
| Engine Power (Gross) | 48 hp | 48 hp |
| PTO Power | 39.9 hp | 38.4 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry type with safety element | Dry element |
| Fuel System | Direct injection, mechanical fuel pump | IDI (indirect injection) |
| Alternator | 70 A | 70 A, 12 V |
John Deere 4320 vs TYM 4820C: Quick Answers
- Which has more horsepower, the John Deere 4320 or the TYM 4820C?
- They are effectively tied: both machines are rated at 48 hp hp for engine hp.
- Which has more PTO horsepower, the John Deere 4320 or the TYM 4820C?
- The John Deere 4320 leads on pto hp at 39.9 hp hp, compared to 38.4 hp hp for the TYM 4820C.
- Which is heavier, the John Deere 4320 or the TYM 4820C?
- The TYM 4820C leads on weight at 4,349 lb lb, compared to 3,700 lb lb for the John Deere 4320.
- Which has more loader lift capacity, the John Deere 4320 or the TYM 4820C?
- The TYM 4820C leads on loader lift at 2,701 lb lb, compared to 2,486 lb lb for the John Deere 4320.
- Which has more three-point hitch lift capacity, the John Deere 4320 or the TYM 4820C?
- The John Deere 4320 leads on 3-pt lift (24 in) at 2,500 lb lb, compared to 2,425 lb lb for the TYM 4820C.
