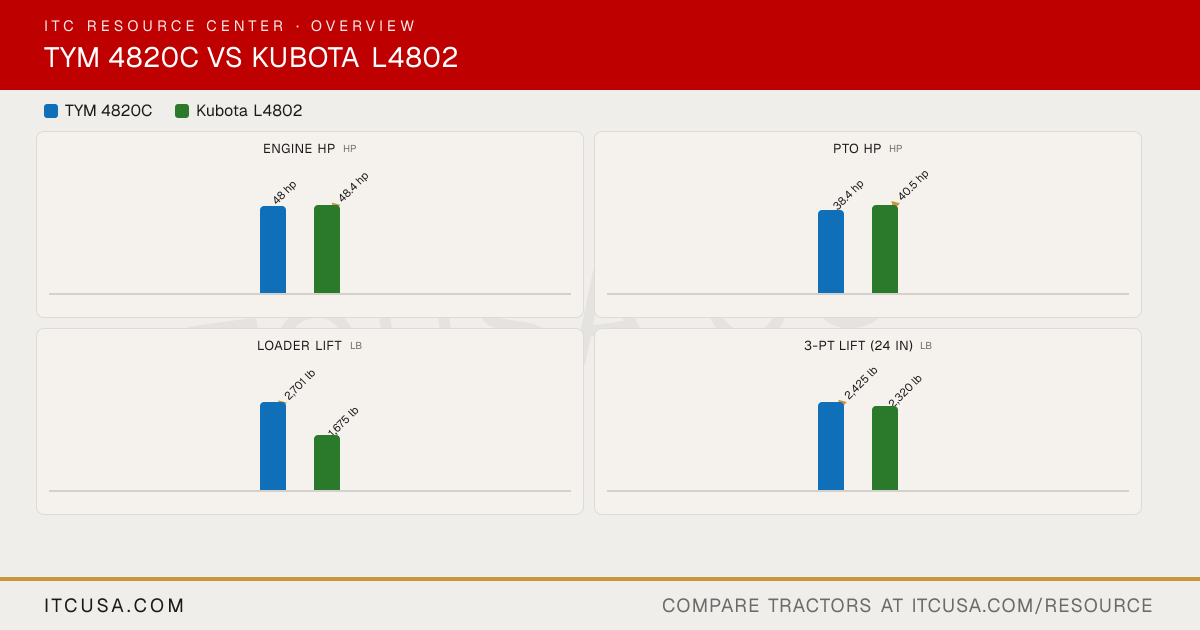

▶ EngineEngine Manufacturer TYM Kubota Engine Model T2300N2 V2403-CR-E5 Engine Type 4-cylinder, naturally aspirated diesel Direct injection, vertical, water-cooled 4-cycle, diesel No. of Cylinders 4 4 Displacement 139.5 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 48 hp 48.4 hp PTO Power 38.4 hp 39 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Dry type, primary and secondary element Fuel System IDI (indirect injection) Direct injection Alternator 70 A, 12 V 45 A, 12 V ▶ HydraulicsPump Type Dual gear pump Not Published Implement Flow 11.4 gpm 7.8 gpm Steering Flow 5.2 gpm 4.7 gpm Total Hydraulic Flow 16.5 gpm 12.5 gpm (7.8 + 4.7, computed) Overall Hydraulic Pump Flow 16.5 gpm 12.5 gpm (7.8 + 4.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 4 Not Published No. of Optional Remote Valves Not Published Optional: double-acting valve, or double-acting valve with float position (float valve as second segment only) ▶ Fluid CapacityFuel Tank Capacity 11.8 gal 13.5 gal Coolant Capacity 8.3 qt 6.9 qt Crankcase Capacity 4.8 qt 8.7 qt Transmission / Hydraulic System Capacity 4820C: 10.3 gal; 4820CH: 11.1 gal 10.6 gal Front Axle Fluid Capacity 6.8 qt 6.9 qt ▶ PTO & HitchPTO Type Independent Live independent PTO with hydraulic clutch PTO Rear 540/750 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I SAE Category I Hitch Lift Capacity 3,306 lb 2,870 lb Hitch Lift Capacity (at 24”) 2,425 lb 2,320 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type 4820C: Synchromesh; 4820CH: HST Hydrostatic transmission (3-range) No. of Speeds 4820C: F16 x R16; 4820CH: 4-Range 3-range Max Travel Speed (Forward) 4820C: 16 mph; 4820CH: 19.5 mph 15.8 mph Max Travel Speed (Reverse) 4820C: 15.2 mph; 4820CH: 19.5 mph 14.2 mph Clutch 4820C: Dry single type; 4820CH: N/A (HST) Not Applicable Differential Lock & Limited Slip Options Standard differential lock Rear differential lock, pedal operated ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic power steering Brakes Wet, multi-disc Mechanical, wet disc type Seat Suspension & Adjustability Suspension seat Suspension seat with fore/aft travel adjustment and suspension tension adjustment Front Axle Type 4WD (selectable 2WD/4WD) Cast-iron front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,430 lb ▶ Dimensions & ManeuverabilityOverall Width 64.9 in 62.2 in Wheelbase 71.1 in 72.6 in Ground Clearance 15.5 in 15.2 in Min. Turn Radius without Brakes L: 128.7 in; R: 126.0 in 8.5 ft (with brake applied) Height to Top of ROPS Not Published 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 97 in Not Published Overall Length 127.4 in (with 3-point hitch) 120.3 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 4,349 lb 3,549 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Agricultural; Turf; Industrial (R4) R1 Agricultural - Front 9.5-16 8.3-16 R1 Agricultural - Rear 13.6-26 14.9-24 R3 Turf - Front 27x8.5-15 / 29x12.5-15 27X10.5-15 R3 Turf - Rear 41x14-20 / 44x18-20 44X18-20 R4 Industrial - Front 12-16.5 10.0-16.5 R4 Industrial - Rear 17.5Lx24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System BL200C: Quick attach mechanism LA766 2-Lever Quick Coupler Loader Model BL200C LA766 Loader Lift Height BL200C: 106.6 in 105.2 in (at pivot pin) Loader Lift Capacity (Full Height) BL200C: 2,701 lb (at pivot pin) 1,676 lb (at pivot pin, max. height) Loader Breakout Force BL200C: 3,660 lb (at pivot pin, ground level) Not Published ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit
