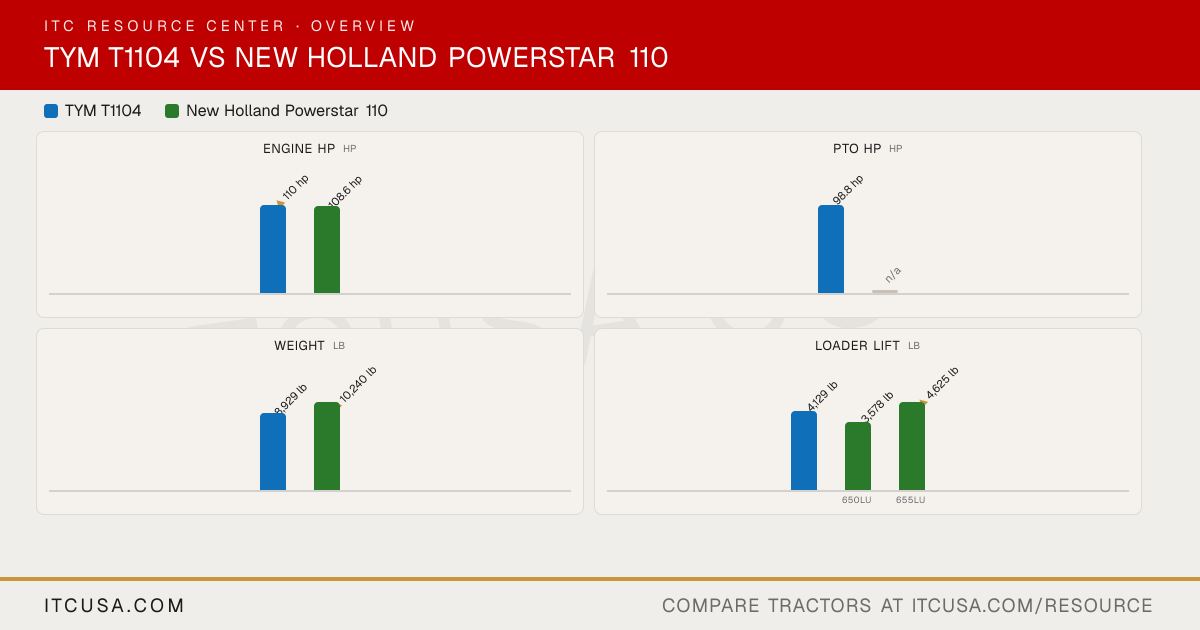

▶ EngineEngine Manufacturer Doosan Infracore Fiat Powertrain Technologies (FPT) Engine Model D34P F36 Engine Type 4-cylinder, turbocharged diesel 4-cylinder diesel, turbocharged and aftercooled No. of Cylinders 4 4 Displacement 208 in³ 220 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 110 hp 108.6 hp PTO Power 98.8 hp Not Published Engine Emissions Constraints Tier 4 Stage V Compliant with ECOBlue Compact HI-eSCR + Light CEGR Cooling System Type Liquid-cooled Not Published Air Cleaner Dual dry Not Published Fuel System CRDI Common rail fuel injection Alternator 110 A, 12 V Not Published ▶ HydraulicsPump Type Dual gear pump Open center, dual pumps: implement pump plus dedicated steering pump Implement Flow 14.1 gpm 21.7 gpm Steering Flow 7.1 gpm 9.7 gpm Total Hydraulic Flow 21.3 gpm 31.4 gpm (21.7 + 9.7, computed) Overall Hydraulic Pump Flow 21.3 gpm 31.4 gpm (21.7 + 9.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 3 2 rear remotes (four couplers) No. of Optional Remote Valves Not Published 1 (3rd rear remote, optional); 3rd rear remote with 1 diverter (optional) ▶ Fluid CapacityFuel Tank Capacity 29.1 gal (DEF 5.3 gal) 34.3 gal Coolant Capacity 17.4 qt Not Published Crankcase Capacity 16.8 qt Not Published Transmission / Hydraulic System Capacity 19.8 gal Not Published Front Axle Fluid Capacity 18.4 qt Not Published ▶ PTO & HitchPTO Type Independent Fully-independent, electrohydraulic, wet-clutch PTO Rear 540/750/1000 rpm 540/1000 rpm (interchangeable) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 6,860 lb Not Published Hitch Lift Capacity (at 24”) 5,490 lb 4,123 lb (standard); 6,938 lb (with 2 aux rams, optional) Lift Control Type Position/Draft/Elec 12x12: mechanical draft control; Dual Command: electronic draft control ▶ Transmission & DrivetrainTransmission Type Power shuttle & Hi-Lo shift 12x12 power shuttle; 20x20 power shuttle with creeper; 24x24 Dual Command hi-lo power shuttle (all available); column-mounted electronic power shuttle No. of Speeds F32 x R32 12x12, 20x20 with creeper, or 24x24 Dual Command (all available) Max Travel Speed (Forward) 24.6 mph 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Wet multi plate Not Published Differential Lock & Limited Slip Options Not Published Electrohydraulic differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Not Published Brakes Wet disc Not Published Seat Suspension & Adjustability Not Published Air-suspension cloth seat Front Axle Type 4WD 4WD heavy-duty, class 1.5 front axle (standard) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 86 in 56.9 in min to 84.8 in max (front wheels); 56.1 in min to 84.2 in max (rear wheels) Wheelbase 90.6 in 92.5 in Ground Clearance 18.3 in Not Published Min. Turn Radius without Brakes 162 in Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 107 in 103.6 in Overall Length 167.3 in (with 3-point hitch) 158.2 in ▶ WeightTractor Weight (Base) 8,929 lb 10,240 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 420/85R38 rear (reference tire for weight and dimensions); rear tires as large as R38 available R1 Agricultural - Front FSTR 380/85R24 TL (14.9R24) Not Published R1 Agricultural - Rear FSTR 460/85R34 TL (18.4R34) Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid-steer-style or Euro-style quick attach faceplate (available, 650LU and 655LU) Loader Model TX110SL 650LU (NSL); 655LU (MSL) Loader Lift Height TX110SL: 144.4 in 650LU: 149.7 in; 655LU: 149.7 in (max lift height to pivot pin) Loader Lift Capacity (Full Height) TX110SL: 4,129 lb (at pivot pin) 650LU: 3,578 lb; 655LU: 4,625 lb (at 31.5 in from pivot point) Loader Breakout Force TX110SL: 6,025 lb (at pivot pin, ground level) Not Published ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months Not Published
