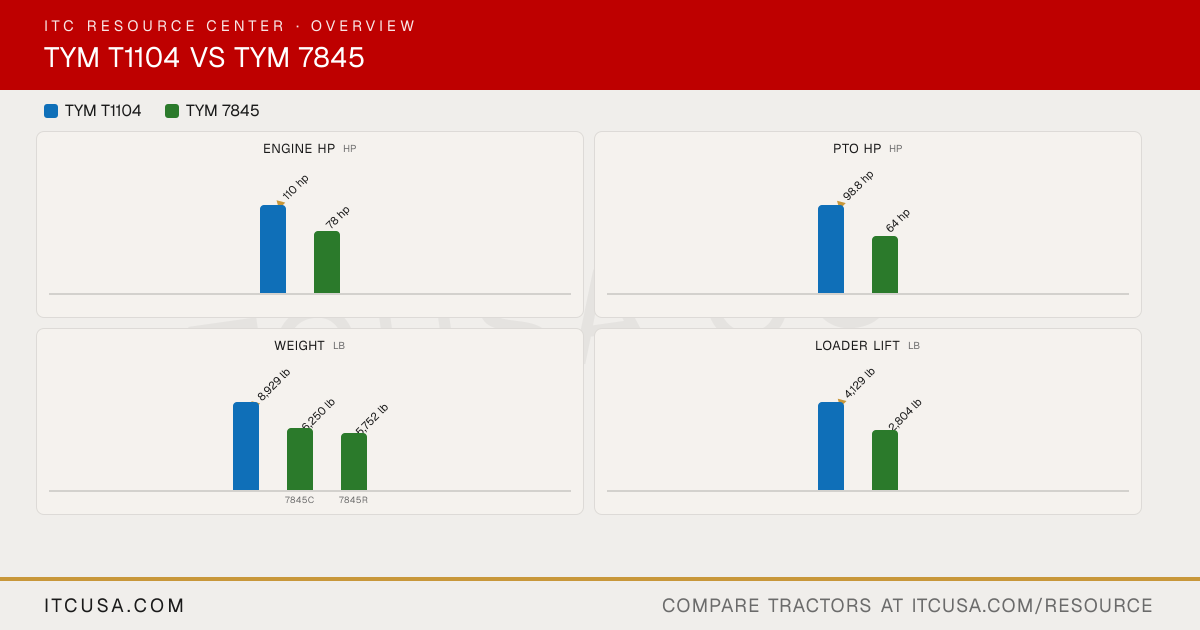

▶ EngineEngine Manufacturer Doosan Infracore Kukje Engine Model D34P 7845C: D3400T10-UTC-3; 7845R: D3400T1-UTR-3 Engine Type 4-cylinder, turbocharged diesel Turbocharged, direct injection, liquid-cooled diesel No. of Cylinders 4 4 Displacement 208 in³ 208 in³ Rated Engine Speed 2300 rpm 2500 rpm Engine Power (Gross) 110 hp 78 hp PTO Power 98.8 hp 64 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual dry Dry, double filter element Fuel System CRDI Direct injection Alternator 110 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Dual gear pump Dual pumps (separate steering and main pumps) Implement Flow 14.1 gpm Not Published Steering Flow 7.1 gpm Not Published Total Hydraulic Flow 21.3 gpm 19.3 gpm Overall Hydraulic Pump Flow 21.3 gpm Not Published Hydraulic System Type Open center Electric over hydraulic control (position, draft & mixed) Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 3 Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 29.1 gal (DEF 5.3 gal) 23.8 gal Coolant Capacity 17.4 qt Not Published Crankcase Capacity 16.8 qt Not Published Transmission / Hydraulic System Capacity 19.8 gal Not Published Front Axle Fluid Capacity 18.4 qt Not Published ▶ PTO & HitchPTO Type Independent Independent (6-spline shaft) PTO Rear 540/750/1000 rpm Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 6,860 lb 3,820 lb Hitch Lift Capacity (at 24”) 5,490 lb 2,526 lb Lift Control Type Position/Draft/Elec Position, draft & mixed ▶ Transmission & DrivetrainTransmission Type Power shuttle & Hi-Lo shift Power shuttle (hydraulic shuttle); main shifting fully synchronized (4-speed) No. of Speeds F32 x R32 16F/16R Max Travel Speed (Forward) 24.6 mph 24.8 mph Max Travel Speed (Reverse) Not Published 25.6 mph Clutch Wet multi plate Multi, wet Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Deluxe seat with lumbar adjustment Front Axle Type 4WD 4WD, heavy-duty front axle, 56-degree steering angle each direction, no drag link Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 86 in 74.5 in Wheelbase 90.6 in 86.6 in Ground Clearance 18.3 in 18.3 in Min. Turn Radius without Brakes 162 in Not Published Height to Top of ROPS Not Published 102.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 107 in 107.8 in Overall Length 167.3 in (with 3-point hitch) 152.7 in ▶ WeightTractor Weight (Base) 8,929 lb 7845C: 6,250 lb; 7845R: 5,752 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Agricultural: 11.2x24 front / 16.9x30 rear R1 Agricultural - Front FSTR 380/85R24 TL (14.9R24) 11.2x24 R1 Agricultural - Rear FSTR 460/85R34 TL (18.4R34) 16.9x30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published BL45: Quick attachment bucket mount Loader Model TX110SL BL45 Loader Lift Height TX110SL: 144.4 in BL45: 111.7 in Loader Lift Capacity (Full Height) TX110SL: 4,129 lb (at pivot pin) BL45: 2,804 lb (at pivot pins, full height) Loader Breakout Force TX110SL: 6,025 lb (at pivot pin, ground level) BL45: 5,467 lbf (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months Four-year limited warranty
