TYM T234 vs TYM 2400 | Side-by-side comparison | ITC Resource Center
Compare Tractors

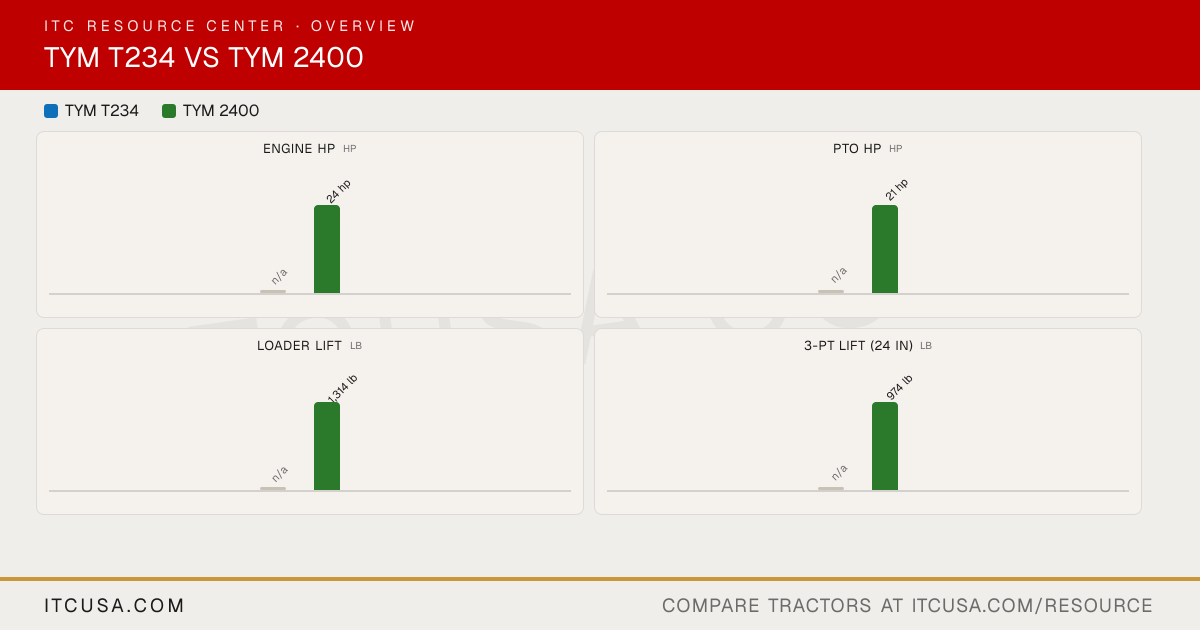

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT234
TYM2400
Engine Manufacturer
Mitsubishi
TYM
Engine Model
S3L2
T1100N2
Engine Type
3-cylinder, naturally aspirated diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
80.4 in³
71.7 in³
Rated Engine Speed
2500 rpm
2850 rpm
Engine Power (Gross)
24.4 hp
24 hp
PTO Power
18.3 hp
21 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dual dry
Dry element
Fuel System
Indirect fuel injection
IDI
Alternator
50 A, 12 V
60 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
4.4 gpm
4.7 gpm
Steering Flow
2.3 gpm
3.3 gpm
Total Hydraulic Flow
6.7 gpm
7.9 gpm
Overall Hydraulic Pump Flow
6.7 gpm
7.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
1
2
Fuel Tank Capacity
6.6 gal
6.0 gal
Coolant Capacity
5.9 qt
5.3 qt
Crankcase Capacity
4.5 qt
2.9 qt
Transmission / Hydraulic System Capacity
4.5 gal
3.7 gal
Front Axle Fluid Capacity
4.7 qt
3.5 qt
PTO Type
Independent
Live
PTO Rear
540 rpm
540/1000 rpm
Mid-PTO Availability
Available
Available
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
1,534 lb
1,499 lb
Hitch Lift Capacity (at 24”)
1,102 lb
974 lb
Lift Control Type
Position control
Position control
Transmission Type
HST
2400R: Constant Mesh; 2400H: HST
No. of Speeds
Infinite / 2 Range
2400R: F6 x R2; 2400H: 2-Range
Max Travel Speed (Forward)
9.6 mph
2400R: 9.9 mph; 2400H: 12.1 mph
Max Travel Speed (Reverse)
Not Published
2400R: 3.9 mph; 2400H: 12.1 mph
Clutch
Not Published
Dry single plate
Differential Lock & Limited Slip Options
Not Published
Differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet, Multi disc
Seat Suspension & Adjustability
Not Published
Comfortable suspension seat
Front Axle Type
Not Published
4WD
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
107.8 in
120.3 in
Overall Width
52.8 in
44.2 in
Wheelbase
58.3 in
59.1 in
Ground Clearance
7.71 in
12.1 in
Min. Turn Radius without Brakes
105.5 in
(L) 115.4 in; (R) 114.2 in
Height to Top of ROPS
89.8 in
87.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
1,907 lb
2400R: 1,792 lb; 2400H: 1,829 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
Not Published
6-12
R1 Agricultural - Rear
Not Published
9.5-16
R3 Turf - Front
Not Published
23x8.50-12
R3 Turf - Rear
Not Published
33x12.50-16.5
R4 Industrial - Front
23x8.5-12
23x8.50-12
R4 Industrial - Rear
12x16.5
12-16.5
Quick Attach Loader System
TX2000: Quick attach mechanism
BL100S: Quick attach mechanism
Loader Model
TX2000
BL100S
Loader Lift Height
TX2000: 86.9 in
BL100S: 88.3 in
Loader Lift Capacity (Full Height)
TX2000: 1,380 lb
BL100S: 1,314 lb
Loader Breakout Force
TX2000: 2,059 lb
BL100S: 1,960 lb
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
