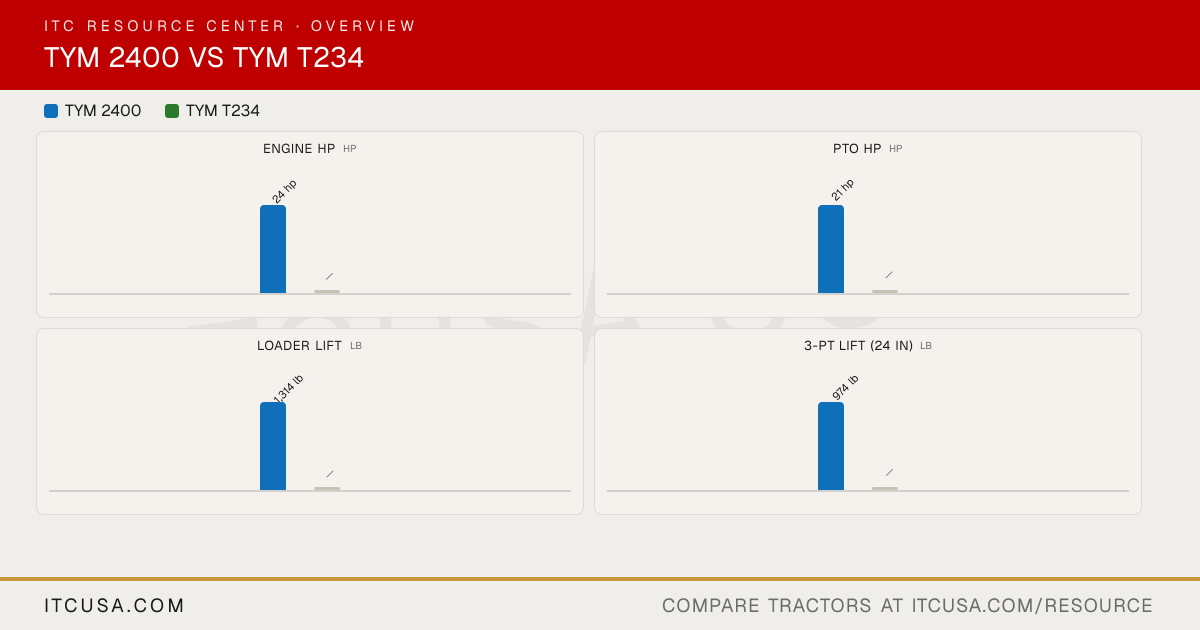

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM2400
TYMT234
Engine Manufacturer
TYM
Mitsubishi
Engine Model
T1100N2
S3L2
Engine Type
3-cylinder, naturally aspirated diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
71.7 in³
80.4 in³
Rated Engine Speed
2850 rpm
2500 rpm
Engine Power (Gross)
24 hp
24.4 hp
PTO Power
21 hp
18.3 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Liquid-cooled
Air Cleaner
Dry element
Dual dry
Fuel System
IDI
Indirect fuel injection
Alternator
60 A, 12 V
50 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
4.7 gpm
4.4 gpm
Steering Flow
3.3 gpm
2.3 gpm
Total Hydraulic Flow
7.9 gpm
6.7 gpm
Overall Hydraulic Pump Flow
7.9 gpm
6.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
Not Published
No. of Optional Remote Valves
2
1
Fuel Tank Capacity
6.0 gal
6.6 gal
Coolant Capacity
5.3 qt
5.9 qt
Crankcase Capacity
2.9 qt
4.5 qt
Transmission / Hydraulic System Capacity
3.7 gal
4.5 gal
Front Axle Fluid Capacity
3.5 qt
4.7 qt
PTO Type
Live
Independent
PTO Rear
540/1000 rpm
540 rpm
Mid-PTO Availability
Available
Available
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
1,499 lb
1,534 lb
Hitch Lift Capacity (at 24”)
974 lb
1,102 lb
Lift Control Type
Position control
Position control
Transmission Type
2400R: Constant Mesh; 2400H: HST
HST
No. of Speeds
2400R: F6 x R2; 2400H: 2-Range
Infinite / 2 Range
Max Travel Speed (Forward)
2400R: 9.9 mph; 2400H: 12.1 mph
9.6 mph
Max Travel Speed (Reverse)
2400R: 3.9 mph; 2400H: 12.1 mph
Not Published
Clutch
Dry single plate
Not Published
Differential Lock & Limited Slip Options
Differential lock
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet, Multi disc
Wet disc
Seat Suspension & Adjustability
Comfortable suspension seat
Not Published
Front Axle Type
4WD
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
120.3 in
107.8 in
Overall Width
44.2 in
52.8 in
Wheelbase
59.1 in
58.3 in
Ground Clearance
12.1 in
7.71 in
Min. Turn Radius without Brakes
(L) 115.4 in; (R) 114.2 in
105.5 in
Height to Top of ROPS
87.3 in
89.8 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
2400R: 1,792 lb; 2400H: 1,829 lb
1,907 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial
R1 Agricultural - Front
6-12
Not Published
R1 Agricultural - Rear
9.5-16
Not Published
R3 Turf - Front
23x8.50-12
Not Published
R3 Turf - Rear
33x12.50-16.5
Not Published
R4 Industrial - Front
23x8.50-12
23x8.5-12
R4 Industrial - Rear
12-16.5
12x16.5
Quick Attach Loader System
BL100S: Quick attach mechanism
TX2000: Quick attach mechanism
Loader Model
BL100S
TX2000
Loader Lift Height
BL100S: 88.3 in
TX2000: 86.9 in
Loader Lift Capacity (Full Height)
BL100S: 1,314 lb
TX2000: 1,380 lb
Loader Breakout Force
BL100S: 1,960 lb
TX2000: 2,059 lb
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
