Bad Boy Tractors 4025 vs TYM T234

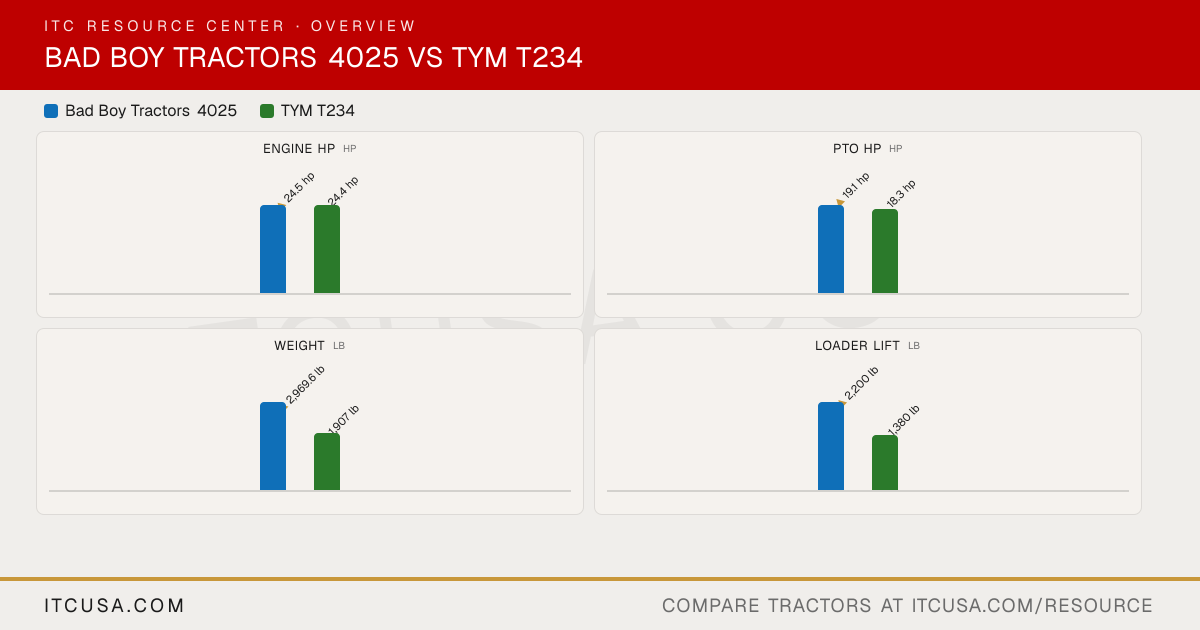

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 8 categories to 0. Machine pages: Bad Boy Tractors 4025 and TYM T234.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	TYMT234

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1700N6-BUTR_3	S3L2
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.7 in³	80.4 in³
Rated Engine Speed	2100 rpm	2500 rpm
Engine Power (Gross)	24.5 hp	24.4 hp
PTO Power	19.1 hp	18.3 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dual dry
Fuel System	Not Published	Indirect fuel injection
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Dual gear pump
Implement Flow	7.5 gpm	4.4 gpm
Steering Flow	4 gpm	2.3 gpm
Total Hydraulic Flow	11.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	6.6 gal
Coolant Capacity	1.32 gal	5.9 qt
Crankcase Capacity	1.14 gal	4.5 qt
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	4.5 gal
Front Axle Fluid Capacity	Not Published	4.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	1,534 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,102 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	HST
No. of Speeds	3 range (A/B/C)	Infinite / 2 Range
Max Travel Speed (Forward)	Not Published	9.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	107.8 in
Overall Width	56.7 in	52.8 in
Wheelbase	65.7 in	58.3 in
Ground Clearance	15 in	7.71 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	96.85 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	R4 Industrial
R1 Agricultural - Front	8.0-16	Not Published
R1 Agricultural - Rear	12.4-24	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	23x8.5-12
R4 Industrial - Rear	15-19.5	12x16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	TX2000: Quick attach mechanism
Loader Model	BBL400	TX2000
Loader Lift Height	104 in	TX2000: 86.9 in
Loader Lift Capacity (Full Height)	2,200 lb	TX2000: 1,380 lb
Loader Breakout Force	3,660 lbf	TX2000: 2,059 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a TYM dealer near you→

Bad Boy Tractors 4025 vs TYM T234: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the TYM T234?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 24.4 hp hp for the TYM T234.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the TYM T234?

The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 18.3 hp hp for the TYM T234.

Which is heavier, the Bad Boy Tractors 4025 or the TYM T234?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 1,907 lb lb for the TYM T234.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the TYM T234?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,380 lb lb for the TYM T234.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the TYM T234?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,102 lb lb for the TYM T234.
