Bad Boy Tractors 1022 vs TYM T234

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T234 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and TYM T234.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	TYM T234
Engine HP (hp)	21.5 hp	▲ 24.4 hp
PTO HP (hp)	15.4 hp	▲ 18.3 hp
Weight (lb)	1,433 lb	▲ 1,907 lb
Loader Lift (lb)	617 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,102 lb
Lift Height (in)	78.5 in	▲ 86.9 in
Breakout Force (lbf)	1,253 lbf	▲ 2,059 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 6.7 gpm
Travel Speed (mph)	7.8 mph	▲ 9.6 mph

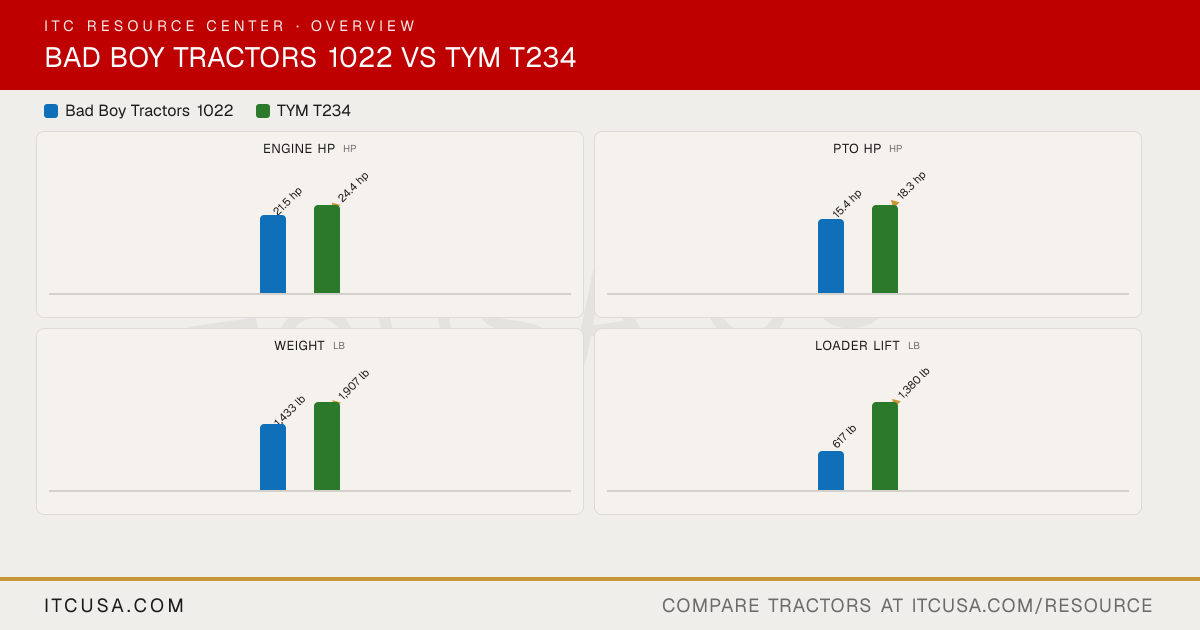

The headline numbers at a glance.

Bad Boy Tractors 1022TYM T234

Engine HPhp

21.5 hp

▲24.4 hp

PTO HPhp

15.4 hp

▲18.3 hp

Weightlb

1,433 lb

▲1,907 lb

Loader Liftlb

617 lb

▲1,380 lb

3-Pt Lift (24 in)lb

679 lb

▲1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYMT234


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNM74F	S3L2
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	60.6 in³	80.4 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	24.4 hp
PTO Power	15.4 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Dual dry
Fuel System	Indirect injection	Indirect fuel injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Single gear pump with flow divider	Dual gear pump
Implement Flow	4.17 gpm	4.4 gpm
Steering Flow	2.11 gpm	2.3 gpm
Total Hydraulic Flow	6.3 gpm	6.7 gpm
Overall Hydraulic Pump Flow	6.97 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.7 qt	5.9 qt
Crankcase Capacity	2.1 qt	4.5 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.5 gal
Front Axle Fluid Capacity	2.6 qt	4.7 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,534 lb
Hitch Lift Capacity (at 24”)	679 lb	1,102 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	HST
No. of Speeds	2 range	Infinite / 2 Range
Max Travel Speed (Forward)	7.8 mph	9.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	107.8 in
Overall Width	44.5 in	52.8 in
Wheelbase	53.1 in	58.3 in
Ground Clearance	8.3 in	7.71 in
Min. Turn Radius without Brakes	86.6 in	105.5 in
Height to Top of ROPS	86.6 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R4 Industrial
R1 Agricultural - Front	16x7.50-9	Not Published
R1 Agricultural - Rear	24x12.00-12	Not Published
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12.00-12	Not Published
R4 Industrial - Front	18x8.5-10	23x8.5-12
R4 Industrial - Rear	26x12.00-12	12x16.5

Quick Attach Loader System	Quick attach front loader	TX2000: Quick attach mechanism
Loader Model	BBL100	TX2000
Loader Lift Height	78.5 in	TX2000: 86.9 in
Loader Lift Capacity (Full Height)	617 lb	TX2000: 1,380 lb
Loader Breakout Force	1,253 lbf	TX2000: 2,059 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1022 vs TYM T234: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM T234?: The TYM T234 leads on engine hp at 24.4 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM T234?: The TYM T234 leads on pto hp at 18.3 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the TYM T234?: The TYM T234 leads on weight at 1,907 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM T234?: The TYM T234 leads on loader lift at 1,380 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM T234?: The TYM T234 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1022	TYM T234
Engine HP (hp)	21.5 hp	▲ 24.4 hp
PTO HP (hp)	15.4 hp	▲ 18.3 hp
Weight (lb)	1,433 lb	▲ 1,907 lb
Loader Lift (lb)	617 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,102 lb
Lift Height (in)	78.5 in	▲ 86.9 in
Breakout Force (lbf)	1,253 lbf	▲ 2,059 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 6.7 gpm
Travel Speed (mph)	7.8 mph	▲ 9.6 mph

The headline numbers at a glance.

Bad Boy Tractors 1022TYM T234

Engine HPhp

21.5 hp

▲24.4 hp

PTO HPhp

15.4 hp

▲18.3 hp

Weightlb

1,433 lb

▲1,907 lb

Loader Liftlb

617 lb

▲1,380 lb

3-Pt Lift (24 in)lb

679 lb

▲1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYMT234


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNM74F	S3L2
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	60.6 in³	80.4 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	24.4 hp
PTO Power	15.4 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Dual dry
Fuel System	Indirect injection	Indirect fuel injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Single gear pump with flow divider	Dual gear pump
Implement Flow	4.17 gpm	4.4 gpm
Steering Flow	2.11 gpm	2.3 gpm
Total Hydraulic Flow	6.3 gpm	6.7 gpm
Overall Hydraulic Pump Flow	6.97 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.7 qt	5.9 qt
Crankcase Capacity	2.1 qt	4.5 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.5 gal
Front Axle Fluid Capacity	2.6 qt	4.7 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,534 lb
Hitch Lift Capacity (at 24”)	679 lb	1,102 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	HST
No. of Speeds	2 range	Infinite / 2 Range
Max Travel Speed (Forward)	7.8 mph	9.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	107.8 in
Overall Width	44.5 in	52.8 in
Wheelbase	53.1 in	58.3 in
Ground Clearance	8.3 in	7.71 in
Min. Turn Radius without Brakes	86.6 in	105.5 in
Height to Top of ROPS	86.6 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R4 Industrial
R1 Agricultural - Front	16x7.50-9	Not Published
R1 Agricultural - Rear	24x12.00-12	Not Published
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12.00-12	Not Published
R4 Industrial - Front	18x8.5-10	23x8.5-12
R4 Industrial - Rear	26x12.00-12	12x16.5

Quick Attach Loader System	Quick attach front loader	TX2000: Quick attach mechanism
Loader Model	BBL100	TX2000
Loader Lift Height	78.5 in	TX2000: 86.9 in
Loader Lift Capacity (Full Height)	617 lb	TX2000: 1,380 lb
Loader Breakout Force	1,253 lbf	TX2000: 2,059 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1022 vs TYM T234: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM T234?

The TYM T234 leads on engine hp at 24.4 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM T234?

The TYM T234 leads on pto hp at 18.3 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the TYM T234?

The TYM T234 leads on weight at 1,907 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM T234?

The TYM T234 leads on loader lift at 1,380 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM T234?

The TYM T234 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
