Bad Boy Tractors 3026 vs TYM T234

Across 9 measurable specs, the TYM T234 leads 5 categories to 4. Machine pages: Bad Boy Tractors 3026 and TYM T234.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	TYMT234

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1100N2	S3L2
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	70.7 in³	80.4 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	24 hp	24.4 hp
PTO Power	18 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dual dry
Fuel System	Indirect injection (swirl chamber)	Indirect fuel injection
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Dual gear pump
Implement Flow	4.3 gpm	4.4 gpm
Steering Flow	3.1 gpm	2.3 gpm
Total Hydraulic Flow	7.4 gpm	6.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.6 gal
Coolant Capacity	1.21 gal	5.9 qt
Crankcase Capacity	0.79 gal	4.5 qt
Transmission / Hydraulic System Capacity	2.90 gal	4.5 gal
Front Axle Fluid Capacity	0.79 gal	4.7 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,534 lb
Hitch Lift Capacity (at 24”)	974 lb	1,102 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	HST
No. of Speeds	3 range (L/M/H)	Infinite / 2 Range
Max Travel Speed (Forward)	14.8 mph	9.6 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	107.8 in
Overall Width	53.9 in	52.8 in
Wheelbase	65.7 in	58.3 in
Ground Clearance	16.4 in	7.71 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	91.4 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R4 Industrial
R1 Agricultural - Front	7-16 6PR	Not Published
R1 Agricultural - Rear	11.2-20	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	23x8.5-12
R4 Industrial - Rear	14-17.5	12x16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	TX2000: Quick attach mechanism
Loader Model	BBL300	TX2000
Loader Lift Height	87.5 in	TX2000: 86.9 in
Loader Lift Capacity (Full Height)	1,314 lb	TX2000: 1,380 lb
Loader Breakout Force	1,960 lbf	TX2000: 2,059 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a TYM dealer near you→

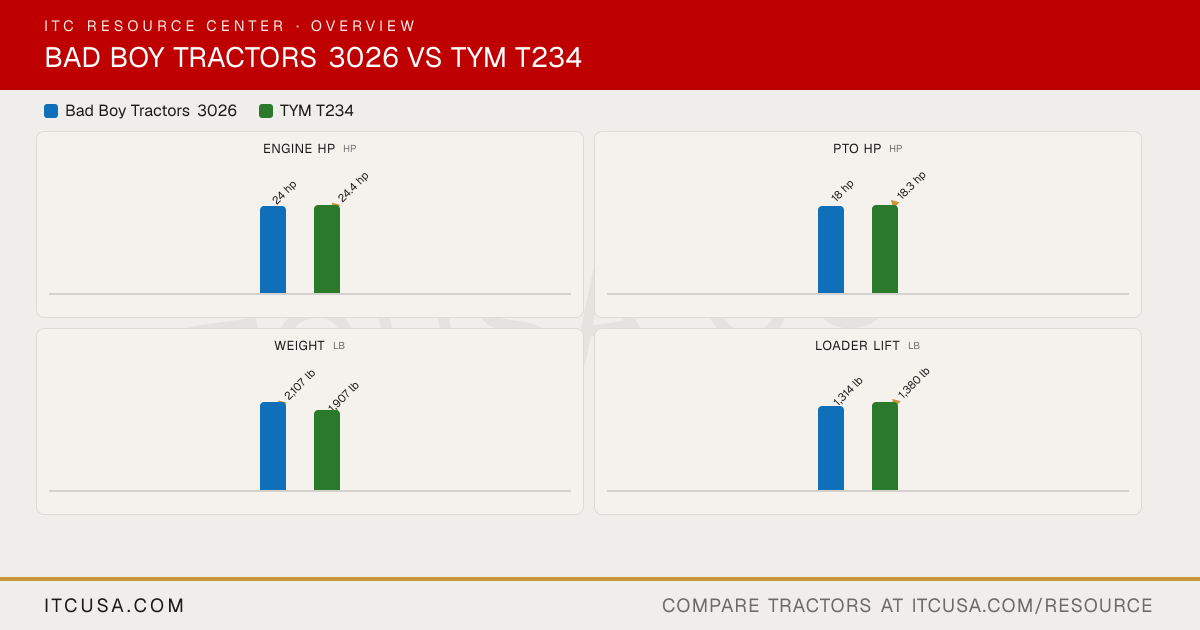

Bad Boy Tractors 3026 vs TYM T234: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the TYM T234?

The TYM T234 leads on engine hp at 24.4 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the TYM T234?

The TYM T234 leads on pto hp at 18.3 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the TYM T234?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,907 lb lb for the TYM T234.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the TYM T234?

The TYM T234 leads on loader lift at 1,380 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the TYM T234?

The TYM T234 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
