Bad Boy Tractors 1025 vs TYM 2400

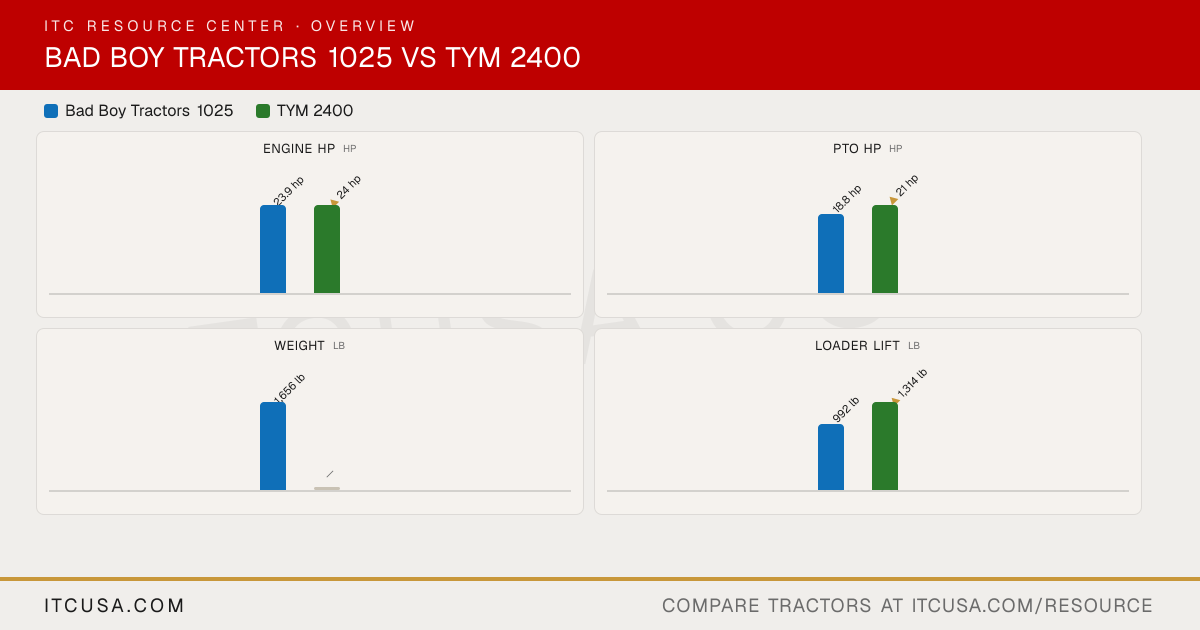

Across 9 measurable specs, the TYM 2400 leads 7 categories to 2. Machine pages: Bad Boy Tractors 1025 and TYM 2400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	TYM2400

▶Engine
Engine Manufacturer	Yanmar	TYM
Engine Model	3TNV80F	T1100N2
Engine Type	3 Cylinder, Water-Cooled, Diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	71.7 in³
Rated Engine Speed	3000 rpm	2850 rpm
Engine Power (Gross)	24.6 hp	24 hp
PTO Power	18.8 hp	21 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled, forced circulation	Not Published
Air Cleaner	Single element, dry	Dry element
Fuel System	Indirect injection	IDI
Alternator	40 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Gear pump	Dual gear pump
Implement Flow	4.2 gpm	4.7 gpm
Steering Flow	2.8 gpm	3.3 gpm
Total Hydraulic Flow	7.0 gpm	7.9 gpm
Overall Hydraulic Pump Flow	6.95 gpm	7.9 gpm
Hydraulic System Type	Open center	Dual gear pump
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None
No. of Optional Remote Valves	Not Published	2
▶Fluid Capacity
Fuel Tank Capacity	5.8 gal	6.0 gal
Coolant Capacity	0.95 gal	5.3 qt
Crankcase Capacity	0.71 gal	2.9 qt
Transmission / Hydraulic System Capacity	3.83 gal	3.7 gal
Front Axle Fluid Capacity	0.85 gal	3.5 qt
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 rpm	540/1000 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Available
Category, 3-Point Hitch	Category I (N)	Category I
Hitch Lift Capacity	1,323 lb	1,499 lb
Hitch Lift Capacity (at 24”)	1,101 lb	974 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	2400R: Constant Mesh; 2400H: HST
No. of Speeds	2 range (H/L)	2400R: F6 x R2; 2400H: 2-Range
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	2400R: 9.9 mph; 2400H: 12.1 mph
Max Travel Speed (Reverse)	Not Published	2400R: 3.9 mph; 2400H: 12.1 mph
Clutch	None (HST)	Dry single plate
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Differential lock
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc, foot operated	Wet, Multi disc
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	45.8 in	44.2 in
Wheelbase	57.5 in	59.1 in
Ground Clearance	9.4 in	12.1 in
Min. Turn Radius without Brakes	Not Published	(L) 9.6 ft; (R) 9.5 ft
Height to Top of ROPS	91.3 in	87.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	104 in	120.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,638 lb	2400R: 1,792 lb; 2400H: 1,829 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	6-12	6-12
R1 Agricultural - Rear	9.5-16	9.5-16
R3 Turf - Front	20x8-10	23x8.50-12
R3 Turf - Rear	29x12.5-15	33x12.50-16.5
R4 Industrial - Front	23x8.5-12	23x8.50-12
R4 Industrial - Rear	12-16.5	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	BL100S: Quick attach mechanism
Loader Model	BBL105	BL100S
Loader Lift Height	75.5 in	BL100S: 88.3 in
Loader Lift Capacity (Full Height)	992 lb (at pivot pin)	BL100S: 1,314 lb (at pivot pin)
Loader Breakout Force	1,531 lbf	BL100S: 1,960 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99

Find a Bad Boy dealer near you→Find a TYM dealer near you→

Bad Boy Tractors 1025 vs TYM 2400: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the TYM 2400?

The Bad Boy Tractors 1025 leads on engine hp at 24.6 hp hp, compared to 24 hp hp for the TYM 2400.

Which has more PTO horsepower, the Bad Boy Tractors 1025 or the TYM 2400?

The TYM 2400 leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the Bad Boy Tractors 1025.

Which is heavier, the Bad Boy Tractors 1025 or the TYM 2400?

The TYM 2400 leads on weight at 1,829 lb lb, compared to 1,638 lb lb for the Bad Boy Tractors 1025.

Which has more loader lift capacity, the Bad Boy Tractors 1025 or the TYM 2400?

The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1025.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the TYM 2400?

The Bad Boy Tractors 1025 leads on 3-pt lift (24 in) at 1,101 lb lb, compared to 974 lb lb for the TYM 2400.
