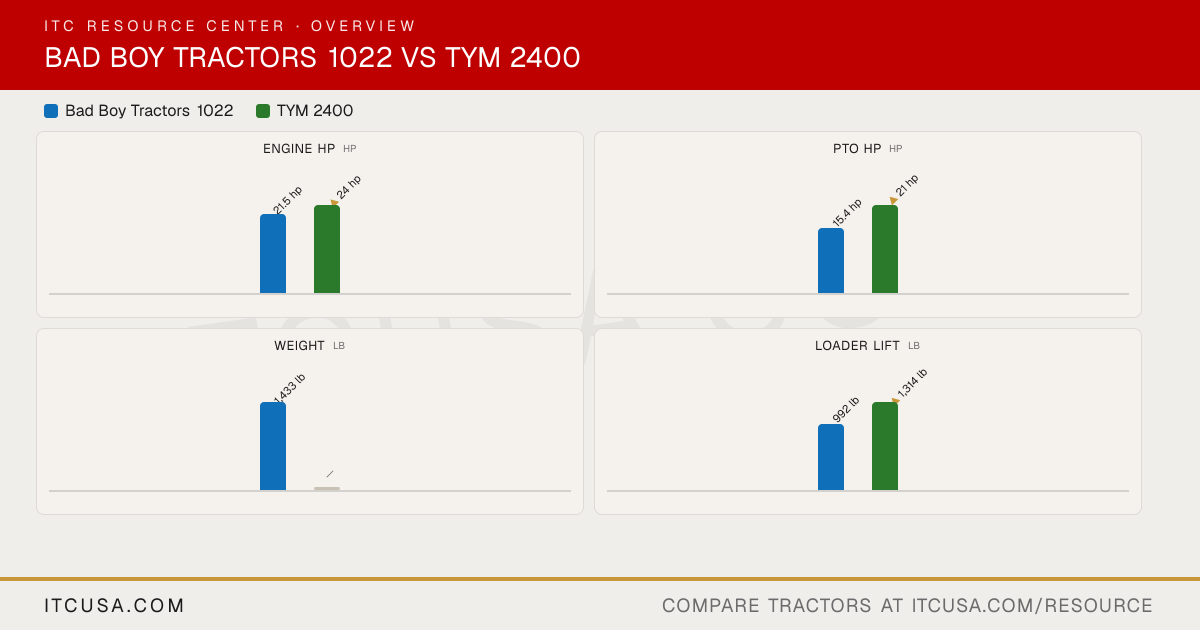

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors1022
TYM2400
PTO Power
15.4 hp
21 hp
Alternator
40 A, 12 V
60 A, 12 V
Air Cleaner
Single Dry
Dry element
Engine Type
Natural Aspiration
3-cylinder, naturally aspirated diesel
Fuel System
Diesel
IDI
Displacement
60.6 (993)
71.7 in³
No. of Cylinders
3
3
Rated Engine Speed
3,200
2850 rpm
Cooling System Type
Water cooled
Not Published
Engine Manufacturer
Yanmar
TYM
Engine Power (Gross)
21.5 hp
24 hp
Engine Emissions Constraints
Tier 4
Tier 4
Tractor Weight (Base)
1,433 (650)
—
Weight with ROPS and Loader
1,433 lb
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
7-year powertrain warranty
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Single Gear Pump with Flow Divider
Dual gear pump
Steering Flow
2.11 gpm
3.3 gpm
Implement Flow
4.17 (15.8)
4.7 gpm
Total Hydraulic Flow
6.97 (26.4)
7.9 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.97 gpm (max total flow)
7.9 gpm
No. of Optional Remote Valves
Up to 1
2
No. of Standard Remote Valves
Not Published
0
PTO Rear
540 rpm
540/1000 rpm
PTO Type
Independent
Live
Lift Control Type
Position
Position control
Hitch Lift Capacity
1,100 lb
1,499 lb
Mid-PTO Availability
Optional (2,500 rpm)
Not Published
Category, 3-Point Hitch
Category I (N)
Category I
Hitch Lift Capacity (at 24”)
679 lb
974 lb
R3 Turf - Rear
TURF R 16X12.00-12
33x12.50-16.5
R3 Turf - Front
TURF F 16X7.50-8
23x8.50-12
Tire Size & Options
R1 (BAR) / R3 (TURF) / R4 (IND)
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12-12
12-16.5
R4 Industrial - Front
18X8.50-10
23x8.50-12
R1 Agricultural - Rear
BAR R 24X12.00-12
9.5-16
R1 Agricultural - Front
BAR F 16X7.50-9
6.0-12
Coolant Capacity
0.9 gal
5.3 qt
Crankcase Capacity
0.48 gal
2.9 qt
Fuel Tank Capacity
6.6 gal
6.0 gal
Front Axle Fluid Capacity
2.6 qt
3.5 qt
Transmission / Hydraulic System Capacity
3.6 gal
3.7 gal
Loader Lift Height
72.7 in (under level bucket); 78.5 in (pivot pin)
88.3 in
Loader Breakout Force
1,531 lb (at pivot pin, ground level)
1,960 lb
Quick Attach Loader System
SSQA
BL100S: Skid-type quick attachment
Loader Lift Capacity (Full Height)
992 lb (at pivot pin)
1,314 lb
Clutch
Dry single plate
Dry single plate
No. of Speeds
2 Range
Gear: F6 x R2; HST: 2-Range
Transmission Type
Hydrostatic transmission (HST)
Gear: Constant Mesh; HST: HST
Max Travel Speed (Forward)
7.8 mph
Gear: 9.9 mph; HST: 12.1 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Mechanical rear differential lock
Not Published
Brakes
Wet disc
Wet, multi disc
Steering
Hydrostatic
Hydrostatic
Frame Type
Sub-compact tractor, 4WD
Not Published
Front Axle Type
Center pin front axle
4WD
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Standard adjustable seat
Comfortable suspension seat
Wheelbase
53.1 (1,350)
59.1 in
Overall Width
44.5 (1,130)
44.2 in
Overall Length
94.2 (2,394)
—
Ground Clearance
8.3 in.
12.1 in
Height to Top of ROPS
86.6 (2,200)
87.3 in
Height to Top of Cab Model
Not Published
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
86.6 (2,200)
115.4 in
Overall Length with 3-Point Hitch
94.2 in
120.3 in
Bad Boy Tractors 1022 vs TYM 2400: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the TYM 2400?
The TYM 2400 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM 2400?
The TYM 2400 leads on pto hp at 21 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM 2400?
The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM 2400?
The TYM 2400 leads on 3-pt lift (24 in) at 974 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
