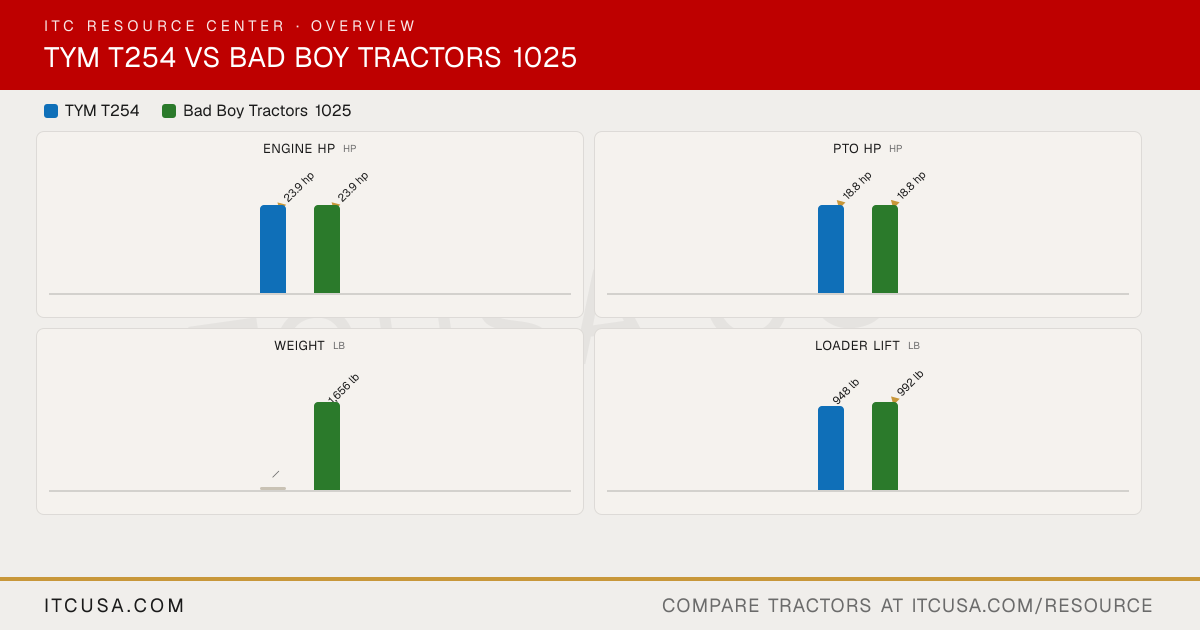

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT254
Bad Boy Tractors1025
PTO Power
18.8 hp
18.8 hp
Alternator
40 A, 12 V
40 A, 12 V
Air Cleaner
Single dry
Dry Element
Engine Type
3-cylinder, naturally aspirated diesel
Water cooled 4 cycle, 3 cylinder diesel
Fuel System
IDI
Indirect Injection
Displacement
77.3 in³
77.3 in³
No. of Cylinders
3
3
Rated Engine Speed
3000 rpm
3000 rpm
Cooling System Type
Water-cooled
Water cooled, Forced circulation
Engine Manufacturer
Yanmar
YANMAR
Engine Power (Gross)
23.9 hp
23.9 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
Not Published
1,610 lb
Weight with Cab and Loader
Not Published
Not Applicable
Tractor Weight (Base)
—
1,656 lb
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Engine & Powertrain: 84 months (7 years) or 2,000 hours
Pump Type
Single gear pump
Gear pump
Steering Flow
2.8 gpm
2.8 gpm
Implement Flow
4.2 gpm
4.2 gpm
Total Hydraulic Flow
6.9 gpm
7.0 gpm
Hydraulic System Type
Open center
Power Assisted Hydro-Static
Rear Remote Hydraulic Flow
Not Published
Not Applicable
Overall Hydraulic Pump Flow
6.9 gpm
6.95 gpm
No. of Optional Remote Valves
1
Not Published
No. of Standard Remote Valves
0
Not Applicable
System Operating Pressure
—
341.7 lbf/cm2
PTO Rear
540 rpm
540 rpm @ 2,893 engine rpm
PTO Type
Independent
Independent
Lift Control Type
Position control
Position control
Hitch Lift Capacity
1,214 lb
1,323 lb
Mid-PTO Availability
Available
Yes (2,000 rpm @ 2,875 engine rpm)
Category, 3-Point Hitch
Category I (Narrow)
Category I (N)
Hitch Lift Capacity (at 24”)
1,101 lb
1,101 lb @ 24 in behind lift point
R3 Turf - Rear
29x12.50-15
29X12.5-15
R3 Turf - Front
20x8.00-10
20X8-10
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
R1 (Ag) / R3 (Turf) / R4 (Industrial)
R4 Industrial - Rear
27x12.5-15; 12-16.5
27X12-16.5
R4 Industrial - Front
20x8.00-10; 23x8.50-12
23X8.5-12
R1 Agricultural - Rear
9.5-16
9.5-16
R1 Agricultural - Front
6.0-12
6-12
Coolant Capacity
3.8 qt
3.8 ℓ (1 US gal)
Crankcase Capacity
2.9 qt
2.7 ℓ (0.71 US gal)
Fuel Tank Capacity
5.8 gal
22 ℓ (5.81 US gal)
Front Axle Fluid Capacity
3.7 qt
0.85 gal
Transmission / Hydraulic System Capacity
3.7 gal
3.83 gal
Loader Lift Height
75 in
75.5 in (pivot pin)
Loader Breakout Force
1,680 lb
1,531 lb (pivot pin, ground level)
Quick Attach Loader System
TX25P: Quick attach mechanism
SSQA
Loader Lift Capacity (Full Height)
948 lb
992 lb (pivot pin)
Clutch
Not applicable
No
No. of Speeds
Infinite 2-Range
2 range (Low/High)
Transmission Type
HST
Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD)
