Bad Boy Tractors 1025 vs TYM T254

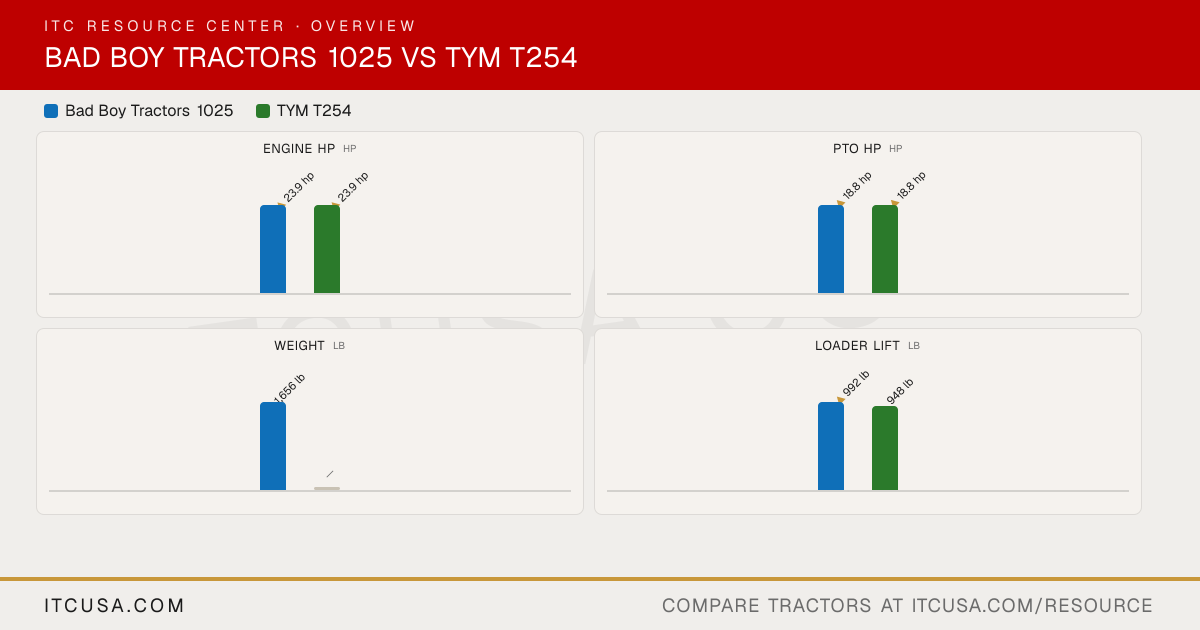

Across 8 measurable specs, the Bad Boy Tractors 1025 leads 3 categories to 2 (3 tied). Machine pages: Bad Boy Tractors 1025 and TYM T254.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	TYMT254

▶Engine
PTO Power	18.8 hp	18.8 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Dry Element	Single dry
Engine Type	Water cooled 4 cycle, 3 cylinder diesel	3-cylinder, naturally aspirated diesel
Fuel System	Indirect Injection	IDI
Displacement	77.3 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Water cooled, Forced circulation	Water-cooled
Engine Manufacturer	YANMAR	Yanmar
Engine Power (Gross)	23.9 hp	23.9 hp
Engine Emissions Constraints	Not Published	Tier 4
▶Weight
Tractor Weight (Base)	1,656 lb	—
Weight with ROPS and Loader	1,610 lb	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	Engine & Powertrain: 84 months (7 years) or 2,000 hours	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Gear pump	Single gear pump
Steering Flow	2.8 gpm	2.8 gpm
Implement Flow	4.2 gpm	4.2 gpm
Total Hydraulic Flow	7.0 gpm	6.9 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	341.7 lbf/cm2	—
Rear Remote Hydraulic Flow	Not Applicable	Not Published
Overall Hydraulic Pump Flow	6.95 gpm	6.9 gpm
No. of Optional Remote Valves	Not Published	1
No. of Standard Remote Valves	Not Applicable	0
▶PTO & Hitch
PTO Rear	540 rpm @ 2,893 engine rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,323 lb	1,214 lb
Mid-PTO Availability	Yes (2,000 rpm @ 2,875 engine rpm)	Available
Category, 3-Point Hitch	Category I (N)	Category I (Narrow)
Hitch Lift Capacity (at 24”)	1,101 lb @ 24 in behind lift point	1,101 lb
▶Tire Options
R3 Turf - Rear	29X12.5-15	29x12.50-15
R3 Turf - Front	20X8-10	20x8.00-10
Tire Size & Options	R1 (Ag) / R3 (Turf) / R4 (Industrial)	R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
R4 Industrial - Rear	27X12-16.5	27x12.5-15; 12-16.5
R4 Industrial - Front	23X8.5-12	20x8.00-10; 23x8.50-12
R1 Agricultural - Rear	9.5-16	9.5-16
R1 Agricultural - Front	6-12	6.0-12
▶Fluid Capacity
Coolant Capacity	3.8 ℓ (1 US gal)	3.8 qt
Crankcase Capacity	2.7 ℓ (0.71 US gal)	2.9 qt
Fuel Tank Capacity	22 ℓ (5.81 US gal)	5.8 gal
Front Axle Fluid Capacity	0.85 gal	3.7 qt
Transmission / Hydraulic System Capacity	3.83 gal	3.7 gal
▶Loader & Attachments
Loader Lift Height	75.5 in (pivot pin)	75 in
Loader Breakout Force	1,531 lb (pivot pin, ground level)	1,680 lb
Quick Attach Loader System	SSQA	TX25P: Quick attach mechanism
Loader Lift Capacity (Full Height)	992 lb (pivot pin)	948 lb
▶Transmission & Drivetrain
Clutch	No	Not applicable
No. of Speeds	2 range (Low/High)	Infinite 2-Range
Transmission Type	Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD)	HST
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	11.0 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock
▶Chassis, Steering & Controls
Brakes	Wet disc, foot-operated	Wet disc
Steering	Power steering (hydrostatic)	Hydrostatic
Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Ergonomic seating
▶Dimensions & Maneuverability
Wheelbase	66.1 in	57.5 in
Overall Width	50.8 in	45.8 in
Overall Length	92.5 in	—
Ground Clearance	8.2 in	9.4 in
Height to Top of ROPS	89.7 in	91.3 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	100 in
Overall Length with 3-Point Hitch	104.0 in	100.5 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection RK24/T254 /BRANSON 2505/EMAX 25 Skid Plate $89.99

Bad Boy Tractors 1025 vs TYM T254: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the TYM T254?

They are effectively tied: both machines are rated at 23.9 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 1025 or the TYM T254?

They are effectively tied: both machines are rated at 18.8 hp hp for pto hp.

Which has more loader lift capacity, the Bad Boy Tractors 1025 or the TYM T254?

The Bad Boy Tractors 1025 leads on loader lift at 992 lb lb, compared to 948 lb lb for the TYM T254.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the TYM T254?

They are effectively tied: both machines are rated at 1,101 lb lb for 3-pt lift (24 in).
