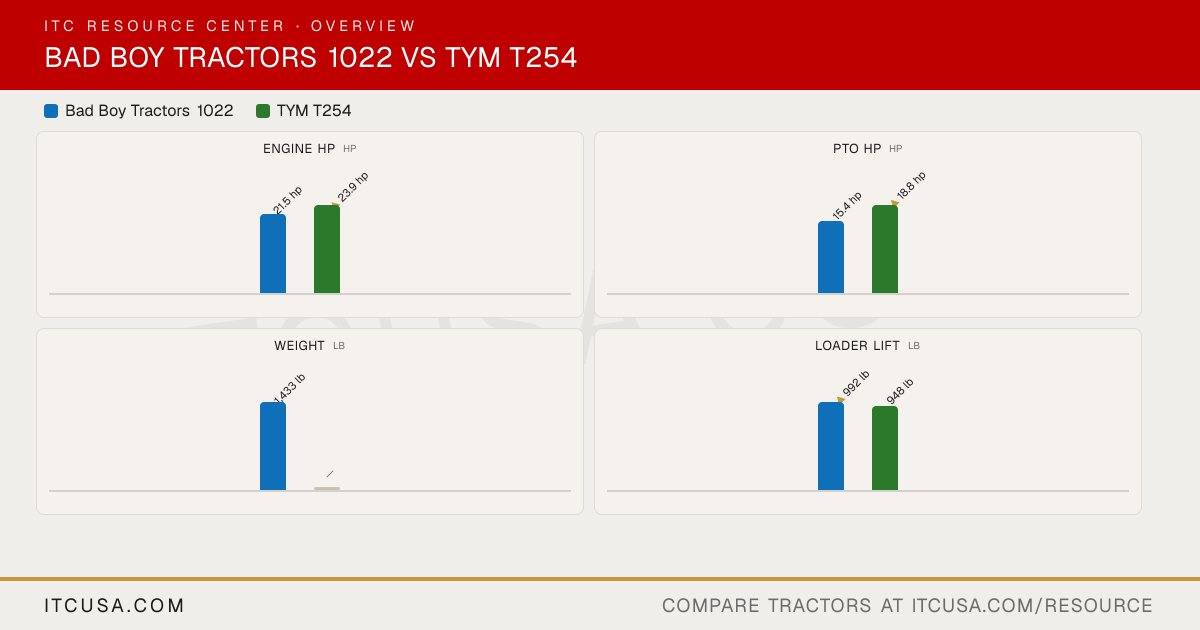

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors1022
TYMT254
PTO Power
15.4 hp
18.8 hp
Alternator
40 A, 12 V
40 A, 12 V
Air Cleaner
Single Dry
Single dry
Engine Type
Natural Aspiration
3-cylinder, naturally aspirated diesel
Fuel System
Diesel
IDI
Displacement
60.6 (993)
77.3 in³
No. of Cylinders
3
3
Rated Engine Speed
3,200
3000 rpm
Cooling System Type
Water cooled
Water-cooled
Engine Manufacturer
Yanmar
Yanmar
Engine Power (Gross)
21.5 hp
23.9 hp
Engine Emissions Constraints
Tier 4
Tier 4
Tractor Weight (Base)
1,433 (650)
—
Weight with ROPS and Loader
1,433 lb
Not Published
Weight with Cab and Loader
Not Published
Not Published
Warranty Length & Coverage
7-year powertrain warranty
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Single Gear Pump with Flow Divider
Single gear pump
Steering Flow
2.11 gpm
2.8 gpm
Implement Flow
4.17 (15.8)
4.2 gpm
Total Hydraulic Flow
6.97 (26.4)
6.9 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.97 gpm (max total flow)
6.9 gpm
No. of Optional Remote Valves
Up to 1
1
No. of Standard Remote Valves
Not Published
0
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position
Position control
Hitch Lift Capacity
1,100 lb
1,214 lb
Mid-PTO Availability
Optional (2,500 rpm)
Available
Category, 3-Point Hitch
Category I (N)
Category I (Narrow)
Hitch Lift Capacity (at 24”)
679 lb
1,101 lb
R3 Turf - Rear
TURF R 16X12.00-12
29x12.50-15
R3 Turf - Front
TURF F 16X7.50-8
20x8.00-10
Tire Size & Options
R1 (BAR) / R3 (TURF) / R4 (IND)
R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
