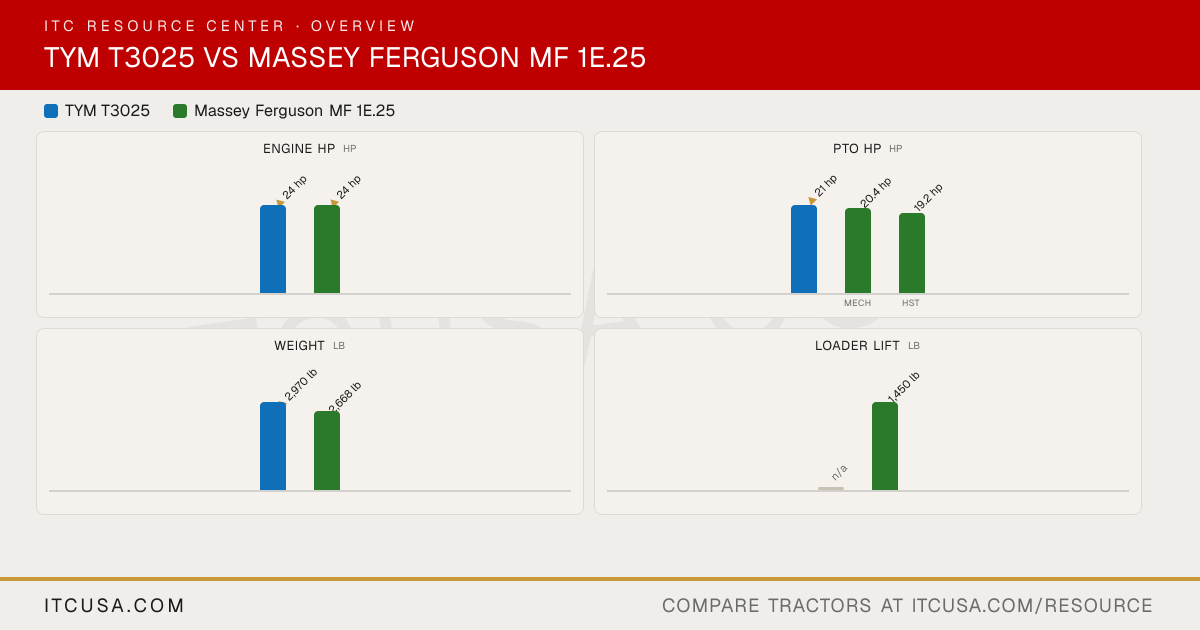

▶ EngineEngine Manufacturer TYM Iseki Engine Model T1700N6 Not Published Engine Type 3-cylinder, naturally aspirated diesel 3-cylinder diesel No. of Cylinders 3 3 Displacement 104.5 in³ 90.9 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 24 hp 24 hp PTO Power 21 hp Mech: 20.4 hp; HST: 19.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid cooled Air Cleaner Dry element Not Published Fuel System IDI (indirect injection) Not Published Alternator 50 A, 12 V Not Published ▶ HydraulicsPump Type Dual gear pump Two gear-type pumps Implement Flow 7.5 gpm 7.3 gpm Steering Flow 4.0 gpm 3.6 gpm Total Hydraulic Flow 11.5 gpm 10.9 gpm (7.3 + 3.6, computed) Overall Hydraulic Pump Flow 11.5 gpm 10.9 gpm (7.3 + 3.6, computed) Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Loader: 4 / Rear: 0 Not Published No. of Optional Remote Valves Up to 4 Not Published ▶ Fluid CapacityFuel Tank Capacity 8.7 gal 10 gal Coolant Capacity 5.3 qt Not Published Crankcase Capacity 4.5 qt Not Published Transmission / Hydraulic System Capacity T3025R: 8.9 gal; T3025H: 9.8 gal Not Published Front Axle Fluid Capacity 6.8 qt Not Published ▶ PTO & HitchPTO Type Independent Mech: Independent; HST: Transmission PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,307 lb 2,205 lb Hitch Lift Capacity (at 24”) 2,425 lb 1,598 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type T3025R: Synchromesh; T3025H: HST Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic No. of Speeds T3025R: F12 x R12; T3025H: 3-Range Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic Max Travel Speed (Forward) T3025R: 11.7 mph; T3025H: 16.7 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch T3025R: Dry single plate; T3025H: N/A Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power steering Brakes Wet, multi-disc Not Published Seat Suspension & Adjustability Suspension seat Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 56.3 in 52.4 in Wheelbase 65.7 in Not Published Ground Clearance 14.4 in 11 in Min. Turn Radius without Brakes 105.5 in Not Published Height to Top of ROPS 97.2 in 97.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 121 in (with 3-point hitch) 116.5 in ▶ WeightTractor Weight (Base) 2,970 lb (with ROPS) 2,668 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24 Not Published R1 Agricultural - Front 8-16 Not Published R1 Agricultural - Rear 12.4-24 Not Published R3 Turf - Front 27x8.5-15 Not Published R3 Turf - Rear 41x14.00 Not Published R4 Industrial - Front 10-16.5 Not Published R4 Industrial - Rear 420/70-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid steer quick attach Loader Model Not Published FL2407X Loader Lift Height Not Published FL2407X: 94.3 in (at pivot pin) Loader Lift Capacity (Full Height) Not Published FL2407X: 1,450 lb (to maximum height, at pivot pin) Loader Breakout Force Not Published FL2407X: 2,288 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months Not Published
