Massey Ferguson MF 1E.25 vs TYM T3025

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 5 measurable specs, the TYM T3025 leads 4 categories to 0 (1 tied). Machine pages: Massey Ferguson MF 1E.25 and TYM T3025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1E.25	TYM T3025
Engine HP (hp)	24 hp	24 hp
PTO HP (hp)	20.4 hp	▲ 21 hp
Weight (lb)	2,668 lb	▲ 2,970 lb
Loader Lift (lb)	1,450 lb	n/a
3-Pt Lift (24 in) (lb)	1,598 lb	▲ 2,425 lb
Lift Height (in)	94.3 in	n/a
Breakout Force (lbf)	2,288 lbf	n/a
Hydraulic Flow (gpm)	10.9 gpm	▲ 11.5 gpm
Travel Speed (mph)	n/a	16.7 mph

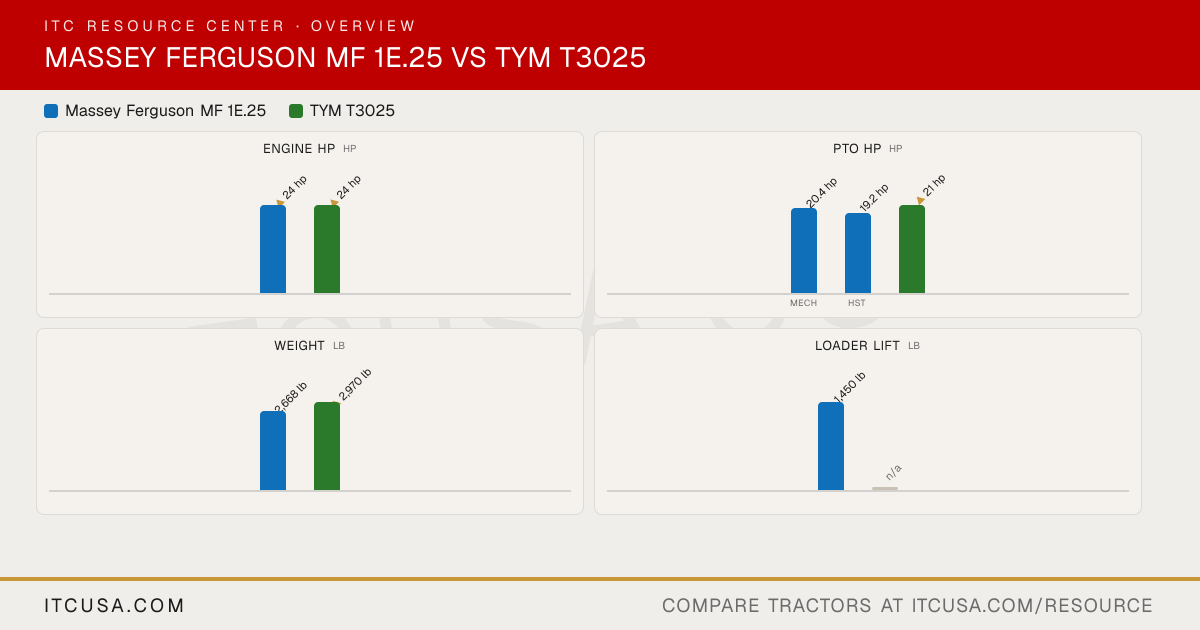

The headline numbers at a glance.

Massey Ferguson MF 1E.25TYM T3025

Engine HPhp

▲24 hp

PTO HPhp

20.4 hp

19.2 hp

▲21 hp

MechHST

Weightlb

2,668 lb

▲2,970 lb

Loader Liftlb

1,450 lb

n/a

3-Pt Lift (24 in)lb

1,598 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1E.25	TYMT3025


Engine Manufacturer	Iseki	TYM
Engine Model	Not Published	T1700N6
Engine Type	3-cylinder diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	90.9 in³	104.5 in³
Rated Engine Speed	2600 rpm	2100 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Mech: 20.4 hp; HST: 19.2 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Not Published
Air Cleaner	Not Published	Dry element
Fuel System	Not Published	IDI (indirect injection)
Alternator	Not Published	50 A, 12 V

Pump Type	Two gear-type pumps	Dual gear pump
Implement Flow	7.3 gpm	7.5 gpm
Steering Flow	3.6 gpm	4.0 gpm
Total Hydraulic Flow	10.9 gpm (7.3 + 3.6, computed)	11.5 gpm
Overall Hydraulic Pump Flow	10.9 gpm (7.3 + 3.6, computed)	11.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Loader: 4 / Rear: 0
No. of Optional Remote Valves	Not Published	Up to 4

Fuel Tank Capacity	10 gal	8.7 gal
Coolant Capacity	Not Published	5.3 qt
Crankcase Capacity	Not Published	4.5 qt
Transmission / Hydraulic System Capacity	Not Published	T3025R: 8.9 gal; T3025H: 9.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt

PTO Type	Mech: Independent; HST: Transmission	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	3,307 lb
Hitch Lift Capacity (at 24”)	1,598 lb	2,425 lb
Lift Control Type	Not Published	Position control

Transmission Type	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic	T3025R: Synchromesh; T3025H: HST
No. of Speeds	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic	T3025R: F12 x R12; T3025H: 3-Range
Max Travel Speed (Forward)	Not Published	T3025R: 11.7 mph; T3025H: 16.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	T3025R: Dry single plate; T3025H: N/A
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	52.4 in	56.3 in
Wheelbase	Not Published	65.7 in
Ground Clearance	11 in	14.4 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	97.6 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	116.5 in	121 in (with 3-point hitch)

Tractor Weight (Base)	2,668 lb	2,970 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	12.4-24
R3 Turf - Front	Not Published	27x8.5-15
R3 Turf - Rear	Not Published	41x14.00
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	420/70-24

Quick Attach Loader System	Skid steer quick attach	Not Published
Loader Model	FL2407X	Not Published
Loader Lift Height	FL2407X: 94.3 in (at pivot pin)	Not Published
Loader Lift Capacity (Full Height)	FL2407X: 1,450 lb (to maximum height, at pivot pin)	Not Published
Loader Breakout Force	FL2407X: 2,288 lb (at pivot pin)	Not Published

Warranty Length & Coverage	Not Published	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months

Find a dealer near you Find a TYM dealer near you

Massey Ferguson MF 1E.25 vs TYM T3025: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1E.25 or the TYM T3025?: They are effectively tied: both machines are rated at 24 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson MF 1E.25 or the TYM T3025?: The TYM T3025 leads on pto hp at 21 hp hp, compared to 20.4 hp hp for the Massey Ferguson MF 1E.25.
Which is heavier, the Massey Ferguson MF 1E.25 or the TYM T3025?: The TYM T3025 leads on weight at 2,970 lb lb, compared to 2,668 lb lb for the Massey Ferguson MF 1E.25.
Which has more three-point hitch lift capacity, the Massey Ferguson MF 1E.25 or the TYM T3025?: The TYM T3025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.25.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson MF 1E.25	TYM T3025
Engine HP (hp)	24 hp	24 hp
PTO HP (hp)	20.4 hp	▲ 21 hp
Weight (lb)	2,668 lb	▲ 2,970 lb
Loader Lift (lb)	1,450 lb	n/a
3-Pt Lift (24 in) (lb)	1,598 lb	▲ 2,425 lb
Lift Height (in)	94.3 in	n/a
Breakout Force (lbf)	2,288 lbf	n/a
Hydraulic Flow (gpm)	10.9 gpm	▲ 11.5 gpm
Travel Speed (mph)	n/a	16.7 mph

The headline numbers at a glance.

Massey Ferguson MF 1E.25TYM T3025

Engine HPhp

▲24 hp

PTO HPhp

20.4 hp

19.2 hp

▲21 hp

MechHST

Weightlb

2,668 lb

▲2,970 lb

Loader Liftlb

1,450 lb

n/a

3-Pt Lift (24 in)lb

1,598 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1E.25	TYMT3025


Engine Manufacturer	Iseki	TYM
Engine Model	Not Published	T1700N6
Engine Type	3-cylinder diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	90.9 in³	104.5 in³
Rated Engine Speed	2600 rpm	2100 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Mech: 20.4 hp; HST: 19.2 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Not Published
Air Cleaner	Not Published	Dry element
Fuel System	Not Published	IDI (indirect injection)
Alternator	Not Published	50 A, 12 V

Pump Type	Two gear-type pumps	Dual gear pump
Implement Flow	7.3 gpm	7.5 gpm
Steering Flow	3.6 gpm	4.0 gpm
Total Hydraulic Flow	10.9 gpm (7.3 + 3.6, computed)	11.5 gpm
Overall Hydraulic Pump Flow	10.9 gpm (7.3 + 3.6, computed)	11.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Loader: 4 / Rear: 0
No. of Optional Remote Valves	Not Published	Up to 4

Fuel Tank Capacity	10 gal	8.7 gal
Coolant Capacity	Not Published	5.3 qt
Crankcase Capacity	Not Published	4.5 qt
Transmission / Hydraulic System Capacity	Not Published	T3025R: 8.9 gal; T3025H: 9.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt

PTO Type	Mech: Independent; HST: Transmission	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	3,307 lb
Hitch Lift Capacity (at 24”)	1,598 lb	2,425 lb
Lift Control Type	Not Published	Position control

Transmission Type	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic	T3025R: Synchromesh; T3025H: HST
No. of Speeds	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic	T3025R: F12 x R12; T3025H: 3-Range
Max Travel Speed (Forward)	Not Published	T3025R: 11.7 mph; T3025H: 16.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	T3025R: Dry single plate; T3025H: N/A
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	52.4 in	56.3 in
Wheelbase	Not Published	65.7 in
Ground Clearance	11 in	14.4 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	97.6 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	116.5 in	121 in (with 3-point hitch)

Tractor Weight (Base)	2,668 lb	2,970 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	12.4-24
R3 Turf - Front	Not Published	27x8.5-15
R3 Turf - Rear	Not Published	41x14.00
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	420/70-24

Quick Attach Loader System	Skid steer quick attach	Not Published
Loader Model	FL2407X	Not Published
Loader Lift Height	FL2407X: 94.3 in (at pivot pin)	Not Published
Loader Lift Capacity (Full Height)	FL2407X: 1,450 lb (to maximum height, at pivot pin)	Not Published
Loader Breakout Force	FL2407X: 2,288 lb (at pivot pin)	Not Published

Warranty Length & Coverage	Not Published	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months

Find a dealer near you Find a TYM dealer near you

Massey Ferguson MF 1E.25 vs TYM T3025: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1E.25 or the TYM T3025?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson MF 1E.25 or the TYM T3025?

The TYM T3025 leads on pto hp at 21 hp hp, compared to 20.4 hp hp for the Massey Ferguson MF 1E.25.

Which is heavier, the Massey Ferguson MF 1E.25 or the TYM T3025?

The TYM T3025 leads on weight at 2,970 lb lb, compared to 2,668 lb lb for the Massey Ferguson MF 1E.25.

Which has more three-point hitch lift capacity, the Massey Ferguson MF 1E.25 or the TYM T3025?

The TYM T3025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.25.
