Bad Boy Tractors 1025 vs TYM T3025

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the TYM T3025 leads 5 categories to 1. Machine pages: Bad Boy Tractors 1025 and TYM T3025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1025	TYM T3025
Engine HP (hp)	▲ 24.6 hp	24 hp
PTO HP (hp)	18.8 hp	▲ 21 hp
Weight (lb)	1,610 lb	▲ 2,969.6 lb
Loader Lift (lb)	992 lb	n/a
3-Pt Lift (24 in) (lb)	1,101 lb	▲ 2,425 lb
Lift Height (in)	75.5 in	n/a
Breakout Force (lbf)	1,531 lbf	n/a
Hydraulic Flow (gpm)	7 gpm	▲ 11.5 gpm
Travel Speed (mph)	10.5 mph	▲ 16.7 mph

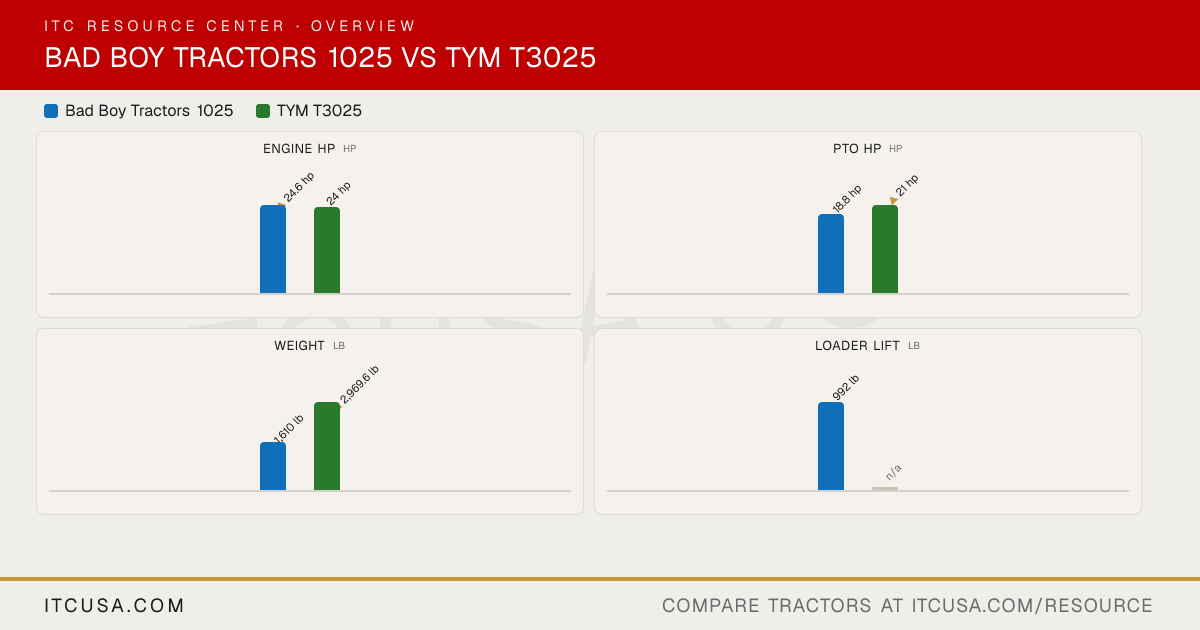

The headline numbers at a glance.

Bad Boy Tractors 1025TYM T3025

Engine HPhp

▲24.6 hp

24 hp

PTO HPhp

18.8 hp

▲21 hp

Weightlb

1,610 lb

▲2,969.6 lb

Loader Liftlb

992 lb

n/a

3-Pt Lift (24 in)lb

1,101 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	TYMT3025


Engine Manufacturer	Yanmar	TYM
Engine Model	3TNV80F	T1700N6
Engine Type	Water-cooled, 4-cycle diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	104.5 in³
Rated Engine Speed	3000 rpm	2100 rpm
Engine Power (Gross)	24.6 hp	24 hp
PTO Power	18.8 hp	21 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled, forced circulation	Not Published
Air Cleaner	Single element, dry	Dry element
Fuel System	Indirect injection	IDI (indirect injection)
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Gear pump	Dual gear pump
Implement Flow	4.2 gpm	7.5 gpm
Steering Flow	2.8 gpm	4.0 gpm
Total Hydraulic Flow	7.0 gpm	11.5 gpm
Overall Hydraulic Pump Flow	6.95 gpm	11.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Loader: 4 / Rear: 0
No. of Optional Remote Valves	Not Published	Up to 4

Fuel Tank Capacity	5.8 gal	8.7 gal
Coolant Capacity	0.95 gal	5.3 qt
Crankcase Capacity	0.71 gal	4.5 qt
Transmission / Hydraulic System Capacity	3.83 gal	T3025R: 8.9 gal; T3025H: 9.8 gal
Front Axle Fluid Capacity	0.85 gal	6.8 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I (N)	Category I
Hitch Lift Capacity	1,323 lb	3,307 lb
Hitch Lift Capacity (at 24”)	1,101 lb	2,425 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	T3025R: Synchromesh; T3025H: HST
No. of Speeds	2 range (H/L)	T3025R: F12 x R12; T3025H: 3-Range
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	T3025R: 11.7 mph; T3025H: 16.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	T3025R: Dry single plate; T3025H: None (HST)
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Not Published

Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc, foot operated	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	104 in	121 in
Overall Width	45.8 in	56.3 in
Wheelbase	57.5 in	65.7 in
Ground Clearance	9.4 in	14.4 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	91.3 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,610 lb	2,969.6 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5
R1 Agricultural - Front	6-12	8-16
R1 Agricultural - Rear	9.5-16	12.4-24
R3 Turf - Front	20x8-10	27x8.5-15
R3 Turf - Rear	29x12.5-15	41x14.00
R4 Industrial - Front	23x8.5-12	10-16.5
R4 Industrial - Rear	12-16.5	420/70-24

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL105	Not Published
Loader Lift Height	75.5 in	Not Published
Loader Lift Capacity (Full Height)	992 lb	Not Published
Loader Breakout Force	1,531 lbf	Not Published

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1025 vs TYM T3025: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the TYM T3025?: The Bad Boy Tractors 1025 leads on engine hp at 24.6 hp hp, compared to 24 hp hp for the TYM T3025.
Which has more PTO horsepower, the Bad Boy Tractors 1025 or the TYM T3025?: The TYM T3025 leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the Bad Boy Tractors 1025.
Which is heavier, the Bad Boy Tractors 1025 or the TYM T3025?: The TYM T3025 leads on weight at 2,969.6 lb lb, compared to 1,610 lb lb for the Bad Boy Tractors 1025.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the TYM T3025?: The TYM T3025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1025	TYM T3025
Engine HP (hp)	▲ 24.6 hp	24 hp
PTO HP (hp)	18.8 hp	▲ 21 hp
Weight (lb)	1,610 lb	▲ 2,969.6 lb
Loader Lift (lb)	992 lb	n/a
3-Pt Lift (24 in) (lb)	1,101 lb	▲ 2,425 lb
Lift Height (in)	75.5 in	n/a
Breakout Force (lbf)	1,531 lbf	n/a
Hydraulic Flow (gpm)	7 gpm	▲ 11.5 gpm
Travel Speed (mph)	10.5 mph	▲ 16.7 mph

The headline numbers at a glance.

Bad Boy Tractors 1025TYM T3025

Engine HPhp

▲24.6 hp

24 hp

PTO HPhp

18.8 hp

▲21 hp

Weightlb

1,610 lb

▲2,969.6 lb

Loader Liftlb

992 lb

n/a

3-Pt Lift (24 in)lb

1,101 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	TYMT3025


Engine Manufacturer	Yanmar	TYM
Engine Model	3TNV80F	T1700N6
Engine Type	Water-cooled, 4-cycle diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	104.5 in³
Rated Engine Speed	3000 rpm	2100 rpm
Engine Power (Gross)	24.6 hp	24 hp
PTO Power	18.8 hp	21 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled, forced circulation	Not Published
Air Cleaner	Single element, dry	Dry element
Fuel System	Indirect injection	IDI (indirect injection)
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Gear pump	Dual gear pump
Implement Flow	4.2 gpm	7.5 gpm
Steering Flow	2.8 gpm	4.0 gpm
Total Hydraulic Flow	7.0 gpm	11.5 gpm
Overall Hydraulic Pump Flow	6.95 gpm	11.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Loader: 4 / Rear: 0
No. of Optional Remote Valves	Not Published	Up to 4

Fuel Tank Capacity	5.8 gal	8.7 gal
Coolant Capacity	0.95 gal	5.3 qt
Crankcase Capacity	0.71 gal	4.5 qt
Transmission / Hydraulic System Capacity	3.83 gal	T3025R: 8.9 gal; T3025H: 9.8 gal
Front Axle Fluid Capacity	0.85 gal	6.8 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I (N)	Category I
Hitch Lift Capacity	1,323 lb	3,307 lb
Hitch Lift Capacity (at 24”)	1,101 lb	2,425 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	T3025R: Synchromesh; T3025H: HST
No. of Speeds	2 range (H/L)	T3025R: F12 x R12; T3025H: 3-Range
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	T3025R: 11.7 mph; T3025H: 16.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	T3025R: Dry single plate; T3025H: None (HST)
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Not Published

Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc, foot operated	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	104 in	121 in
Overall Width	45.8 in	56.3 in
Wheelbase	57.5 in	65.7 in
Ground Clearance	9.4 in	14.4 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	91.3 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,610 lb	2,969.6 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5
R1 Agricultural - Front	6-12	8-16
R1 Agricultural - Rear	9.5-16	12.4-24
R3 Turf - Front	20x8-10	27x8.5-15
R3 Turf - Rear	29x12.5-15	41x14.00
R4 Industrial - Front	23x8.5-12	10-16.5
R4 Industrial - Rear	12-16.5	420/70-24

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL105	Not Published
Loader Lift Height	75.5 in	Not Published
Loader Lift Capacity (Full Height)	992 lb	Not Published
Loader Breakout Force	1,531 lbf	Not Published

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1025 vs TYM T3025: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the TYM T3025?

The Bad Boy Tractors 1025 leads on engine hp at 24.6 hp hp, compared to 24 hp hp for the TYM T3025.

Which has more PTO horsepower, the Bad Boy Tractors 1025 or the TYM T3025?

The TYM T3025 leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the Bad Boy Tractors 1025.

Which is heavier, the Bad Boy Tractors 1025 or the TYM T3025?

The TYM T3025 leads on weight at 2,969.6 lb lb, compared to 1,610 lb lb for the Bad Boy Tractors 1025.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the TYM T3025?

The TYM T3025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025.
