Bad Boy Tractors 3026 vs TYM T3025

Across 6 measurable specs, the TYM T3025 leads 5 categories to 0 (1 tied). Machine pages: Bad Boy Tractors 3026 and TYM T3025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

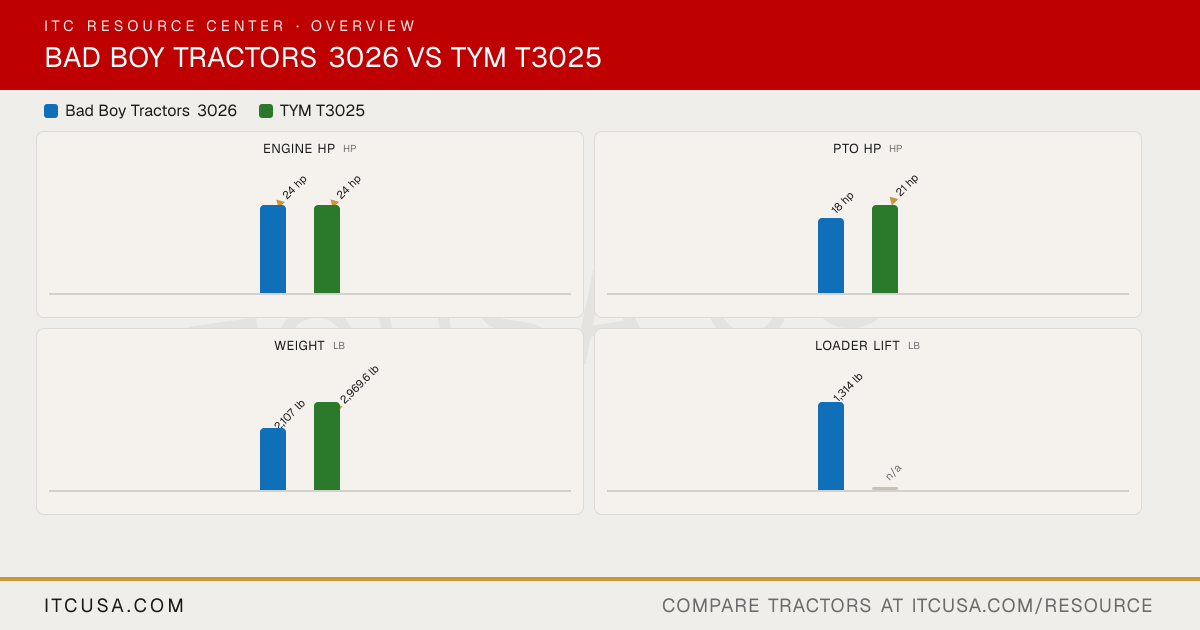

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	TYMT3025

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	A1100N2	T1700N6
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	70.7 in³	104.5 in³
Rated Engine Speed	2600 rpm	2100 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	18 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Dry element
Fuel System	Indirect injection (swirl chamber)	IDI (indirect injection)
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Dual gear pump
Implement Flow	4.3 gpm	7.5 gpm
Steering Flow	3.1 gpm	4.0 gpm
Total Hydraulic Flow	7.4 gpm	11.5 gpm
Overall Hydraulic Pump Flow	7.7 gpm	11.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Loader: 4 / Rear: 0
No. of Optional Remote Valves	1	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	8.7 gal
Coolant Capacity	1.21 gal	5.3 qt
Crankcase Capacity	0.79 gal	4.5 qt
Transmission / Hydraulic System Capacity	2.90 gal	T3025R: 8.9 gal; T3025H: 9.8 gal
Front Axle Fluid Capacity	0.79 gal	6.8 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	3,307 lb
Hitch Lift Capacity (at 24”)	974 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	T3025R: Synchromesh; T3025H: HST
No. of Speeds	3 range (L/M/H)	T3025R: F12 x R12; T3025H: 3-Range
Max Travel Speed (Forward)	14.8 mph	T3025R: 11.7 mph; T3025H: 16.7 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	T3025R: Dry single plate; T3025H: None (HST)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	121 in
Overall Width	53.9 in	56.3 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	16.4 in	14.4 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	91.4 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	2,969.6 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5
R1 Agricultural - Front	7-16 6PR	8-16
R1 Agricultural - Rear	11.2-20	12.4-24
R3 Turf - Front	Not Published	27x8.5-15
R3 Turf - Rear	Not Published	41x14.00
R4 Industrial - Front	25x8.50-14	10-16.5
R4 Industrial - Rear	14-17.5	420/70-24
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	Not Published
Loader Lift Height	87.5 in	Not Published
Loader Lift Capacity (Full Height)	1,314 lb	Not Published
Loader Breakout Force	1,960 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a TYM dealer near you→

Bad Boy Tractors 3026 vs TYM T3025: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the TYM T3025?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the TYM T3025?

The TYM T3025 leads on pto hp at 21 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the TYM T3025?

The TYM T3025 leads on weight at 2,969.6 lb lb, compared to 2,107 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the TYM T3025?

The TYM T3025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
