Bad Boy Tractors 4025 vs TYM T3025

Across 5 measurable specs, this matchup is a dead heat: 1 categories to the Bad Boy Tractors 4025, 1 to the TYM T3025, 3 tied. Machine pages: Bad Boy Tractors 4025 and TYM T3025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

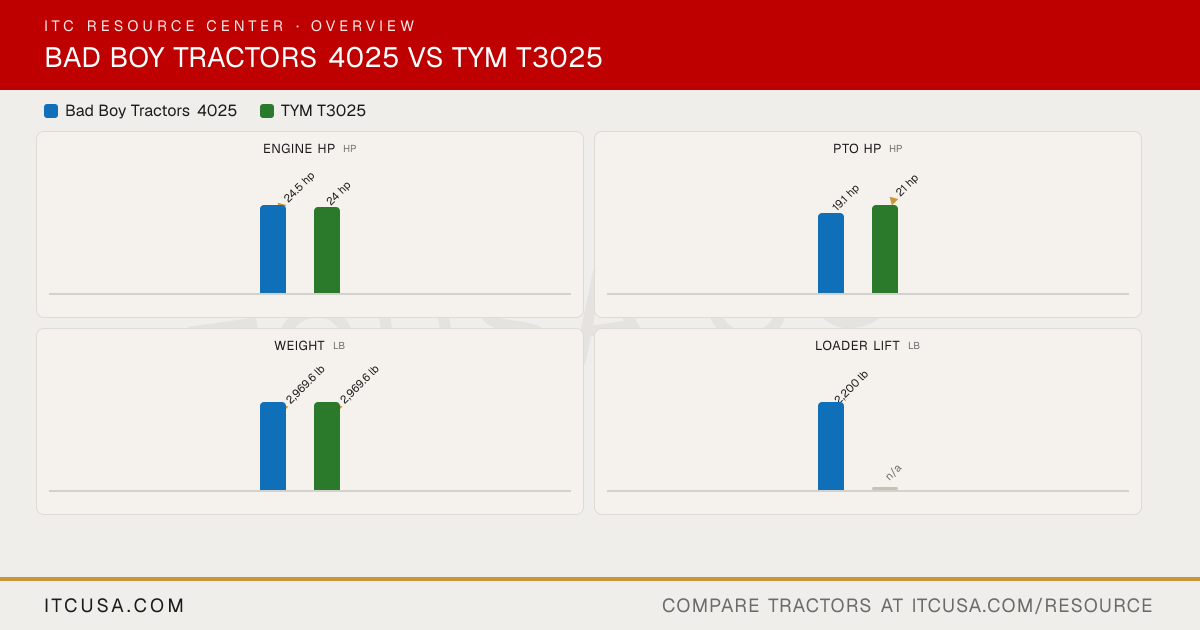

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	TYMT3025

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	A1700N6-BUTR_3	T1700N6
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.7 in³	104.5 in³
Rated Engine Speed	2100 rpm	2100 rpm
Engine Power (Gross)	24.5 hp	24 hp
PTO Power	19.1 hp	21 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry	Dry element
Fuel System	Not Published	IDI (indirect injection)
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Dual gear pump
Implement Flow	7.5 gpm	7.5 gpm
Steering Flow	4 gpm	4.0 gpm
Total Hydraulic Flow	11.5 gpm	11.5 gpm
Overall Hydraulic Pump Flow	11.5 gpm	11.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Loader: 4 / Rear: 0
No. of Optional Remote Valves	2	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	8.7 gal
Coolant Capacity	1.32 gal	5.3 qt
Crankcase Capacity	1.14 gal	4.5 qt
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	T3025R: 8.9 gal; T3025H: 9.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	3,307 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	T3025R: Synchromesh; T3025H: HST
No. of Speeds	3 range (A/B/C)	T3025R: F12 x R12; T3025H: 3-Range
Max Travel Speed (Forward)	Not Published	T3025R: 11.7 mph; T3025H: 16.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	T3025R: Dry single plate; T3025H: None (HST)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	121 in
Overall Width	56.7 in	56.3 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	15 in	14.4 in
Min. Turn Radius without Brakes	Not Published	105.5 in
Height to Top of ROPS	96.85 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	2,969.6 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5
R1 Agricultural - Front	8.0-16	8-16
R1 Agricultural - Rear	12.4-24	12.4-24
R3 Turf - Front	Not Published	27x8.5-15
R3 Turf - Rear	Not Published	41x14.00
R4 Industrial - Front	25x8.50-14	10-16.5
R4 Industrial - Rear	15-19.5	420/70-24
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	Not Published
Loader Lift Height	104 in	Not Published
Loader Lift Capacity (Full Height)	2,200 lb	Not Published
Loader Breakout Force	3,660 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a TYM dealer near you→

Bad Boy Tractors 4025 vs TYM T3025: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the TYM T3025?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 24 hp hp for the TYM T3025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the TYM T3025?

The TYM T3025 leads on pto hp at 21 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the TYM T3025?

They are effectively tied: both machines are rated at 2,969.6 lb lb for weight.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the TYM T3025?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
