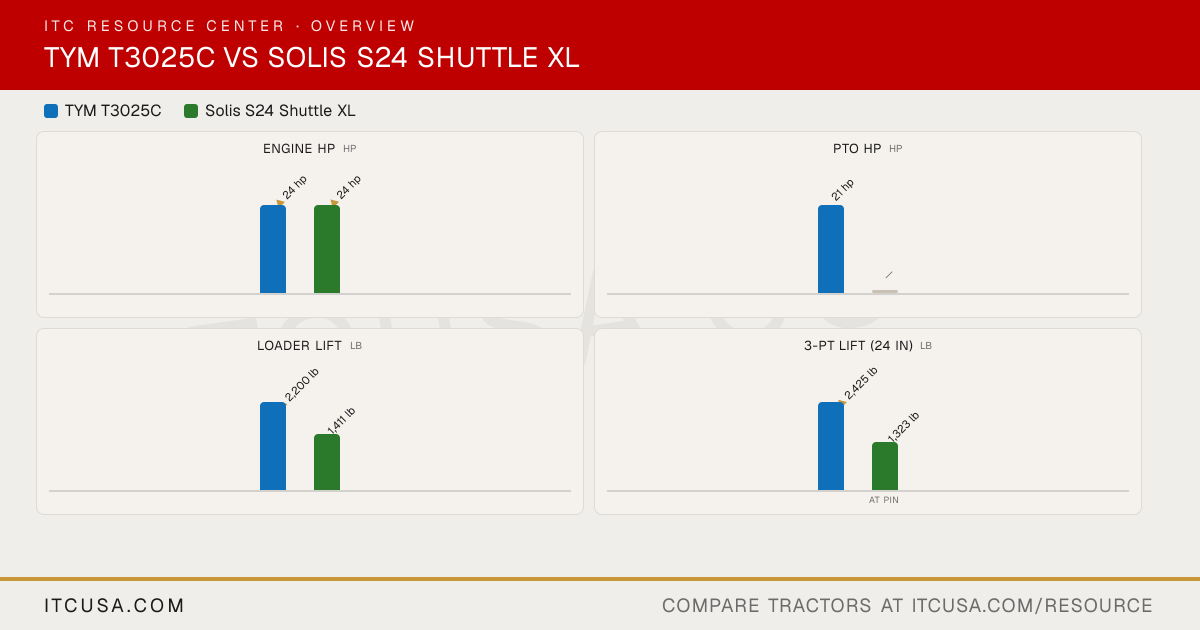

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT3025C
SolisS24 Shuttle XL
PTO Power
21 hp
Not Published
Alternator
70 A, 12 V
Not Published
Air Cleaner
Dry element
Not Published
Engine Type
3-cylinder, naturally aspirated diesel
Natural Aspiration
Fuel System
IDI
Not Published
Displacement
104.6 in³
80.4 in³
No. of Cylinders
3
3
Rated Engine Speed
2100 rpm
2500 rpm
Cooling System Type
Not Published
Not Published
Engine Manufacturer
TYM
Mitsubishi
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
Not Applicable
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
3-year warranty; 7-year limited powertrain
Pump Type
Dual gear pump
Not Published
Steering Flow
4.2 gpm
Not Published
Implement Flow
7.7 gpm
Not Published
Total Hydraulic Flow
11.9 gpm
6.5 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.9 gpm
Not Published
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
Loader: 4; Rear: 0
1
PTO Rear
540 rpm
540/540E rpm
PTO Type
Independent
Mechanical
Lift Control Type
Position control
Not Published
Hitch Lift Capacity
3,306 lb
1,323 lb
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
CAT-1N
Hitch Lift Capacity (at 24”)
2,425 lb
Not Published
R3 Turf - Rear
Not Applicable
33x15.5-16.5; 13.6x16
R3 Turf - Front
Not Applicable
23x8.50-12; 25x8.50-14
Tire Size & Options
R1 Agricultural, Golf Tires, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
380/70-19.5, 6PR
33x15.5-16.5
R4 Industrial - Front
Not Published
23x8.50-12
R1 Agricultural - Rear
11.2-24, 8PR
8.3x20; 8.3x24; 280/70 R18
R1 Agricultural - Front
7-16, 6PR
6x12; 7x14; 6.5/80-12
Coolant Capacity
5.3 qt
Not Published
Crankcase Capacity
4.5 qt
Not Published
Fuel Tank Capacity
7.1 gal
5.8 gal
Front Axle Fluid Capacity
6.8 qt
Not Published
Transmission / Hydraulic System Capacity
9.8 gal
Not Published
Loader Lift Height
104.9 in
85 in
Loader Breakout Force
3,422 lb
1,146 lb
Quick Attach Loader System
L3048: Quick attach mechanism
XB24 (MSL)
Loader Lift Capacity (Full Height)
2,200 lb
1,411 lb
Clutch
Not Applicable
Not Published
No. of Speeds
3-range
9F+9R
Transmission Type
Hydrostatic (HST)
Constant Mesh with Synchromesh Shuttle transmission
Max Travel Speed (Forward)
14.6 mph
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source
