Which has more horsepower, the Solis S24 Shuttle XL or the TYM T3025C?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more loader lift capacity, the Solis S24 Shuttle XL or the TYM T3025C?

The TYM T3025C leads on loader lift at 2,200 lb lb, compared to 1,411 lb lb for the Solis S24 Shuttle XL.

Which has more three-point hitch lift capacity, the Solis S24 Shuttle XL or the TYM T3025C?

The TYM T3025C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,323 lb lb for the Solis S24 Shuttle XL.

Solis S24 Shuttle XL vs TYM T3025C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the TYM T3025C leads 5 categories to 0 (1 tied). Machine pages: Solis S24 Shuttle XL and TYM T3025C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Solis S24 Shuttle XL	TYM T3025C
Engine HP (hp)	24 hp	24 hp
PTO HP (hp)	—	21 hp
Loader Lift (lb)	1,411 lb	▲ 2,200 lb
3-Pt Lift (24 in) (lb)	1,323 lb	▲ 2,425 lb
Lift Height (in)	85 in	▲ 104.9 in
Breakout Force (lbf)	1,146 lbf	▲ 3,422 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 11.9 gpm
Travel Speed (mph)	—	14.6 mph

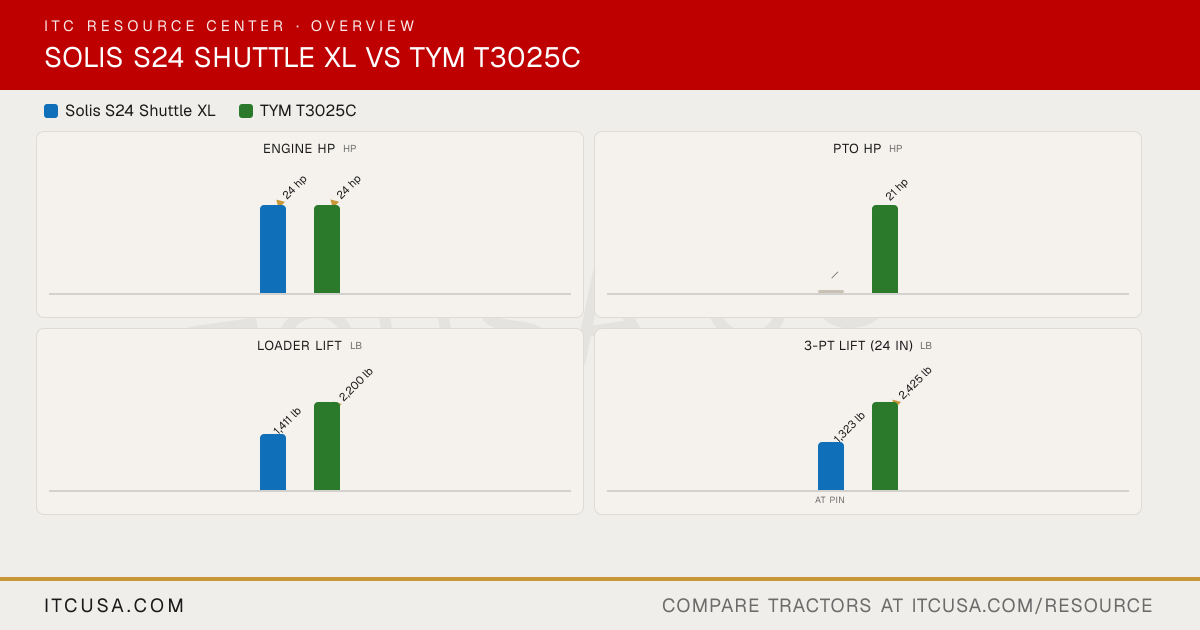

The headline numbers at a glance.

Solis S24 Shuttle XLTYM T3025C

Engine HPhp

▲24 hp

PTO HPhp

—

21 hp

Weightlb

—

Loader Liftlb

1,411 lb

▲2,200 lb

3-Pt Lift (24 in)lb

1,323 lb

▲2,425 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisS24 Shuttle XL	TYMT3025C


PTO Power	Not Published	21 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	Natural Aspiration	3-cylinder, naturally aspirated diesel
Fuel System	Not Published	IDI
Displacement	80.4 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2100 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Mitsubishi	TYM
Engine Power (Gross)	24 hp	24 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	3-year warranty; 7-year limited powertrain	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	Not Published	4.2 gpm
Implement Flow	Not Published	7.7 gpm
Total Hydraulic Flow	6.5 gpm	11.9 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	1	Loader: 4; Rear: 0

PTO Rear	540/540E rpm	540 rpm
PTO Type	Mechanical	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1,323 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT-1N	Category I
Hitch Lift Capacity (at 24”)	Not Published	2,425 lb

R3 Turf - Rear	33x15.5-16.5; 13.6x16	Not Applicable
R3 Turf - Front	23x8.50-12; 25x8.50-14	Not Applicable
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, Golf Tires, R4 Industrial
R4 Industrial - Rear	33x15.5-16.5	380/70-19.5, 6PR
R4 Industrial - Front	23x8.50-12	Not Published
R1 Agricultural - Rear	8.3x20; 8.3x24; 280/70 R18	11.2-24, 8PR
R1 Agricultural - Front	6x12; 7x14; 6.5/80-12	7-16, 6PR

Coolant Capacity	Not Published	5.3 qt
Crankcase Capacity	Not Published	4.5 qt
Fuel Tank Capacity	5.8 gal	7.1 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
Transmission / Hydraulic System Capacity	Not Published	9.8 gal

Loader Lift Height	85 in	104.9 in
Loader Breakout Force	1,146 lb	3,422 lb
Quick Attach Loader System	XB24 (MSL)	L3048: Quick attach mechanism
Loader Lift Capacity (Full Height)	1,411 lb	2,200 lb

Clutch	Not Published	Not Applicable
No. of Speeds	9F+9R	3-range
Transmission Type	Constant Mesh with Synchromesh Shuttle transmission	Hydrostatic (HST)
Max Travel Speed (Forward)	Not Published	14.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source	Not Published

Brakes	Oil immersed brakes; mechanical, foot operated	Wet, multi-disc
Steering	Power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	61.8 in	65.7 in
Overall Width	47.83 in	55.6 in
Ground Clearance	9.44 in	13.1 in
Height to Top of ROPS	91.53 in	Not Applicable
Height to Top of Cab Model	Not Applicable	89.3 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	L: 105.51 in; R: 104.72 in
Overall Length with 3-Point Hitch	113.98 in	120.9 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Solis S24 Shuttle XL vs TYM T3025C: Quick Answers

Which has more horsepower, the Solis S24 Shuttle XL or the TYM T3025C?: They are effectively tied: both machines are rated at 24 hp hp for engine hp.
Which has more loader lift capacity, the Solis S24 Shuttle XL or the TYM T3025C?: The TYM T3025C leads on loader lift at 2,200 lb lb, compared to 1,411 lb lb for the Solis S24 Shuttle XL.
Which has more three-point hitch lift capacity, the Solis S24 Shuttle XL or the TYM T3025C?: The TYM T3025C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,323 lb lb for the Solis S24 Shuttle XL.
