Across 7 measurable specs, the Bad Boy Tractors 4025 leads 7 categories to 0. Machine pages: Bad Boy Tractors 4025 and Solis S24 Shuttle XL.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 4025 | Solis S24 Shuttle XL |
|---|
| Engine HP (hp) | ▲ 25 hp | 24 hp |
| PTO HP (hp) | 19.1 hp | n/a |
| Weight (lb) | ▲ 2,970 lb | 2,513 lb |
| Loader Lift (lb) | ▲ 2,200 lb | 1,411 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,425 lb | 1,323 lb |
| Lift Height (in) | ▲ 104 in | 85 in |
| Breakout Force (lbf) | ▲ 3,660 lbf | 1,146 lbf |
| Hydraulic Flow (gpm) | ▲ 11.5 gpm | 6.5 gpm |

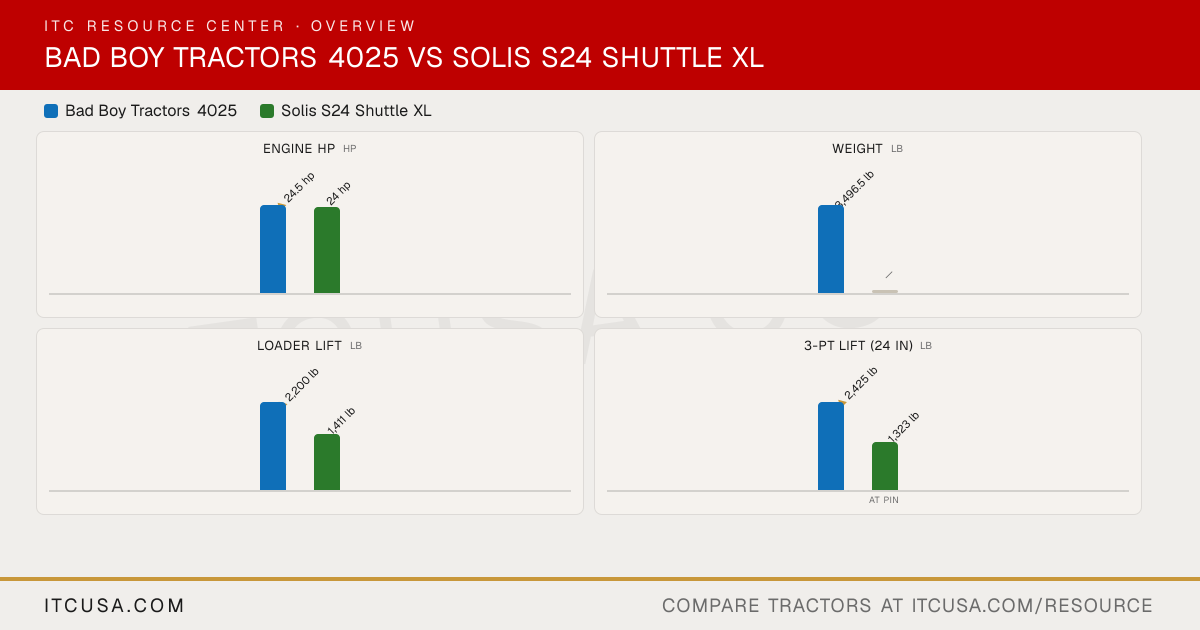

The headline numbers at a glance.
Bad Boy Tractors 4025Solis S24 Shuttle XL
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors4025 | SolisS24 Shuttle XL |
|---|
|
|---|
| Engine Manufacturer | TYM | Mitsubishi |
|---|
| Engine Model | A1700N6-BUTR_3 | S3L2 |
|---|
| Engine Type | Vertical, 4-stroke, water-cooled diesel | 3-cylinder, naturally aspirated diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 104.5 in³ | 80.42 in³ |
|---|
| Rated Engine Speed | 2100 rpm | 2500 rpm |
|---|
| Engine Power (Gross) | 25 hp | 24 hp |
|---|
| PTO Power | 19.1 hp | Not Published |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Dry | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | 50 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev) | Not Published |
|---|
| Implement Flow | 7.5 gpm | Not Published |
|---|
| Steering Flow | 4 gpm | Not Published |
|---|
| Total Hydraulic Flow | 11.5 gpm | 6.5 gpm |
|---|
| Overall Hydraulic Pump Flow | 11.5 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 1 |
|---|
| No. of Optional Remote Valves | Up to 2 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 7.13 gal | 5.8 gal |
|---|
| Coolant Capacity | 1.32 gal | Not Published |
|---|
| Crankcase Capacity | 1.14 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 9.77 gal | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Mechanical |
|---|
| PTO Rear | 540 rpm | 540/540E rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I (CAT-1N) |
|---|
| Hitch Lift Capacity | 3,307 lb | 1,323 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | Not Published |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST) | Constant mesh with synchromesh shuttle transmission |
|---|
| No. of Speeds | 3 range (A/B/C) | 9 forward, 9 reverse |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | None (HST) | Not Published |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock | Differential lock standard |
|---|
|
|---|
| Frame Type | Heavy-duty steel frame with cast iron axles | Not Published |
|---|
| Steering | Fully hydraulic power steering | Power steering |
|---|
| Brakes | Wet multi-disc | Oil immersed brakes, mechanical foot operated |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Selectable 4WD | Four wheel drive (4WD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 56.7 in | 47.83 in |
|---|
| Wheelbase | 65.7 in | 61.8 in |
|---|
| Ground Clearance | 13.1 in | 9.44 in (front axle) |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 104.06 in | 91.53 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
| Overall Length | 134.88 in | 113.98 in |
|---|
|
|---|
| Tractor Weight (Base) | 2,970 lb | 2,513 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R4 Industrial (25x8.50-14 / 15-19.5) | Industrial: 23x8.50-12 & 33x15.5-16.5; Turf 1: 23x8.50-12 & 33x15.5-16.5; Turf 2: 25x8.50-14 & 13.6x16; Agri 1: 6x12 & 8.3x20; Agri 2: 7x14 & 8.3x24; Radial Agri: 6.5/80-12 & 280/70 R18; Galaxy Pro: 220/55 R12 & 280/70 R16 |
|---|
| R1 Agricultural - Front | 8.0-16 | 6x12; 7x14; 6.5/80-12 |
|---|
| R1 Agricultural - Rear | 12.4-24 | 8.3x20; 8.3x24; 280/70R18 |
|---|
| R3 Turf - Front | Not Published | 23x8.50-12; 25x8.50-14 |
|---|
| R3 Turf - Rear | Not Published | 33x15.5-16.5; 13.6x16 |
|---|
| R4 Industrial - Front | 25x8.50-14 | 23x8.50-12 |
|---|
| R4 Industrial - Rear | 15-19.5 | 33x15.5-16.5 |
|---|
|
|---|
| Quick Attach Loader System | Quick attach front loader | Skid steer quick attach |
|---|
| Loader Model | BBL400 | XB24 (MSL) |
|---|
| Loader Lift Height | 104 in | XB24: 85 in (at pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | 2,200 lb (at pivot pin) | XB24: 1,411 lb (at pivot pin) |
|---|
| Loader Breakout Force | 3,660 lbf | XB24: 1,146 lb (at pivot pin, dig position) |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours | 3 year full machine warranty; 7 year powertrain warranty |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bad Boy Tractors 4025 vs Solis S24 Shuttle XL: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 4025 or the Solis S24 Shuttle XL?
- The Bad Boy Tractors 4025 leads on engine hp at 25 hp hp, compared to 24 hp hp for the Solis S24 Shuttle XL.
- Which is heavier, the Bad Boy Tractors 4025 or the Solis S24 Shuttle XL?
- The Bad Boy Tractors 4025 leads on weight at 2,970 lb lb, compared to 2,513 lb lb for the Solis S24 Shuttle XL.
- Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Solis S24 Shuttle XL?
- The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,411 lb lb for the Solis S24 Shuttle XL.
- Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Solis S24 Shuttle XL?
- The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,323 lb lb for the Solis S24 Shuttle XL.
